Power Steering Oil Pump Removal/Installation [MZR 2.5]

1. Set the front mudguard (RH) out of the way. (See FRONT MUDGUARD REMOVAL/INSTALLATION .)
2. Remove the splash shield (RH).
3. Remove the aerodynamic under cover No. 2. (See AERODYNAMIC UNDER COVER NO. 2 REMOVAL/INSTALLATION .)
4. Remove the drive belt. (See DRIVE BELT REMOVAL/INSTALLATION [MZR 2.5] .)
5. Remove in the order indicated in the table.
6. Install in the reverse order of removal.

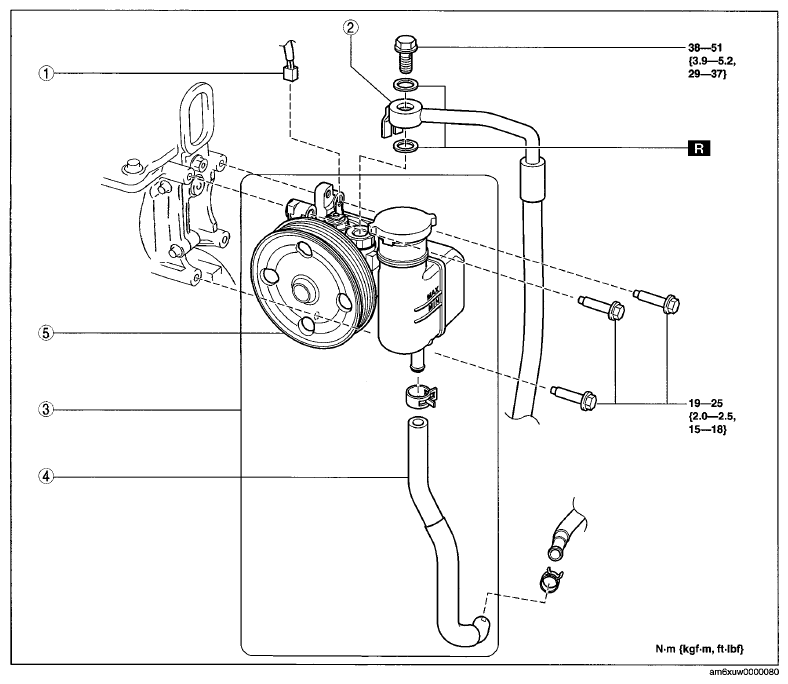

Fig 1: Power Steering Oil Pump Components (MZR 2.5)

Courtesy of MAZDA MOTORS CORP.

PARTS DESCRIPTION CHART

1	Pressure switch connector
2	Pressure hose
3	Power steering oil pump component
4	Return hose
5	Power steering oil pump
