Engine Compartment Side
WARNING: This page is about a different variant/trim than selected.

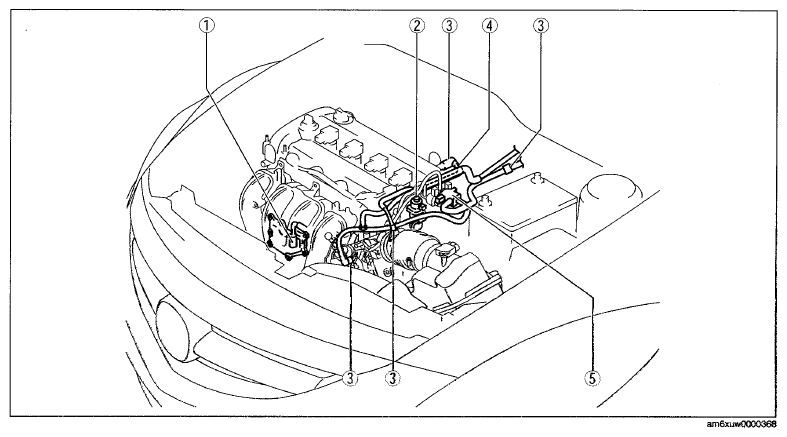

EMISSION SYSTEM REFERENCE CHART
| 1 | PCV valve (See POSITIVE CRANKCASE VENTILATION (PCV) VALVE REMOVAL/INSTALLATION .) (See POSITIVE CRANKCASE VENTILATION (PCV) VALVE INSPECTION .) |
| 2 | EGR valve (See EGR VALVE REMOVAL/INSTALLATION .) (See EGR VALVE INSPECTION .) |
| 3 | Quick release connector (See QUICK RELEASE CONNECTOR (EMISSION SYSTEM) REMOVAL/INSTALLATION .) |
| 4 | Ventilation hose (See QUICK RELEASE CONNECTOR (EMISSION SYSTEM) REMOVAL/INSTALLATION .) |
| 5 | Purge solenoid valve (See PURGE SOLENOID VALVE REMOVAL/INSTALLATION .) (See PURGE SOLENOID VALVE INSPECTION .) |
