Transaxle Range (Tr) Switch Removal/Installation: Notes
WARNING: This page is about a different variant/trim than selected.
CAUTION:
- Water or foreign objects entering the connector can cause a poor connection or corrosion. Be sure not to drop water or foreign objects on the connector when disconnecting it.
- Engage the parking brake and use wheel chocks at the front and rear of the wheels.
- Shift the selector lever to N position.
- Disconnect the negative battery cable.
- Remove the air cleaner component. (See INTAKE-AIR SYSTEM REMOVAL/INSTALLATION .)
- Remove the aerodynamic under cover NO. 2. (See AERODYNAMIC UNDER COVER NO. 2 REMOVAL/INSTALLATION .)
- Remove in the order indicated in the table.
- Install in the reverse order of removal.
- Inspect the TR switch. (See

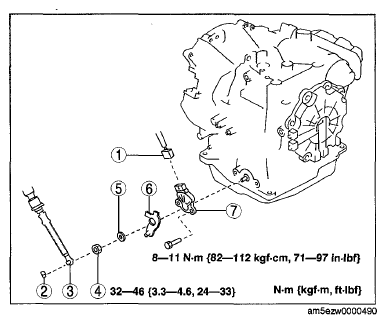

TRANSAXLE RANGE (TR) SWITCH INSPECTOR .)PARTS DESCRIPTION CHART
1 Connector 2 Clip 3 Selector cable 4 Manual shaft nut (See MANUAL SHAFT NUT REMOVAL NOTE .)
(See MANUAL SHAFT NUT INSTALLATION NOTE .)5 Washer 6 Manual shaft lever 7 TR switch (See TR SWITCH INSTALLATION NOTE .)
