Clutch Pedal Removal/Installation: Notes
WARNING: This page is about a different variant/trim than selected.
- Disconnect the negative battery cable. (See BATTERY REMOVAL/INSTALLATION [MZR 2.5] .)
- Remove the battery and battery tray. (See BATTERY REMOVAL/INSTALLATION [MZR 2.5] .)
- Remove the cowl panel. (See COWL PANEL REMOVAL/INSTALLATION .)
- Remove in the order indicated in the table.
- Install in the reverse order of removal.
- Fully depress the clutch pedal, and verify that the engine starts.

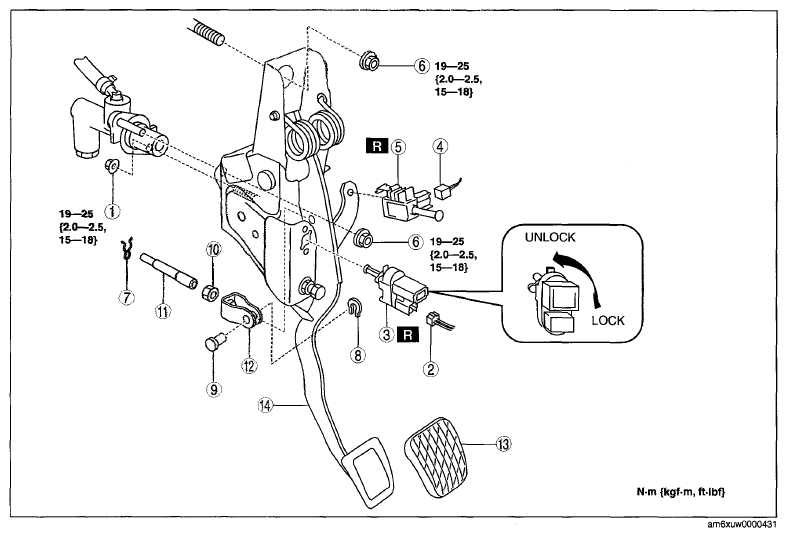

PARTS DESCRIPTION CHART
| 1 | Nut |
| 2 | Clutch pedal position switch connector |
| 3 | Clutch pedal position switch |
| 4 | Starter interlock switch connector |
| 5 | Starter interlock switch (See STARTER INTERLOCK SWITCH INSTALLATION NOTE .) |
| 6 | Nut |
| 7 | Spring |
| 8 | E-clip |
| 9 | Pin |
| 10 | Nut |
| 11 | Push rod |
| 12 | Clevis |
| 13 | Pedal pad |
| 14 | Clutch pedal (See CLUTCH PEDAL INSTALLATION NOTE .) |
