Cowl Panel Removal/Installation

  1. Disconnect the negative battery cable.
  2. Remove the windshield wiper arm. (See WINDSHIELD WIPER ARM AND BLADE REMOVAL/INSTALLATION .)
  3. Remove the front tender molding. (See COWL GRILLE REMOVAL/INSTALLATION .)
  4. Remove the cowl grille. (See COWL GRILLE REMOVAL/INSTALLATION .)
  5. Remove the windshield wiper motor. (See WINDSHIELD WIPER MOTOR REMOVAL/INSTALLATION .)
  6. Remove the washer hose grommet from the cowl panel and disconnect the front washer hose.
  7. Remove the bolts, then remove the stay.

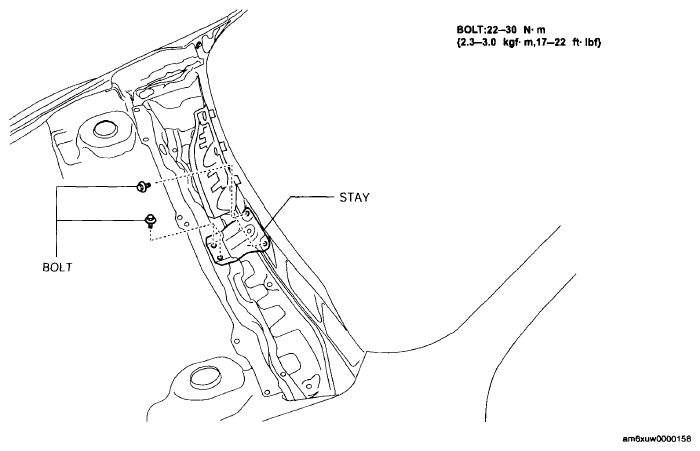

    Fig 1: Stay And Mounting Bolts
    G06200686Courtesy of MAZDA MOTORS CORP.
  8. Remove bolts.

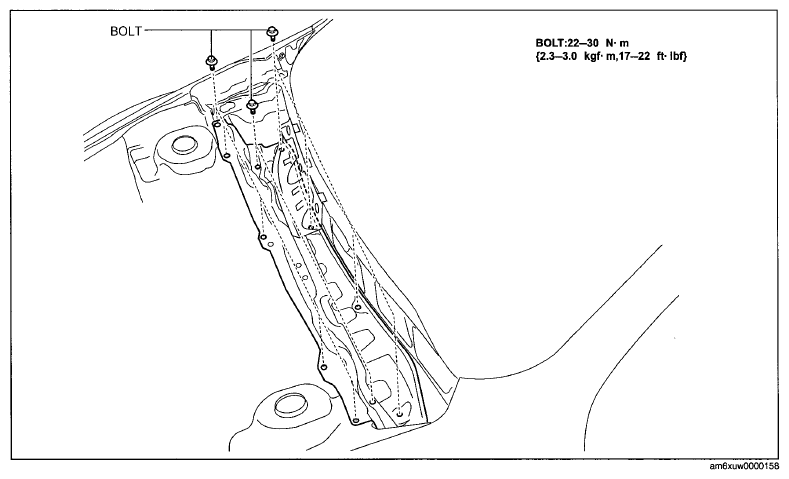

    Fig 2: Stay Bolts
    G07621841Courtesy of MAZDA MOTORS CORP.
  9. Set the center cowl grill out of the way in the direction of the arrow to remove the cowl panel.

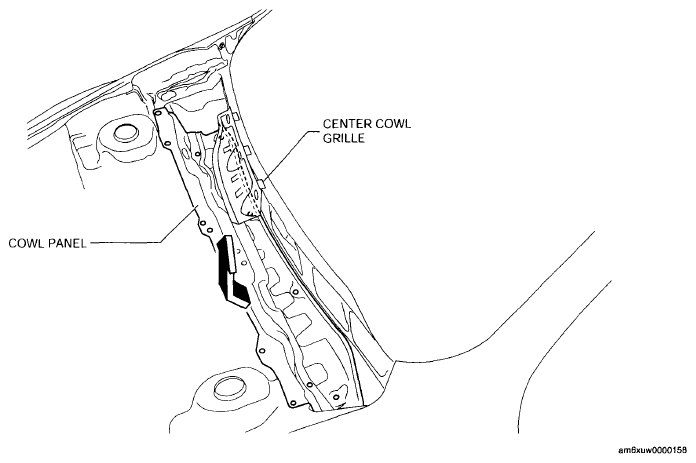

    Fig 3: Removing Cowl Panel
    G06200688Courtesy of MAZDA MOTORS CORP.
  10. Install in the reverse order of removal.
