Generator Removal/Installation [MZR 2.5]: Notes
WARNING: This page is about a different variant/trim than selected.
WARNING:
- Remove and install all parts when the engine is cold, otherwise they can cause severe burns or serious injury.
- When the battery cables are connected, touching the vehicle body with generator terminal B will generate sparks. This can cause personal injury, fire, and damage to the electrical components. Always disconnect the negative battery cable before performing the following operation.
CAUTION:
- The generator can be damaged by the heat from the exhaust manifold. Make sure the generator duct is installed securely.
- Disconnect the negative battery cable.
- Remove the plug hole plate. (See PLUG HOLE PLATE REMOVAL/INSTALLATION [MZR 2.5] .)
- Remove the aerodynamic under cover No. 2. (See AERODYNAMIC UNDER COVER NO. 2 REMOVAL/INSTALLATION .)
- Remove the drive belt. (See DRIVE BELT REMOVAL/INSTALLATION [MZR 2.5] .)
- Remove in the order indicated in the table.
- Install in the reverse order of removal.

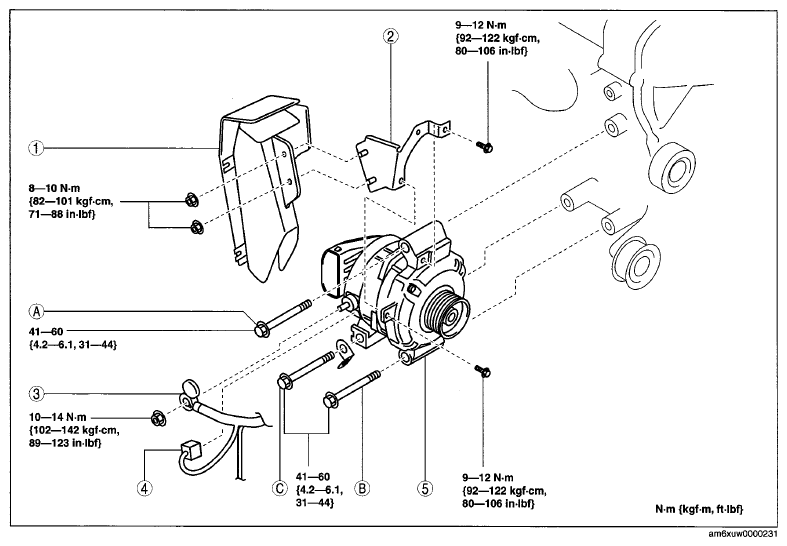

PARTS REFERENCE CHART
| 1 | Generator duct (See GENERATOR DUCT REMOVAL NOTE .) |
| 2 | Generator duct bracket |
| 3 | Terminal B cable |
| 4 | Generator connector |
| 5 | Generator (See GENERATOR REMOVAL NOTE .) (See GENERATOR INSTALLATION NOTE .) |
