Windshield Washer Hose Removal/Installation

  1. Disconnect the negative battery cable.
  2. Remove the front mudguard (RH). (See FRONT MUDGUARD REMOVAL/INSTALLATION .)
  3. Disconnect the windshield washer hose A from the windshield washer motor.
  4. Remove the windshield washer hose A from the clip A, B.
  5. Disconnect the windshield washer hose from the joint pipe A.
  6. Remove the windshield washer hose A.
  7. Remove the joint pipe A.
  8. Remove the windshield wiper arm and blade. (See WINDSHIELD WIPER ARM AND BLADE REMOVAL/INSTALLATION .)
  9. Remove the cowl grille. (See COWL GRILLE REMOVAL/INSTALLATION .)
  10. Disconnect the windshield washer hose B from the check valve.
  11. Remove the windshield washer hose B.
  12. Remove the check valve.
  13. Disconnect windshield washer hose C from the joint pipe B.
  14. Remove the windshield washer hose C.
  15. Remove the joint pipe B.
  16. Disconnect the windshield washer hose E from the windshield washer nozzle (RH).
  17. Remove the windshield washer hose D.

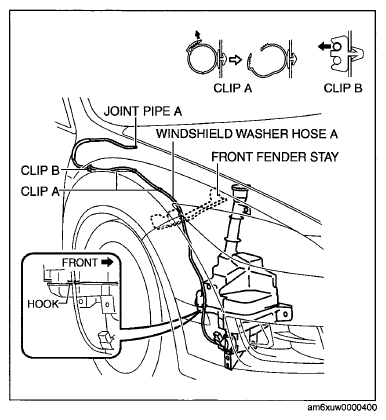

    Fig 1: Windshield Washer Hose A, Front Fender Stay, Joint Pipe A, And Clips
    G07622456Courtesy of MAZDA MOTORS CORP.
  18. Remove the windshield washer hose D from the hook.
  19. Disconnect the windshield washer hose E from the joint pipe C.
  20. Remove the windshield washer hose E.
  21. Remove the joint pipe C.
  22. Remove the windshield washer hose F from the hook.
  23. Disconnect the windshield washer hose F from the windshield washer nozzle (LH).
  24. Remove the windshield washer hose F.

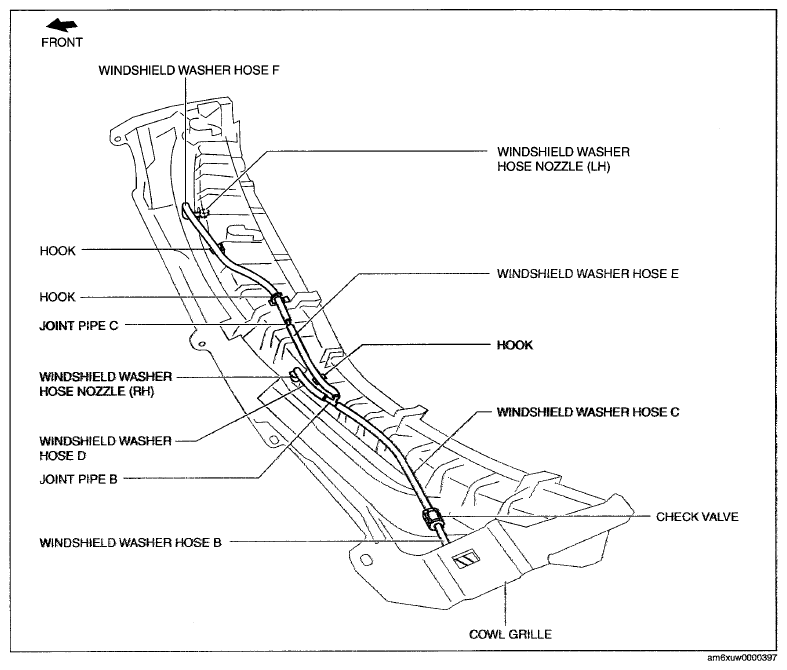

    Fig 2: Windshield Washer Hose Components
    G07622457Courtesy of MAZDA MOTORS CORP.
  25. Install in the reverse order of removal.
