Cowl Grille Removal/Installation

Remove the windshield wiper arm and blade. (See WINDSHIELD WIPER ARM AND BLADE REMOVAL/INSTALLATION .)
Remove the fastener A.

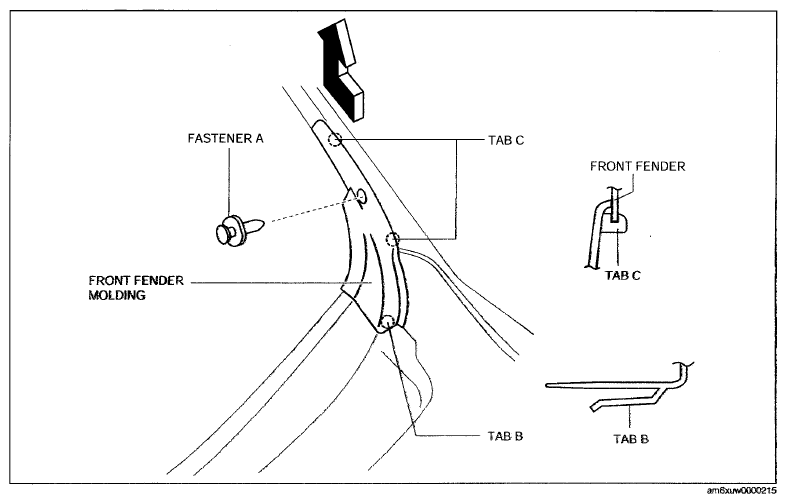

Fig 1: Pulling Front Fender Molding
Courtesy of MAZDA MOTORS CORP.
Pull the front fender molding in the direction of the arrow shown in the illustration and remove it while remove the tab B and tab C.
Disconnect the windshield washer hose from the joint pipe A. (See WINDSHIELD WASHER HOSE REMOVAL/INSTALLATION .)
Remove the fasteners D.

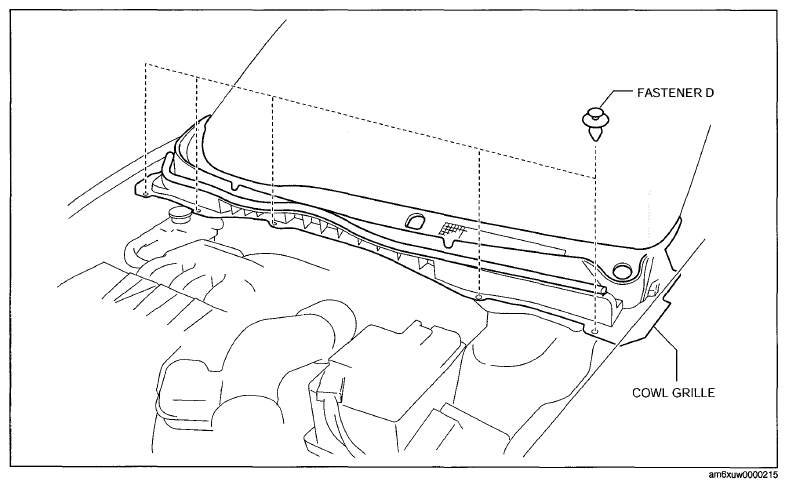

Fig 2: Cowl Grille And Fasteners D
Courtesy of MAZDA MOTORS CORP.
Pull the cowl grille in the direction of arrow (1) so that it is free from the pins E, pull tabs F in the direction of arrow (2).

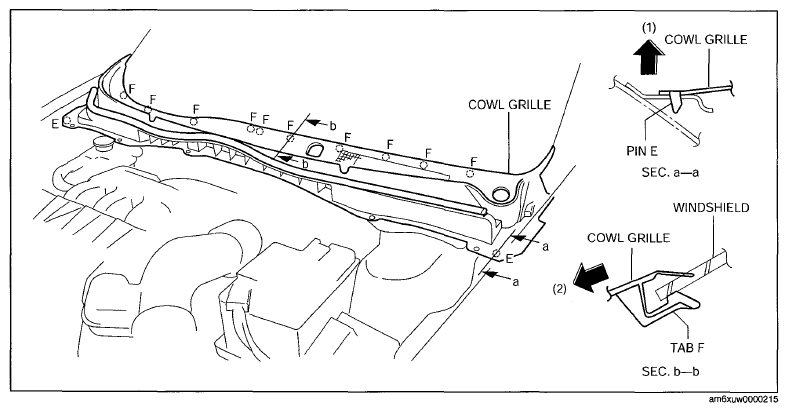

Fig 3: Pulling Cowl Grille
Courtesy of MAZDA MOTORS CORP.
Remove the cowl grille.
Install in the reverse order of removal.
