Front Antenna Feeder Removal/Installation

FRONT ANTENNA FEEDER REMOVAL/INSTALLATION

1. Remove the battery cover. Removal and Replacement

2. Disconnect the negative battery cable.

3. Remove the following parts:
a. Front door Front Door Removal/Installation

b. Sail garnish Service and Repair

c. Front scuff plate inner Front Scuff Plate Removal/Installation

d. Front side trim Front Side Trim Removal/Installation

e. Side panel (passenger's side) Side Panel Removal/Installation

f. Side wall Side Wall Removal/Installation

g. Selector lever knob (ATX) Front Console Removal/Installation

h. Shift lever knob (MTX) Front Console Removal/Installation

i. Center console (Vehicles with rear vent) Center Console Removal/Installation

j. Front console Front Console Removal/Installation

k. Glove compartment Service and Repair

l. Lower panel Lower Panel Removal/Installation

m. Center panel module (vehicles with audio unit) Center Panel Module Removal/Installation

n. Center panel (vehicles without audio unit) Center Panel Removal/Installation

o. Climate control unit Climate Control Unit Removal/Installation - Full-Auto Air Conditioner Climate Control Unit Removal - Manual Air Conditioner Climate Control Unit Installation - Manual Air Conditioner

p. Car-navigation unit (Vehicles with car-navigation system) Service and Repair

q. Selector lever component Service and Repair

r. Meter hood Meter Hood Removal/Installation

s. Lower column cover Service and Repair

t. Driver-side air bag module Driver-Side Air Bag Module Removal/Installation

u. Steering shaft Service and Repair

v. Instrument cluster Removal and Replacement

w. A-pillar trim A-Pillar Trim Removal/Installation

x. Rear heater duct (1) Service and Repair

y. Windshield wiper arm and blade Windshield Wiper Arm and Blade Removal/Installation

z. Cowl grille Cowl Grille Removal/Installation

aa. Center cowl grille Center Cowl Grille Removal/Installation

ab. Dashboard Dashboard Removal/Installation

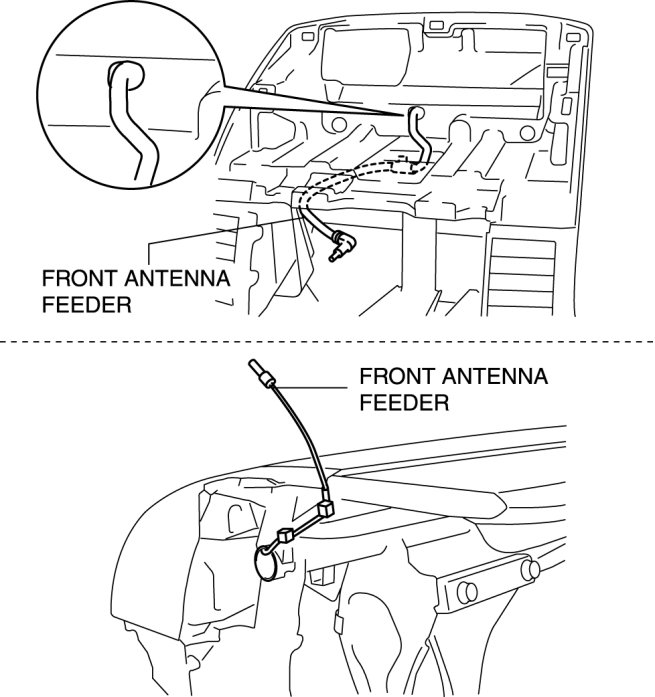

4. Remove the front antenna feeder from the dashboard.






5. Install in the reverse order of removal.
