A/C Manifold And Tube Assembly Removal / Installation - 4.0L

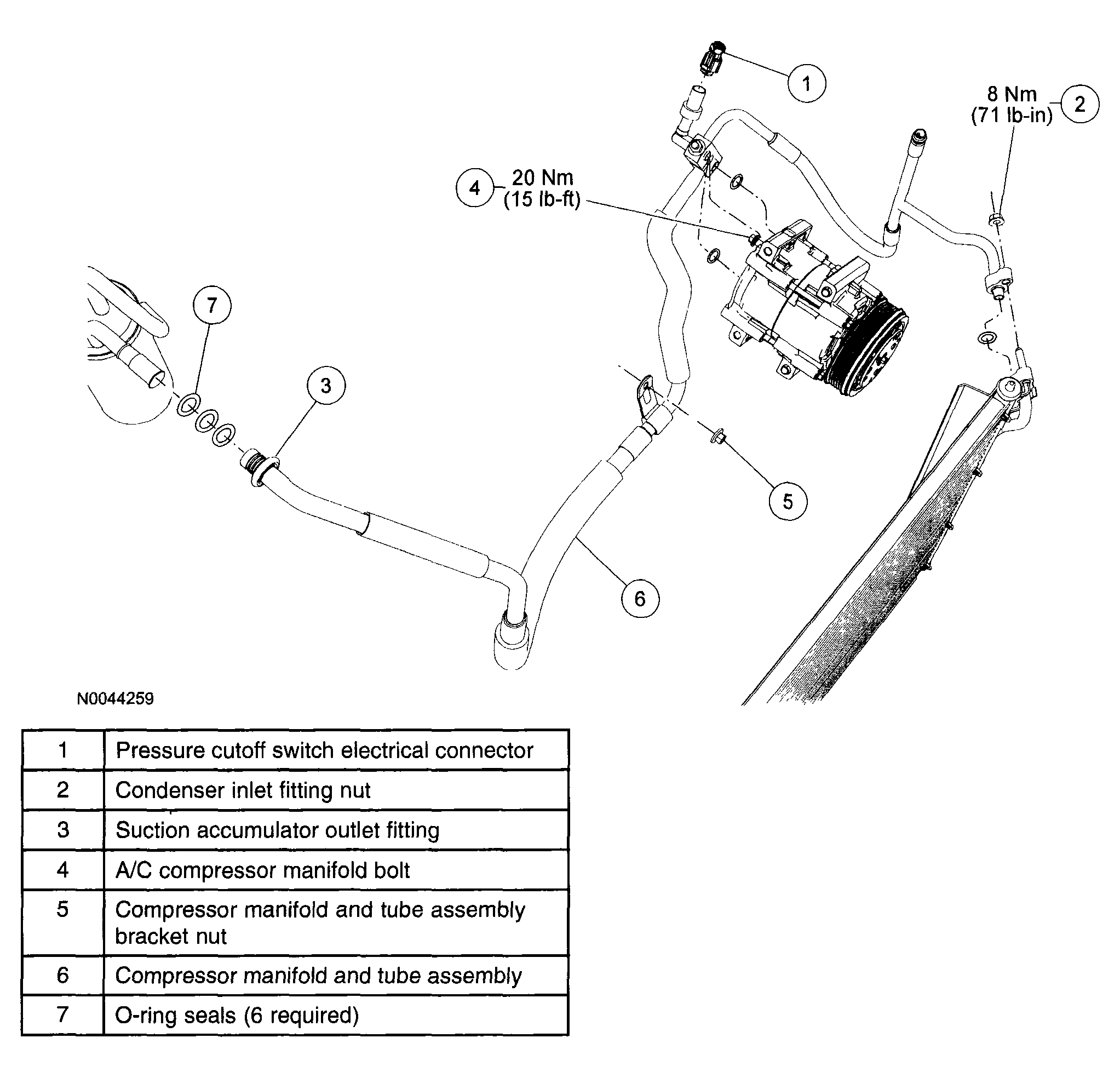

Fig 1: Removing/Installing A/C Manifold And Tube Assembly With Torque Specifications (4.0L)

Courtesy of MAZDA MOTORS CORP.

NOTE:

• Replacement of the suction accumulator is not required when repairing the air conditioning system except when there is physical evidence of system contamination from a failed A/C compressor or damage to the suction accumulator.

1. Recover the refrigerant. See A/C REFRIGERANT SYSTEM TESTS .
2. Remove the air cleaner assembly. See ENGINE AIR CLEANER REMOVAL / INSTALLATION - 4.0L .
3. Remove the A/C compressor. See A/C COMPRESSOR REMOVAL / INSTALLATION - 4.0L  .
4. Disconnect the pressure cut-off switch electrical connector.

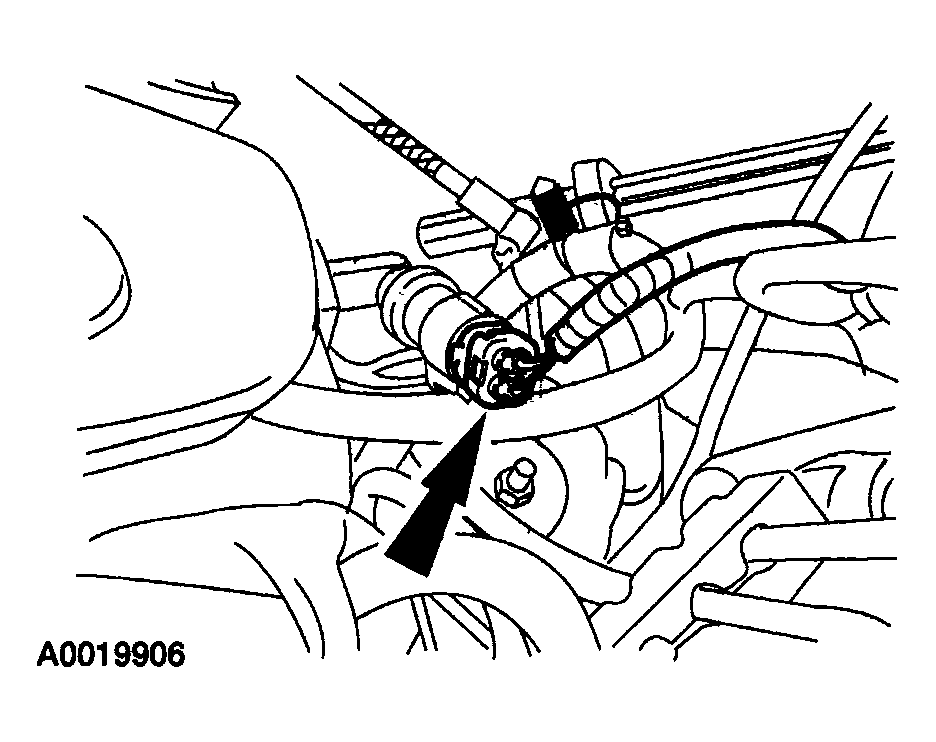

   Fig 2: Disconnecting Pressure Cut-Off Switch Electrical Connector

   Courtesy of MAZDA MOTORS CORP.
5. Disconnect the compressor manifold and tube assembly from the condenser core.
   • Discard the O-ring seal.

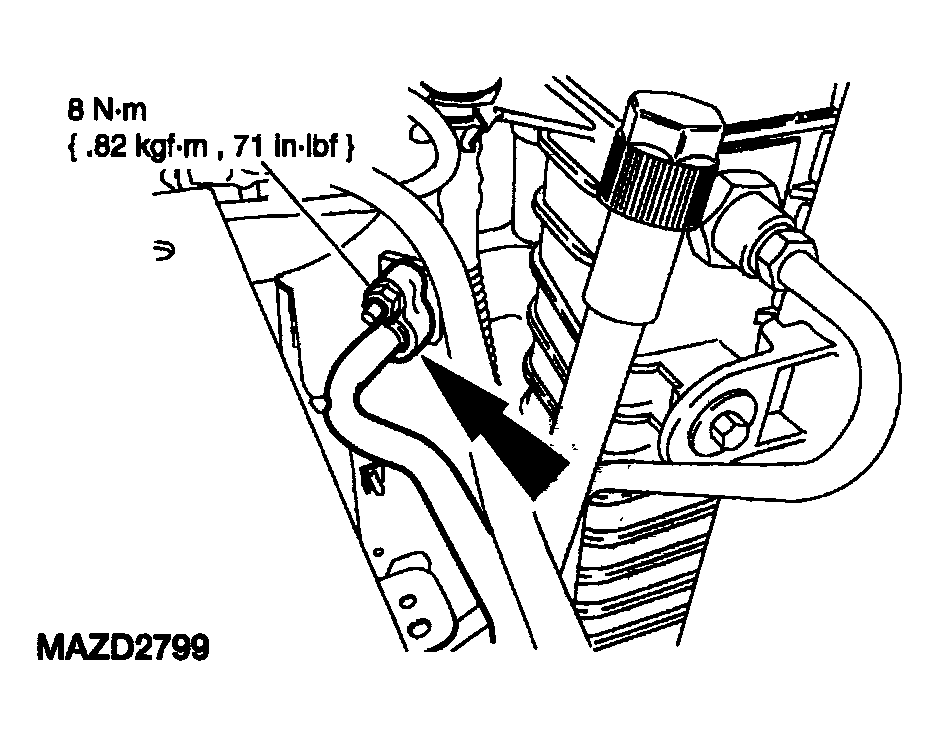

   Fig 3: Removing/Installing Compressor Manifold And Tube Assembly From Condenser Core With Torque Specifications

   Courtesy of MAZDA MOTORS CORP.
6. Disconnect the compressor manifold and tube assembly spring lock coupling from the suction accumulator. See A/C SPRING LOCK COUPLING .
   • Discard the O-ring seal.

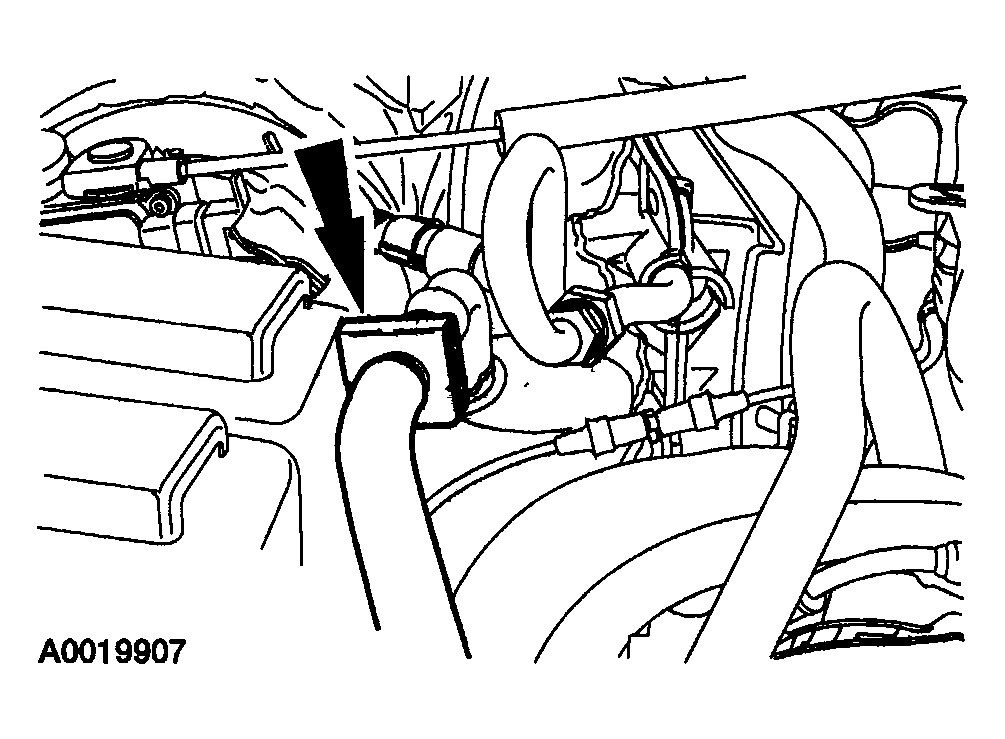

   Fig 4: Disconnecting Compressor Manifold And Tube Assembly Spring Lock Coupling From Suction Accumulator

   Courtesy of MAZDA MOTORS CORP.
7. With the vehicle in NEUTRAL, position it on a hoist. See LIFTING .
8. Remove the bolt and detach the compressor manifold and tube assembly.

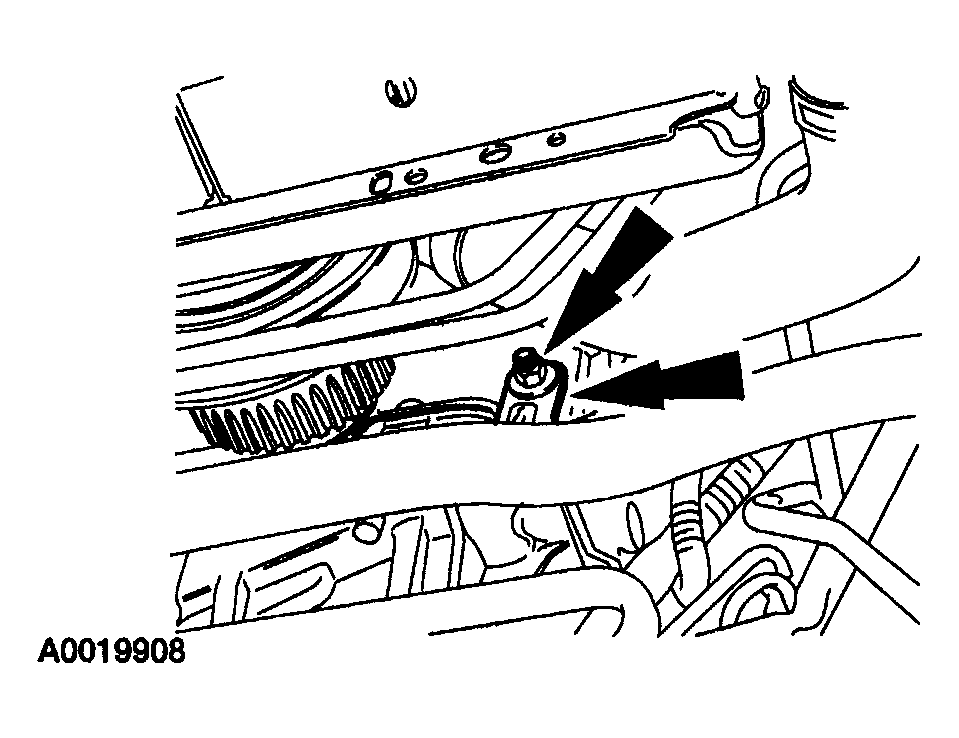

   Fig 5: Removing Bolt

   Courtesy of MAZDA MOTORS CORP.
9. Lower the vehicle.
10. Remove the compressor manifold and tube assembly.
11. To install, reverse the removal procedure.
    • If a new compressor manifold and tube assembly is to be installed, transfer the pressure cutoff switch to the new compressor manifold and tube assembly.
    • Lubricate the refrigerant system with the correct amount of clean refrigerant oil. See A/C REFRIGERANT OIL ADDITION .
    • Install new O-ring seals lubricated with clean refrigerant oil.
12. Evacuate, leak test, and charge the refrigerant system. See A/C REFRIGERANT SYSTEM TESTS .
