A/C Compressor Removal / Installation - 4.0L

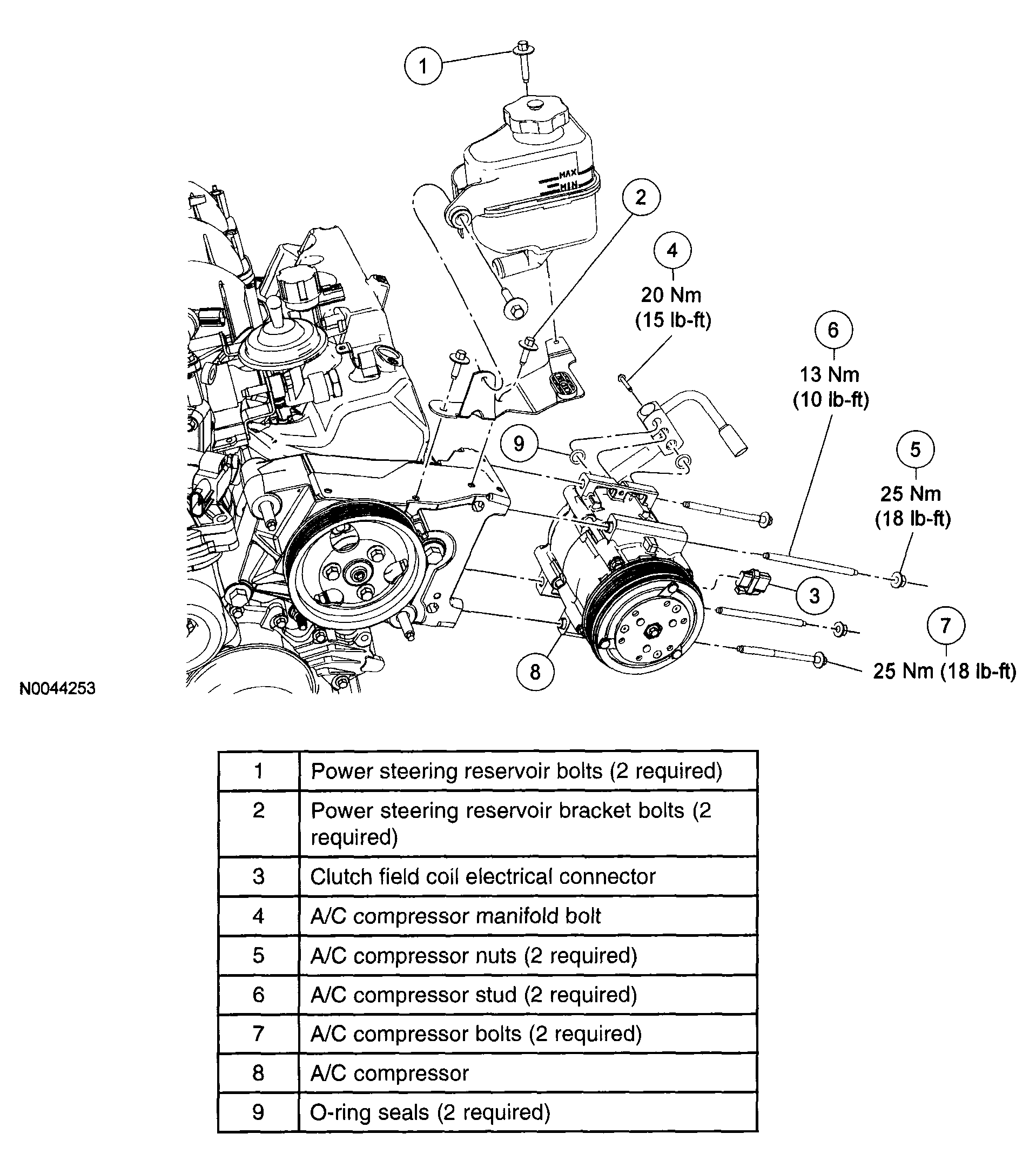

Fig 1: Removing /Installing A/C Compressor With Torque Specifications (4.0L)
G04309844Courtesy of MAZDA MOTORS CORP.
CAUTION:
  • When installing a new A/C compressor due to an internal failure of the old unit, you must carry out the following procedures to remove contamination from the air conditioning system:
  • If A/C flushing equipment is available, carry out the flushing of the air condition system prior to installing a new air conditioning compressor.
  • If A/C flushing equipment is not available, carry out the filtering of the air conditioning system after a new air conditioning compressor has been installed. See A/C REFRIGERANT SYSTEM FILTERING AFTER A/C COMPRESSOR REPLACEMENT .
  • Install a new evaporator core orifice as directed by the A/C flushing or filtering procedure. See EVAPORATOR CORE ORIFICE REMOVAL / INSTALLATION  .
  • Replace the receiver/drier as directed by the A/C flushing or filtering procedure. See A/C RECEIVER / DRIER REMOVAL / INSTALLATION  .
NOTE:
  • Replacement of the suction accumulator is not required when repairing the air conditioning system except when there is physical evidence of system contamination from a failed A/C compressor or damage to the suction accumulator.
  1. If flushing of the refrigerant system has not been performed, recover the refrigerant. See A/C REFRIGERANT SYSTEM TESTS .
  2. Remove the accessory drive belt from the A/C compressor pulley. See DRIVE BELT REMOVAL / INSTALLATION - 4.0L .
  3. Remove the bolts and detach the power steering fluid reservoir.

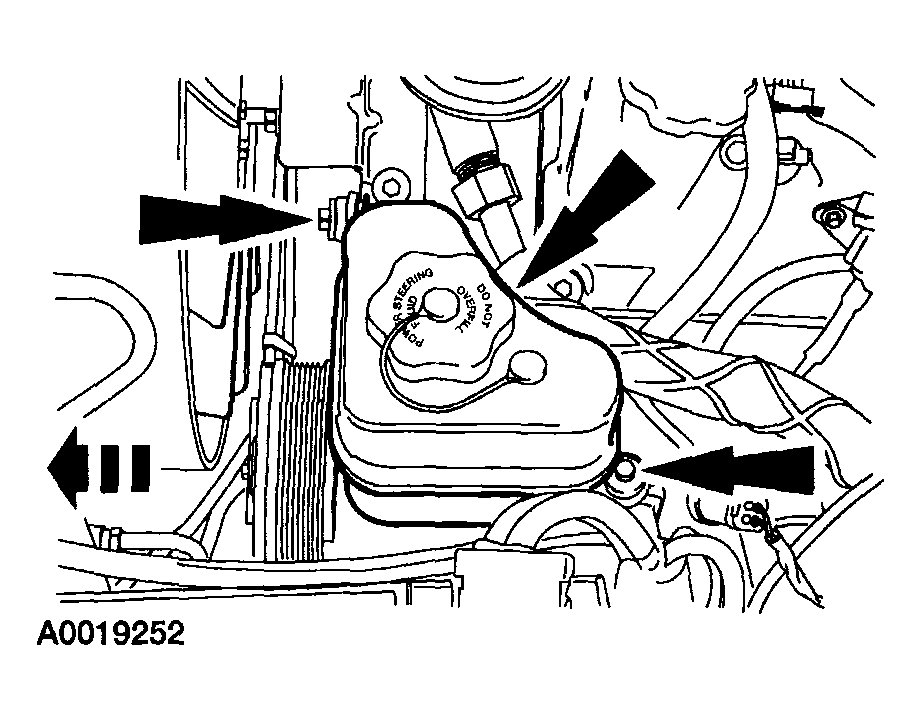

    Fig 2: Removing Power Steering Fluid Reservoir
    G04309845Courtesy of MAZDA MOTORS CORP.
  4. Remove the bolts and the bracket.

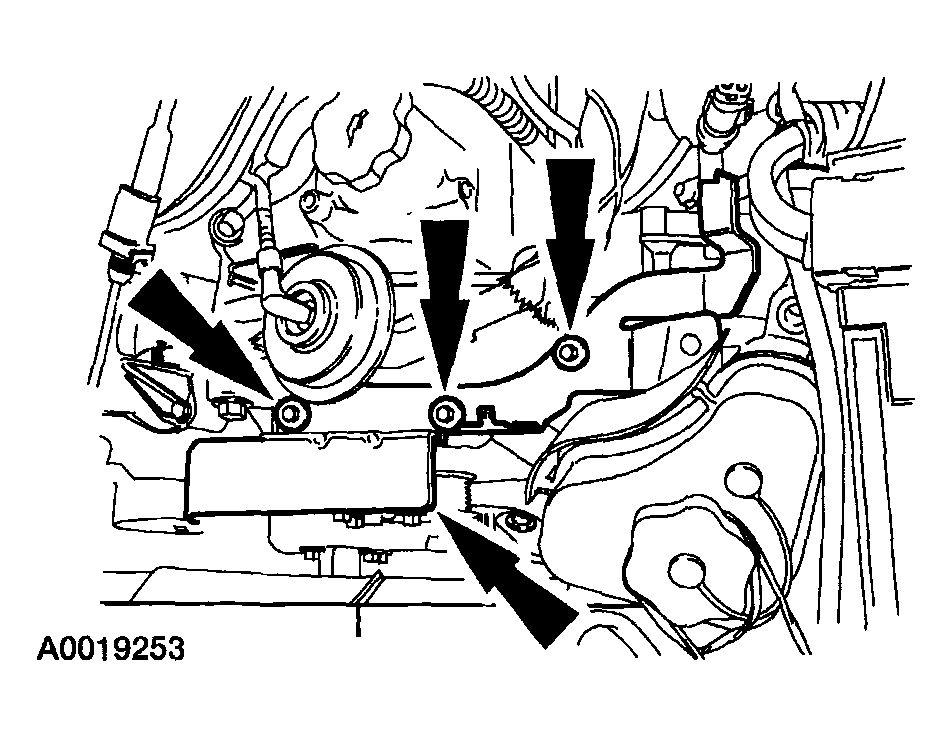

    Fig 3: Removing Bolts And Bracket
    G04309846Courtesy of MAZDA MOTORS CORP.
  5. Disconnect the electrical connector.

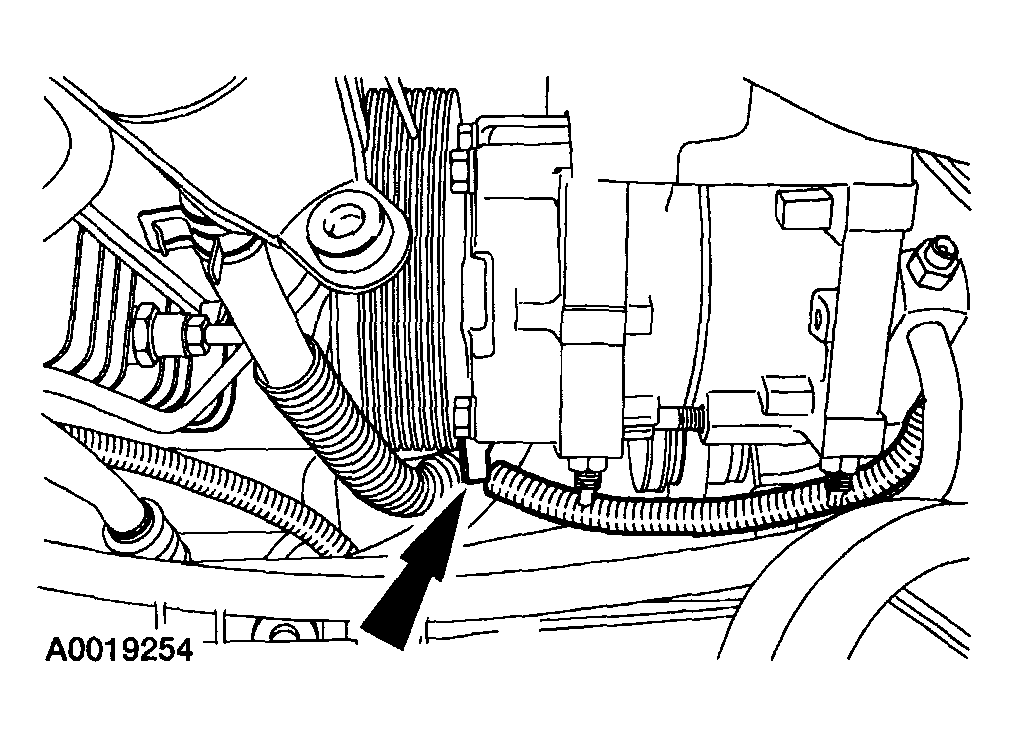

    Fig 4: Disconnecting Electrical Connector
    G04309847Courtesy of MAZDA MOTORS CORP.
  6. Loosen the bolt and disconnect the compressor manifold and tube assembly from the A/C compressor.

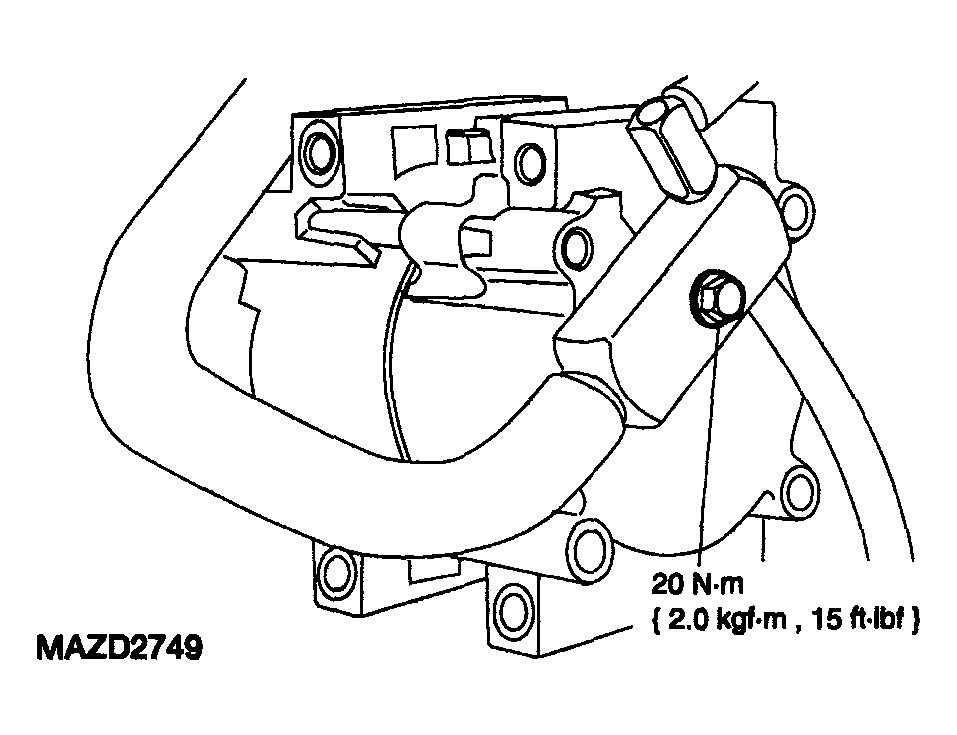

    Fig 5: Loosening/Tightening Bolt With Torque Specifications
    G04309848Courtesy of MAZDA MOTORS CORP.
  7. Remove the pin-type retainers and position the inner fender well access cover aside.

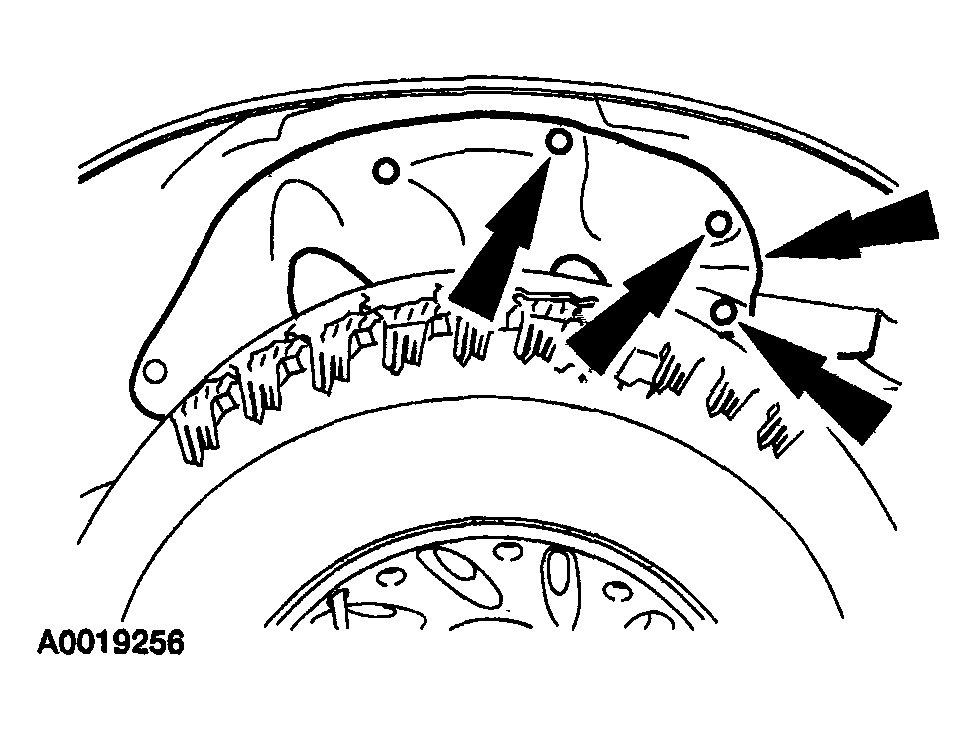

    Fig 6: Removing Pin-Type Retainers
    G04309849Courtesy of MAZDA MOTORS CORP.
    NOTE:
    • The two lower nuts and studs are accessible through the inner fender well.
  8. Remove the four nuts, four studs, and the A/C compressor.
    • Discard the O-ring seals.
  9. To install, reverse the removal procedure.
  10. Evacuate, leak test, and charge the refrigerant system. See A/C REFRIGERANT SYSTEM TESTS .
