Instrument Cluster and Panel Illumination

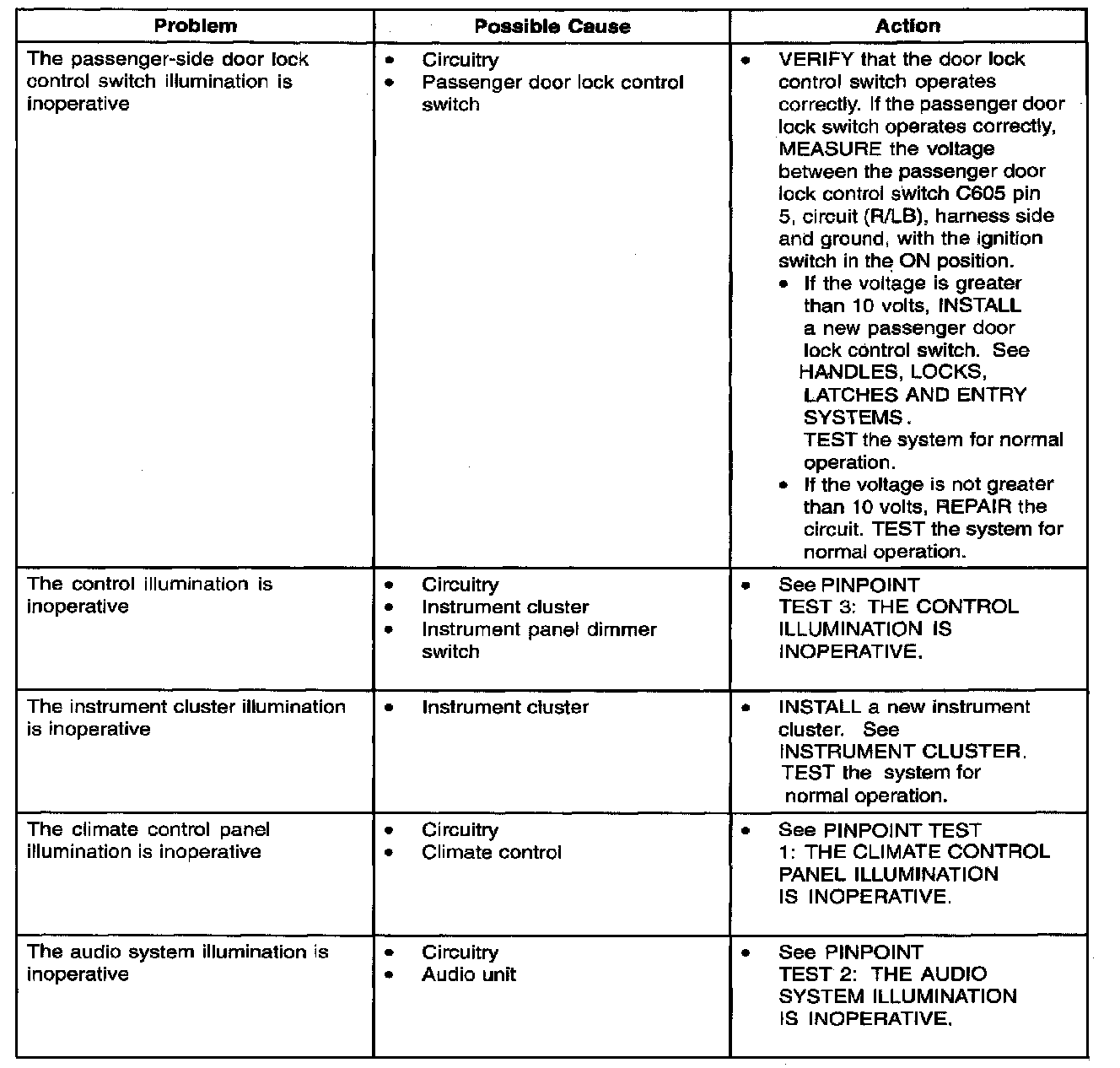

Symptom Troubleshooting Chart - Illumination Part 1:

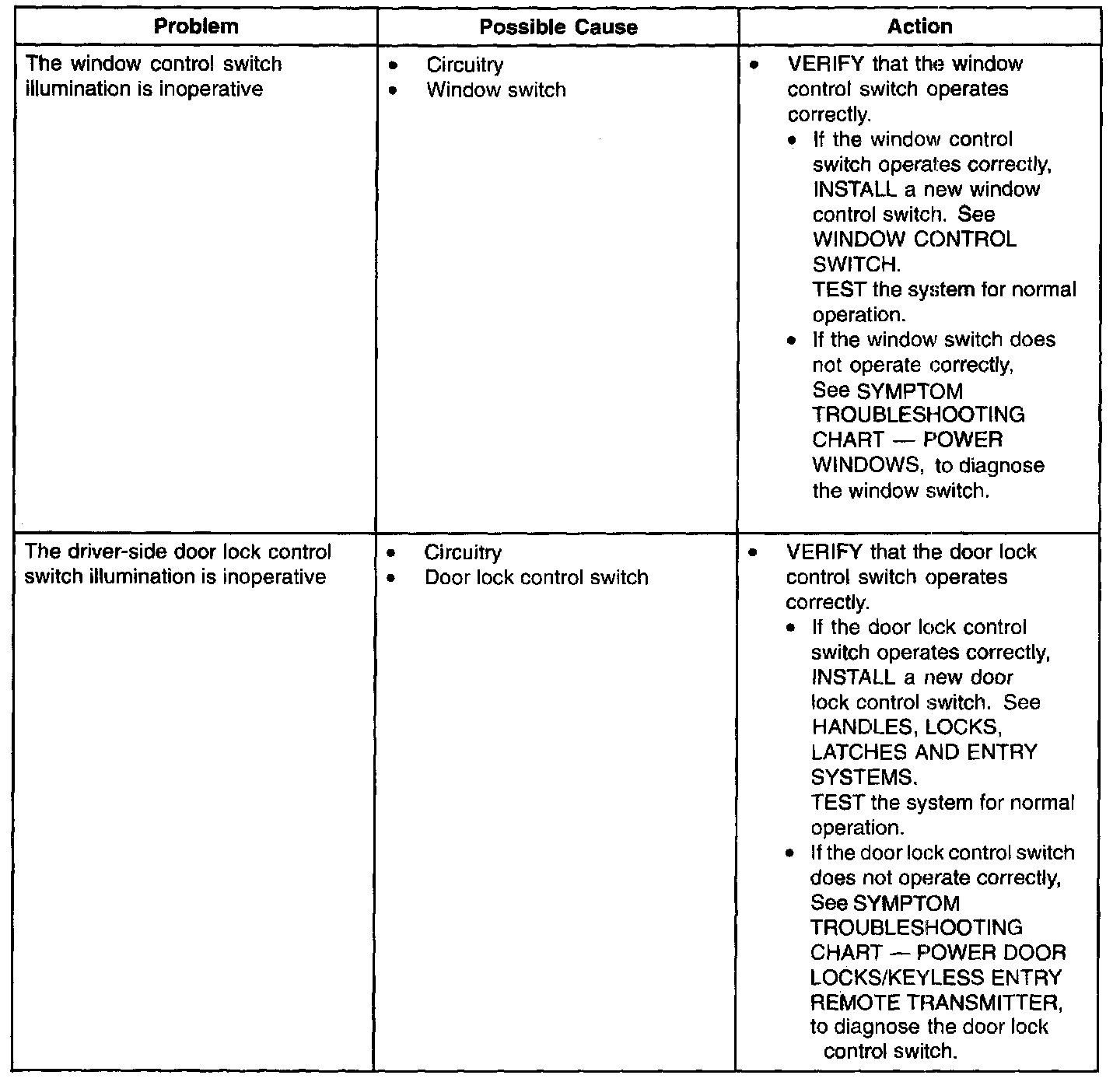

Symptom Troubleshooting Chart - Illumination Part 2:
Symptom Troubleshooting Chart - Illumination Part 3:
