Off-Vehicle Inspection
WARNING: This page is about a different variant/trim than selected.
WARNING:
- When the transaxle and ATF are hot, they can badly burn. Turn off the engine and wait until they are cool before replacing ATF.
- Disconnect the negative battery cable.
- Remove the coupler component. (See PRIMARY CONTROL VALVE BODY REMOVAL ).

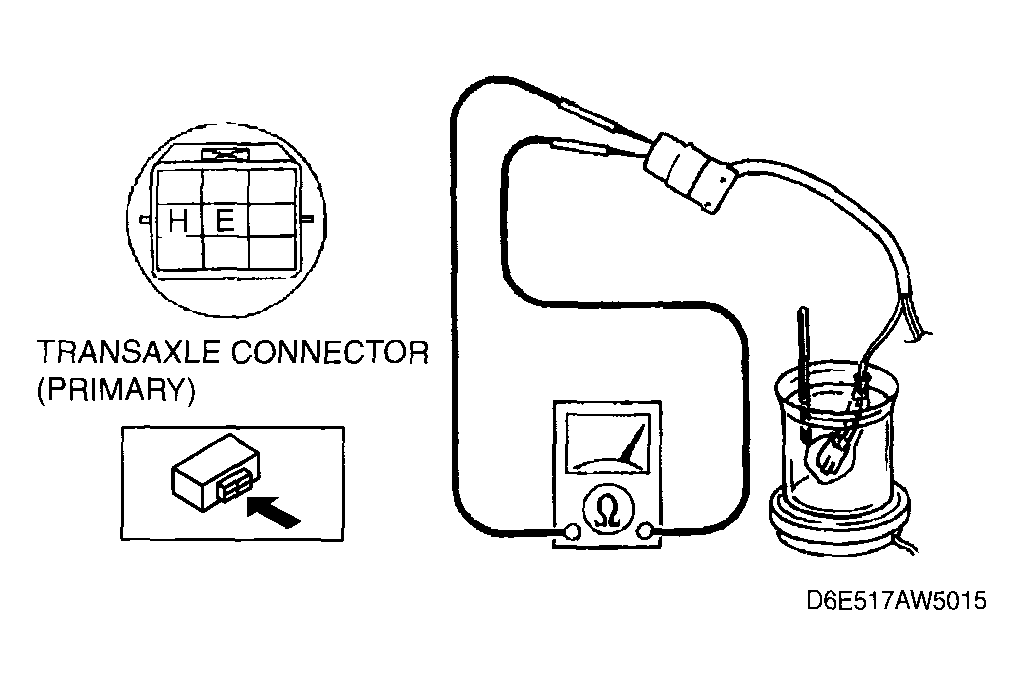

- Place the TFT sensor and a thermometer in ATF as shown, and heat the ATF gradually.
- Measure resistance between the terminals of the TFT sensor.
- If not as specified, replace the TFT sensor. (See TRANSAXLE FLUID TEMPERATURE (TFT) SENSOR REMOVAL/INSTALLATION ).
Transaxle fluid temperature (TFT) sensor
TRANSAXLE FLUID TEMPERATURE (TFT) SENSOR
| ATF temperature (°C {°F}) | Resistance (kilohm) |
|---|---|
| -20 {-4} | 236-324 |
| 0 {32} | 84.3-110 |
| 20 {68} | 33.5-42.0 |
| 40 {104} | 14.7-17.9 |
| 60 {140} | 7.08-8.17 |
| 80 {176} | 3.61-4.15 |
| 100 {212} | 1.96-2.24 |
| 120 {248} | 1.13-1.28 |
| 130 {266} | 0.87-0.98 |
