Primary Control Valve Body Removal

WARNING: This page is about a different variant/trim than selected.

On-Vehicle Removal

WARNING:
  • Using compressed air can cause dirt and other particles to fly out, causing injury to the eyes. Wear protective eyes whenever using compressed air.
CAUTION:
  • Clean the transaxle exterior throughout with a steam cleaner or cleaning solvents before removal.
  • If any old sealant gets into the transaxle during installation of the oil pan, trouble may occur in the transaxle case and oil pan. Clean with cleaning fluids.
  1. Disconnect the negative battery cable.
  2. Drain the ATF into a separate suitable container. (See AUTOMATIC TRANSAXLE FLUID (ATF) REPLACEMENT ).
  3. Remove the under cover.
  4. Remove the front tires and splash shield.
  5. Remove the crossmember. (See FRONT CROSSMEMBER REMOVAL/INSTALLATION. )
  6. Remove the oil pan.
  7. Disconnect the solenoid connectors and GND.
  8. Remove the oil strainer.

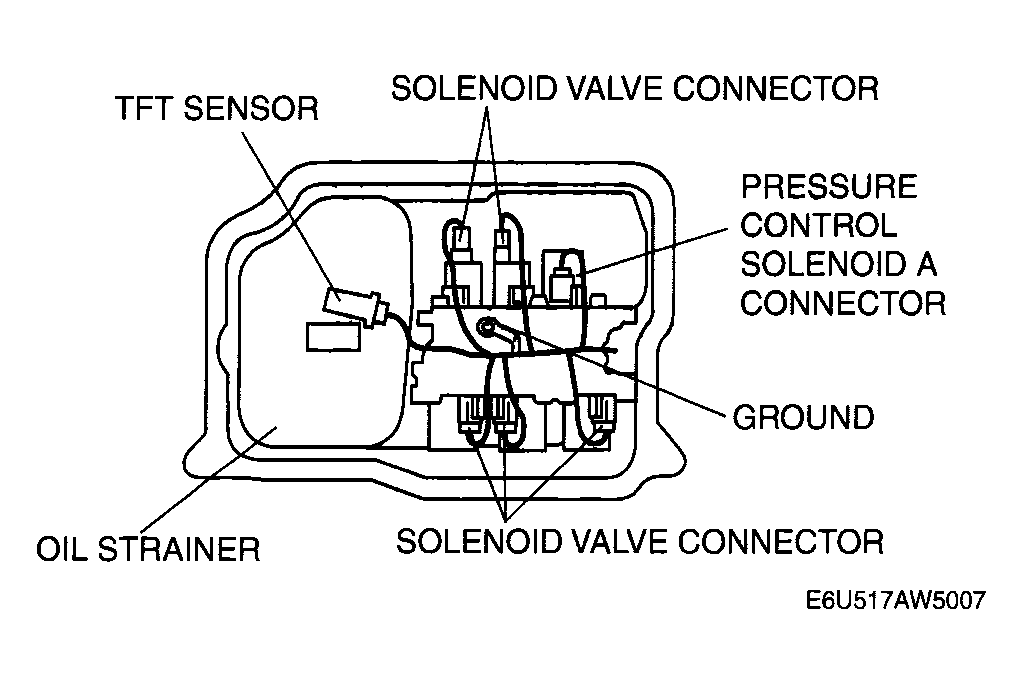

    Fig 1: Solenoid Valve Connectors
    G04326301Courtesy of MAZDA MOTORS CORP.
  9. Remove the primary control valve body installation bolts as shown, then remove the primary control valve body component as shown.

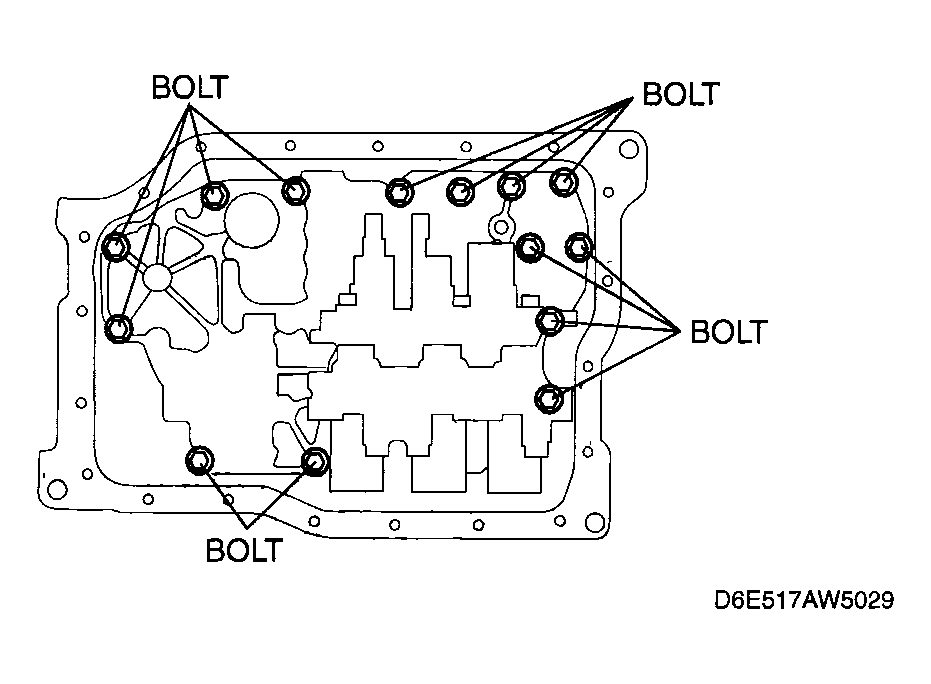

    Fig 2: Primary Control Valve Body Installation Bolts
    G04326302Courtesy of MAZDA MOTORS CORP.
  10. Remove the accumulators and accumulator springs.
    Fig 3: Accumulators & Accumulator Springs
    G04326303Courtesy of MAZDA MOTORS CORP.
