Solenoid Valve Removal/Installation (Primary Control Valve Body)

WARNING: This page is about a different variant/trim than selected.
  1. Disconnect the negative battery cable.
  2. Remove the under cover.
  3. Drain the ATF.
  4. Remove the oil pan.
  5. Remove the primary control valve body. (See PRIMARY CONTROL VALVE BODY REMOVAL ).
  6. Remove the solenoid valve(s).
  7. Apply ATF to a new O-ring and install it on the solenoid valve.
    Fig 1: Identifying Shift Solenoid Valve (Primary Control Valve Body) [FS5A-EL]
    G04326266Courtesy of MAZDA MOTORS CORP.
  8. Install the solenoid valve in the primary control valve body.

    Tightening torque

    7.8-10.8 N.m

    {80-110 kgf.cm, 70-95.4 in.lbf}

  9. Install the primary control valve body. (See PRIMARY CONTROL VALVE BODY REMOVAL ).
  10. Install the oil pan. (See PRIMARY CONTROL VALVE BODY REMOVAL ).

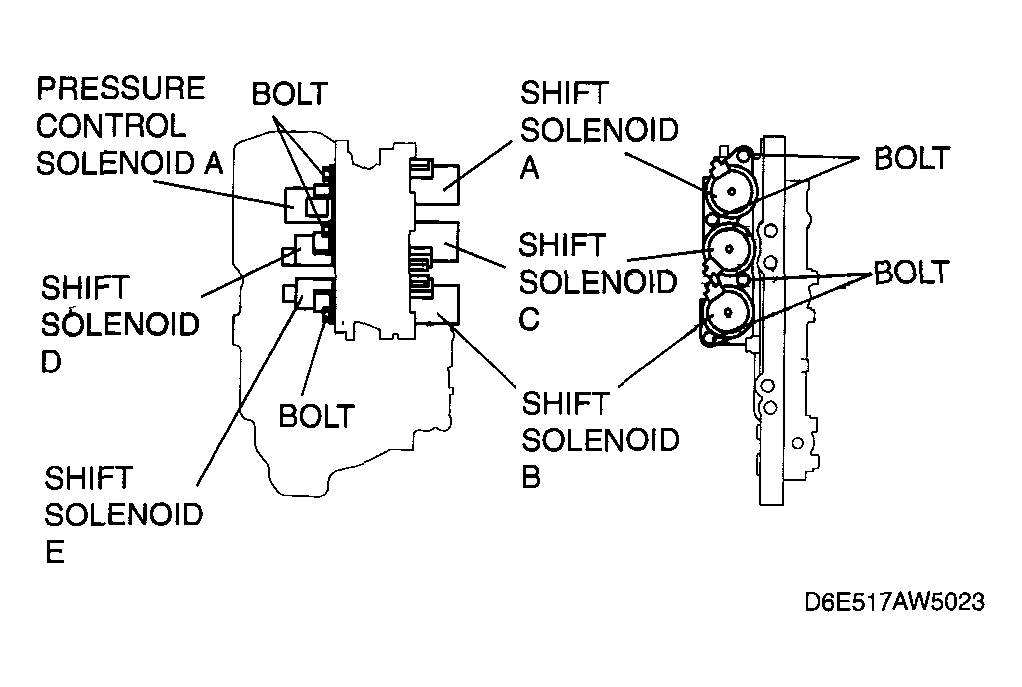

    Fig 2: Installing Solenoid Valve In Primary Control Valve Body
    G04326267Courtesy of MAZDA MOTORS CORP.
  11. Install the under cover.
  12. Connect the negative battery cable.
  13. Add ATF. (See AUTOMATIC TRANSAXLE FLUID (ATF) REPLACEMENT ).
  14. Perform the mechanical system test. (See MECHANICAL SYSTEM TEST ).
  15. Perform the road test. (See ROAD TEST ).
