Shroud Panel Removal/Installation

  1. Remove the following parts:
    1. Hood (See HOOD REMOVAL/INSTALLATION [EXCEPT L3 WITH TC] ). (See HOOD REMOVAL/INSTALLATION [L3 WITH TC] ).
    2. Front bumper (See FRONT BUMPER REMOVAL/INSTALLATION ).
    3. Front combination light (See FRONT COMBINATION LIGHT REMOVAL/INSTALLATION. )
    4. Front bumper reinforcement (See FRONT BUMPER REINFORCEMENT REMOVAL/INSTALLATION ).
  2. Remove in the order indicated in the table.

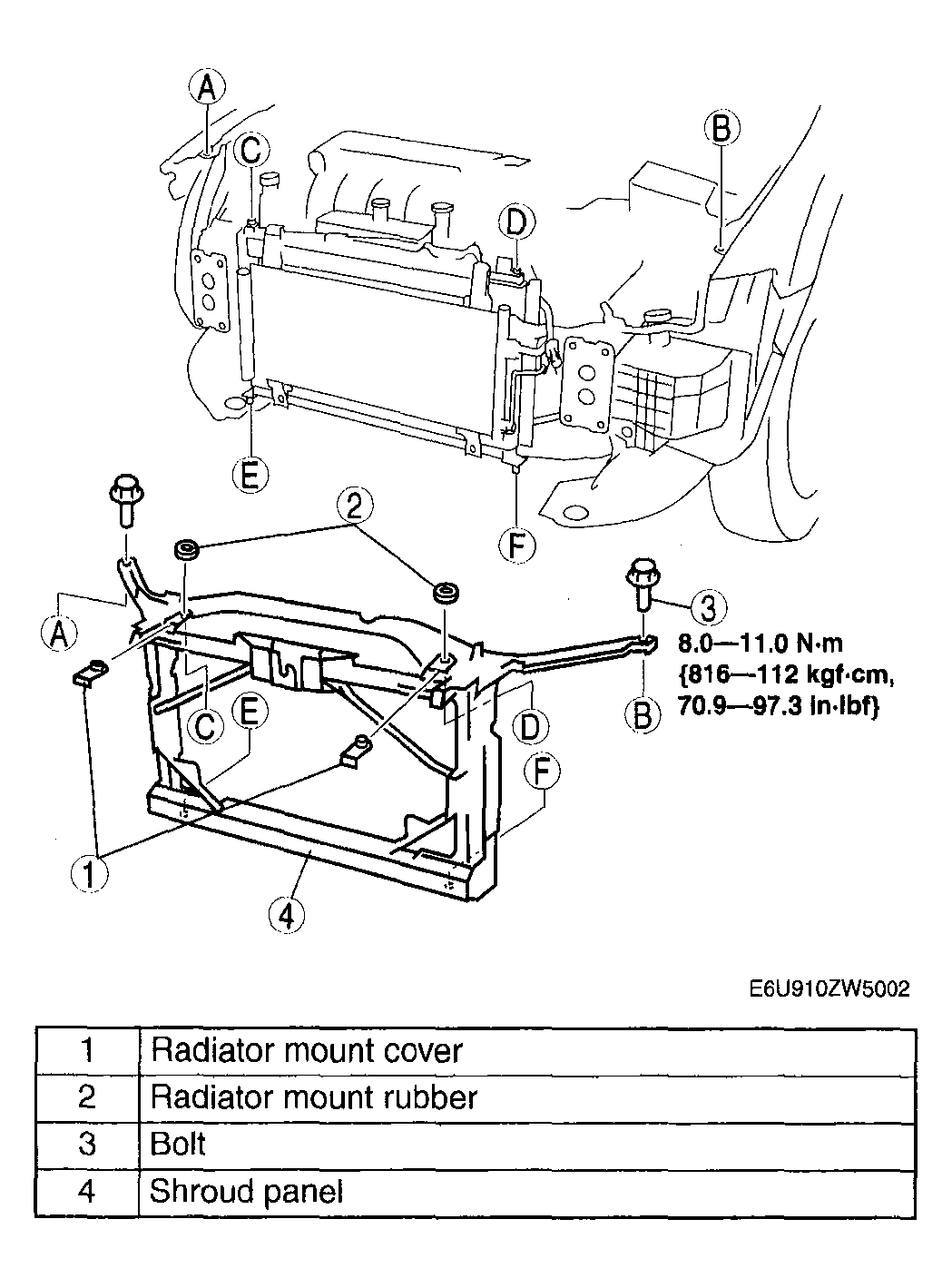

    Fig 1: Radiator Shroud Panel & Torque Specification
    G04327150Courtesy of MAZDA MOTORS CORP.
  3. Install in the reverse order of removal.
