Front Combination Light Removal/Installation

  1. Disconnect the negative battery cable.
  2. Remove the front bumper. (See FRONT BUMPER REMOVAL/INSTALLATION. )
  3. Remove in the order indicated in the table.

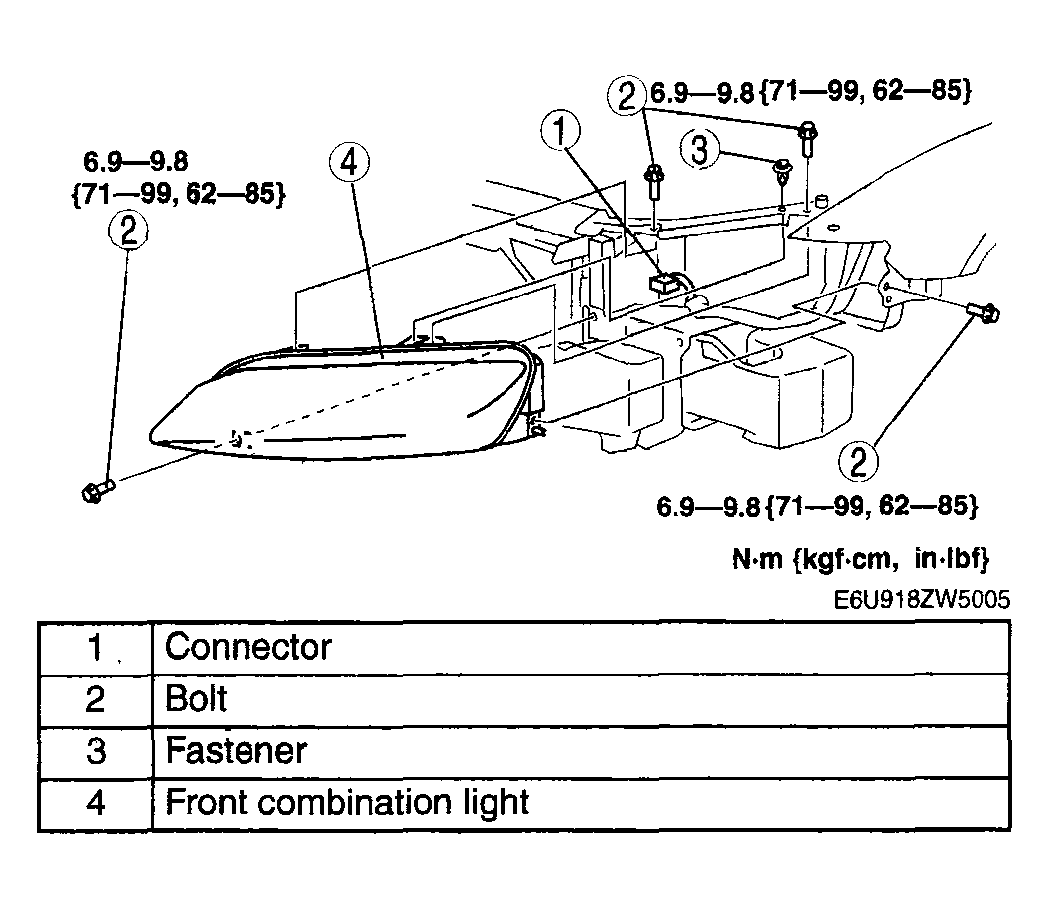

    Fig 1: Front Combination Light & Torque Specification
    G04327511Courtesy of MAZDA MOTORS CORP.
  4. Install in the reverse order of removal.
  5. Adjust the headlight aiming. (See HEADLIGHT ADJUSTMENT ).
