Front Bumper Reinforcement Removal/Installation

  1. Disconnect the negative battery cable.
  2. Remove the front bumper. (See FRONT BUMPER REMOVAL/INSTALLATION ).
  3. Remove the headlight. (See FRONT COMBINATION LIGHT REMOVAL/INSTALLATION. )
  4. Support the radiator and the condenser using the wire.
  5. Remove in the order indicated in the table.
  6. Install in the reverse order of removal.

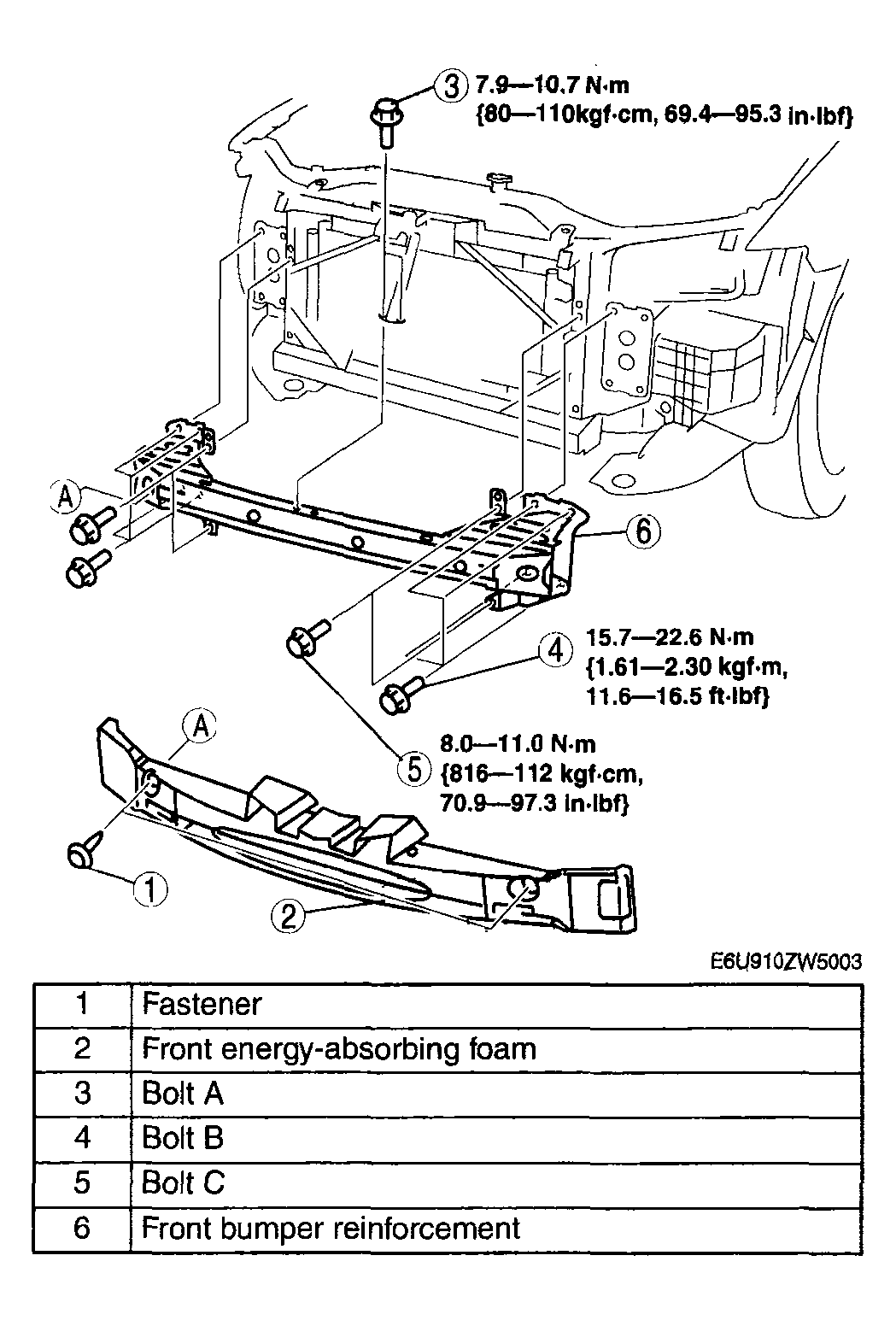

    Fig 1: Front Bumper Reinforcement & Torque Specification
    G04327141Courtesy of MAZDA MOTORS CORP.
