Water Pump Removal/Installation - 2.3L

WARNING: This page is about a different car, the 2005 Mazda B2300. However, it is still accessible from the selected car via links, so may be relevant.

Remove the air cleaner outlet pipe. See AIR CLEANER OUTLET PIPE REMOVAL/INSTALLATION - 2.3L .
Drain the cooling system. See ENGINE COOLANT REPLACEMENT - 2.3L .
Remove the drive belt. See DRIVE BELT REMOVAL/INSTALLATION - 2.3L .

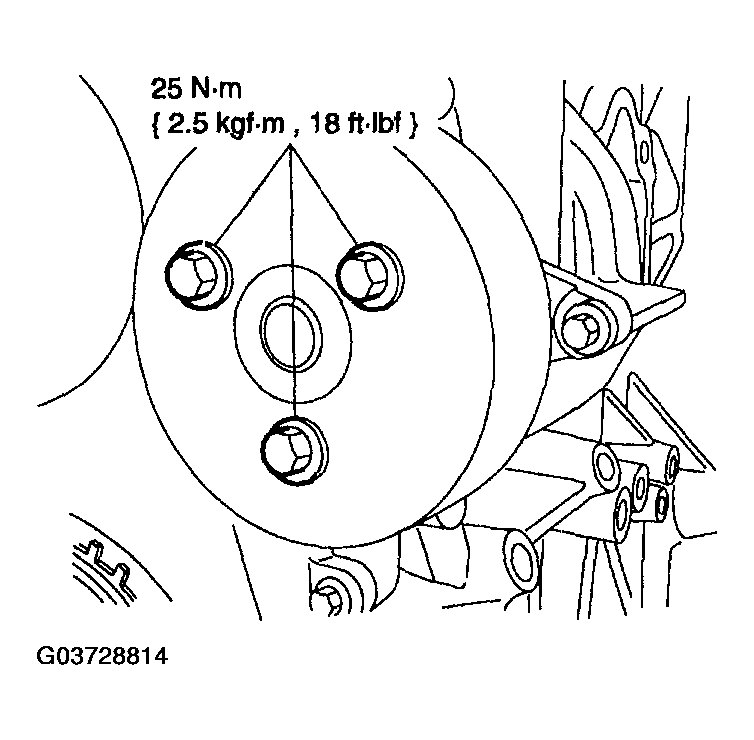

Fig 1: Removing Water Pump Pulley Bolts - With Torque Specifications
Courtesy of MAZDA MOTORS CORP.
Remove the bolts and the water pump pulley.

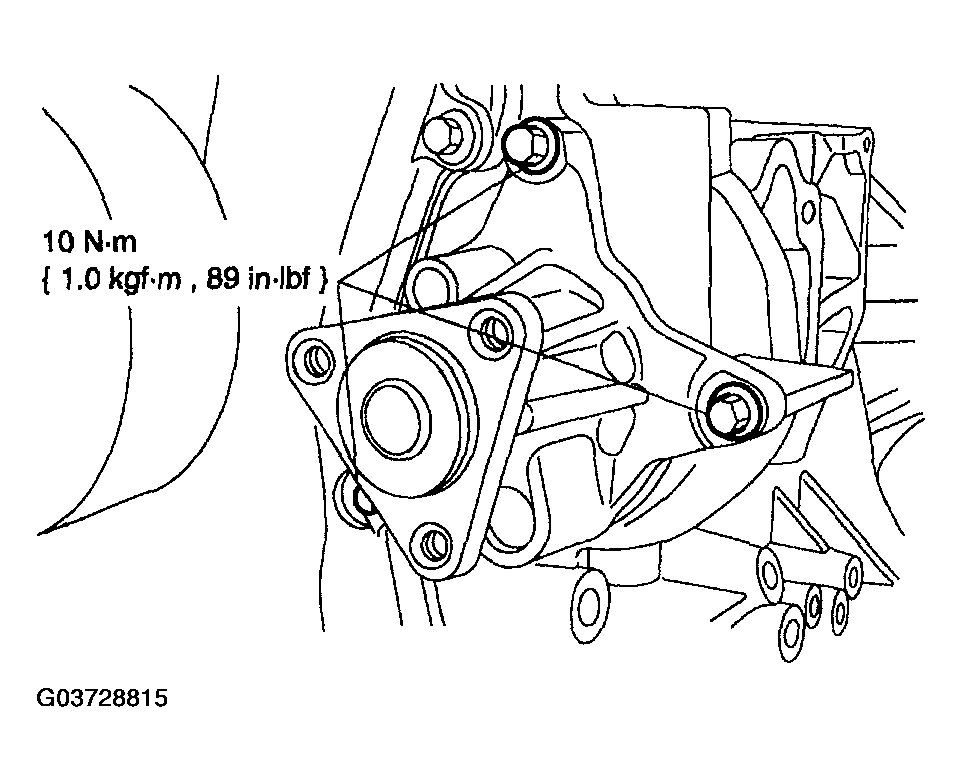

Fig 2: Removing Water Pump Bolts - With Torque Specifications
Courtesy of MAZDA MOTORS CORP.
Remove the bolts and the water pump.

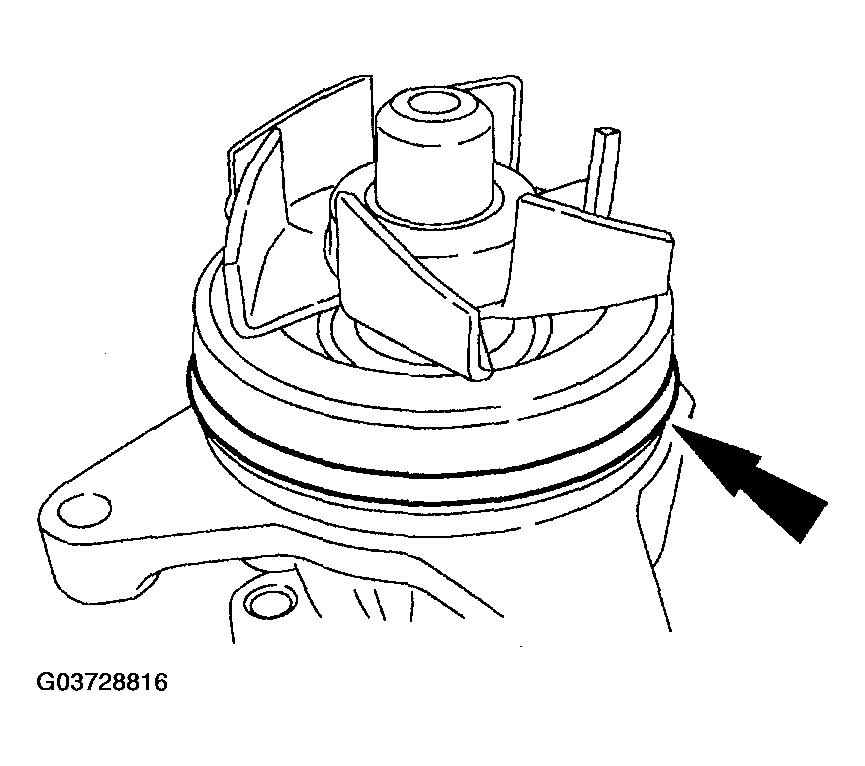

Fig 3: Locating Water Pump O-Ring
Courtesy of MAZDA MOTORS CORP.
NOTE:
- Lubricate the water pump O-ring with clean engine coolant.
To install, reverse the removal procedure.
