Air Cleaner Outlet Pipe Removal/Installation - 2.3L

WARNING: This page is about a different car, the 2005 Mazda B2300. However, it is still accessible from the selected car via links, so may be relevant.

Disconnect the negative battery cable.

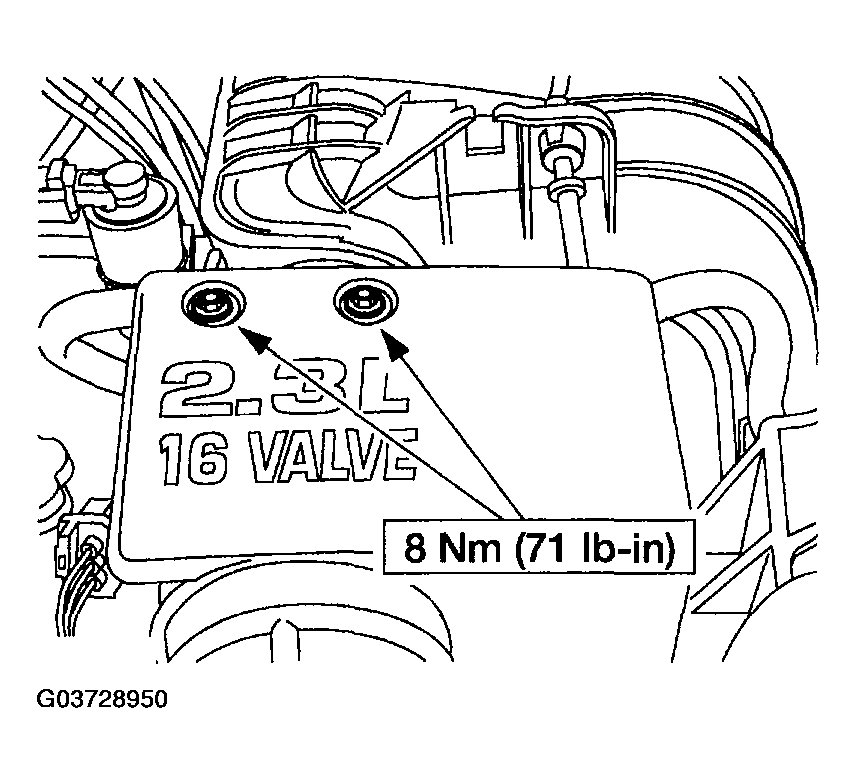

Fig 1: Removing Accelerator Control Splash Shield - With Torque Specifications
Courtesy of MAZDA MOTORS CORP.
Remove the accelerator control splash shield.

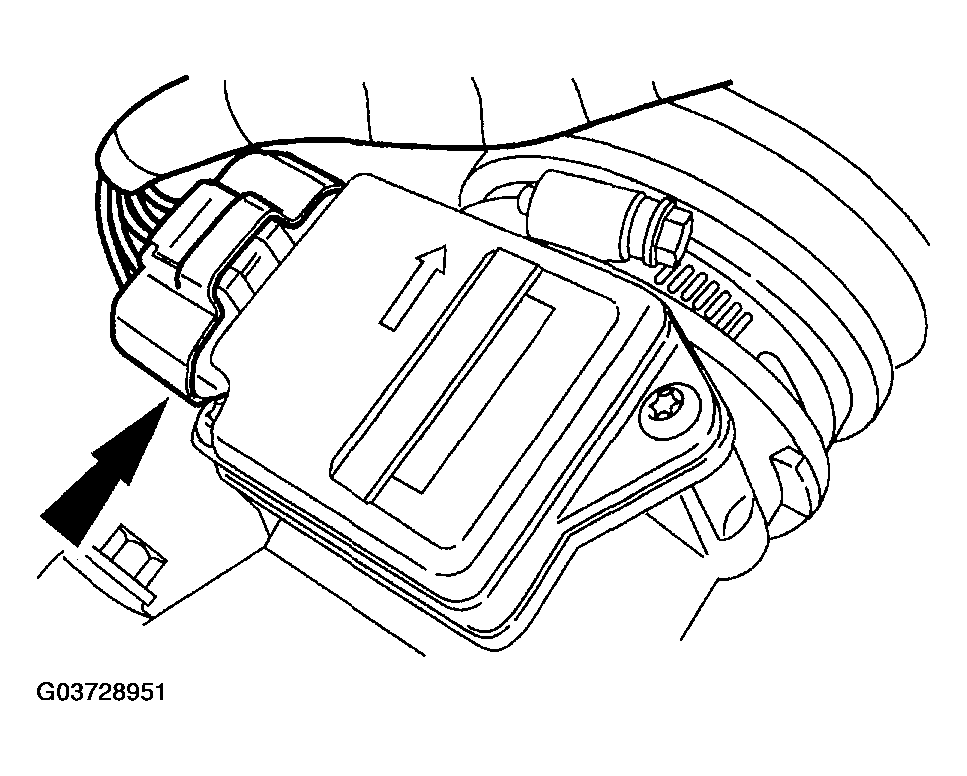

Fig 2: Disconnecting Mass Air Flow (MAF) Electrical Connector
Courtesy of MAZDA MOTORS CORP.
Disconnect the mass air flow (MAF) electrical connector.

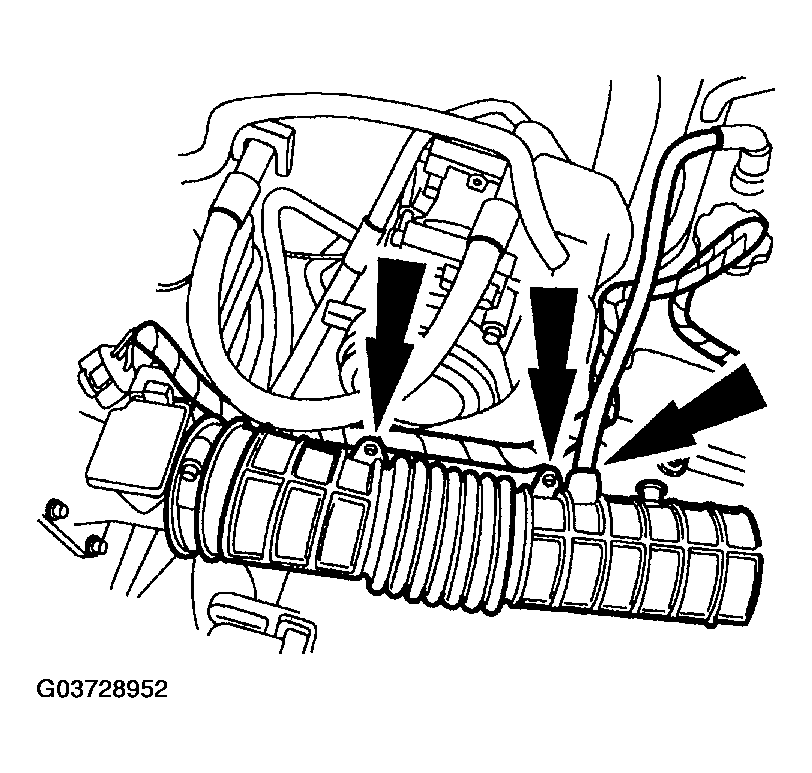

Fig 3: Disconnecting Electrical Harness Push Pins And Crankcase Ventilation Tube
Courtesy of MAZDA MOTORS CORP.
Disconnect the electrical harness push pins and the crankcase ventilation tube.

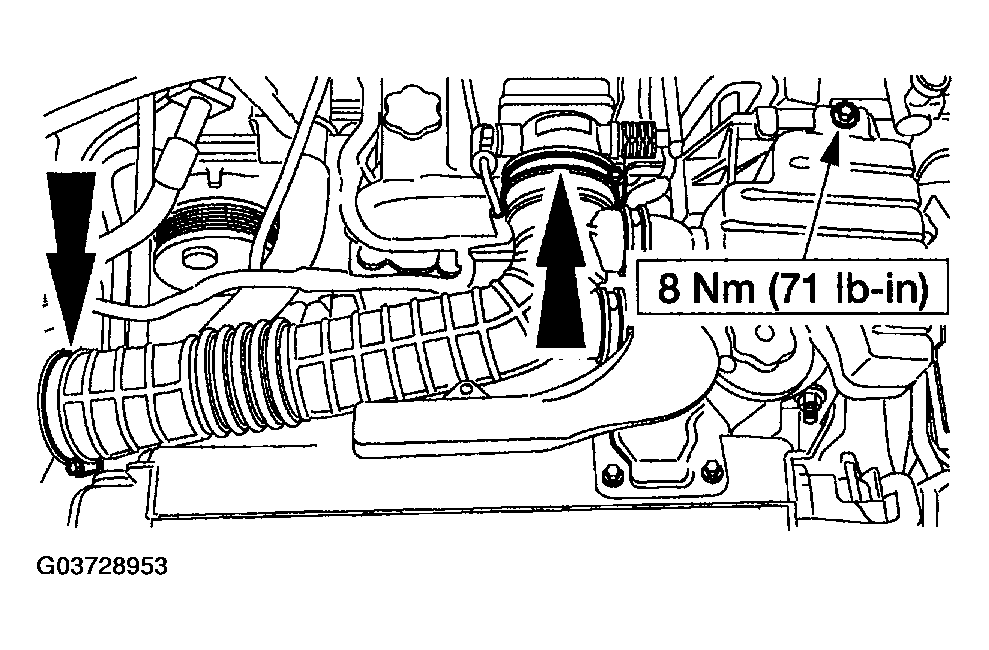

Fig 4: Loosening Hose Clamps, Removing Bolt And Air Cleaner Outlet Pipe - With Torque Specifications
Courtesy of MAZDA MOTORS CORP.
Loosen the hose clamps, remove the bolt and remove the air cleaner outlet pipe.
To install, reverse the removal procedure.
