Drive Belt Removal/Installation - 2.3L

WARNING: This page is about a different car, the 2005 Mazda B2300. However, it is still accessible from the selected car via links, so may be relevant.
  1. Rotate the belt tensioner counterclockwise and remove the drive belt.
    NOTE:

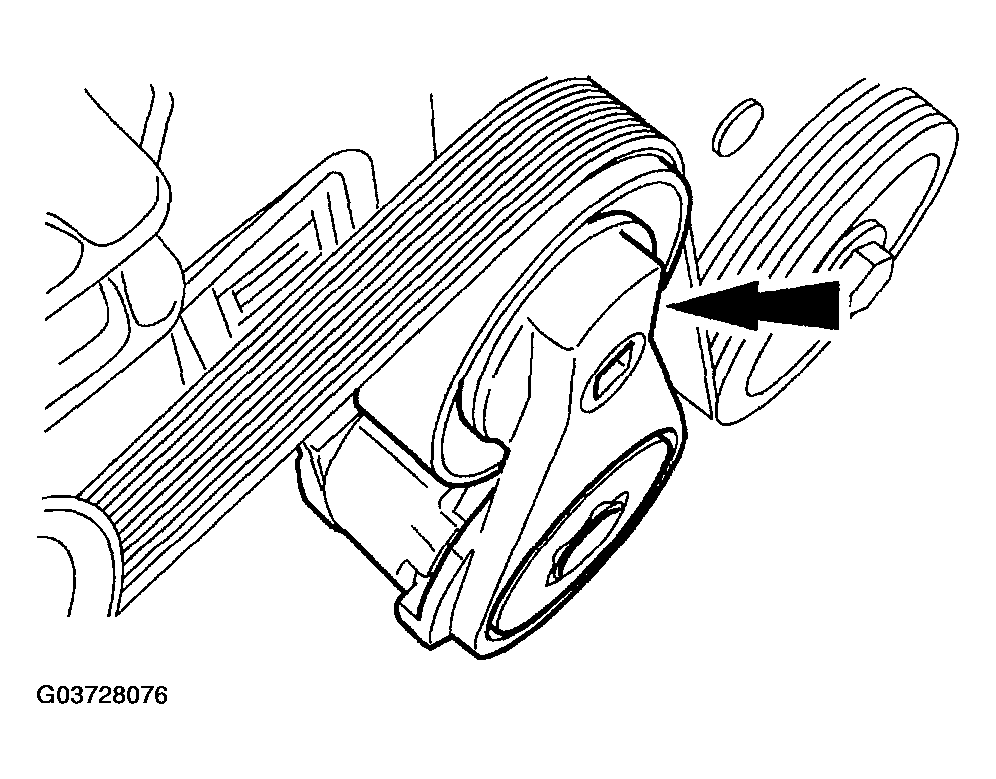

    Fig 1: Removing Drive Belt
    G03728076Courtesy of MAZDA MOTORS CORP.
  2. To install, reverse the removal procedure.
