Engine Front Cover Removal/Installation - 3.0L: Installation

WARNING: This page is about a different car, the 2005 Mazda B3000. However, it is still accessible from the selected car via links, so may be relevant.

Clean all sealing surfaces and position a new front cover gasket.

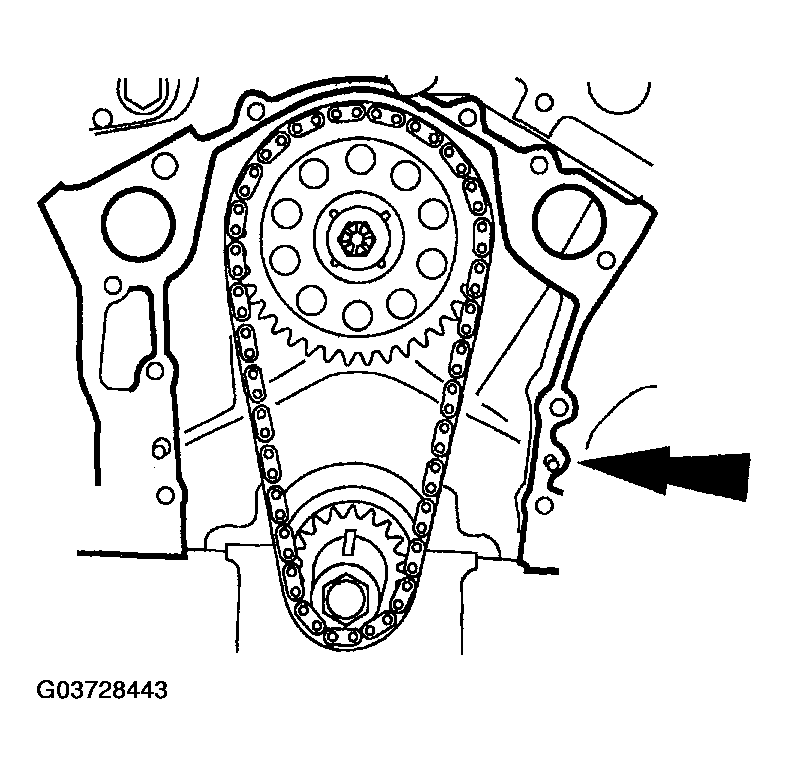

Fig 1: Positioning Front Cover Gasket
Courtesy of MAZDA MOTORS CORP.
Position the engine front cover.

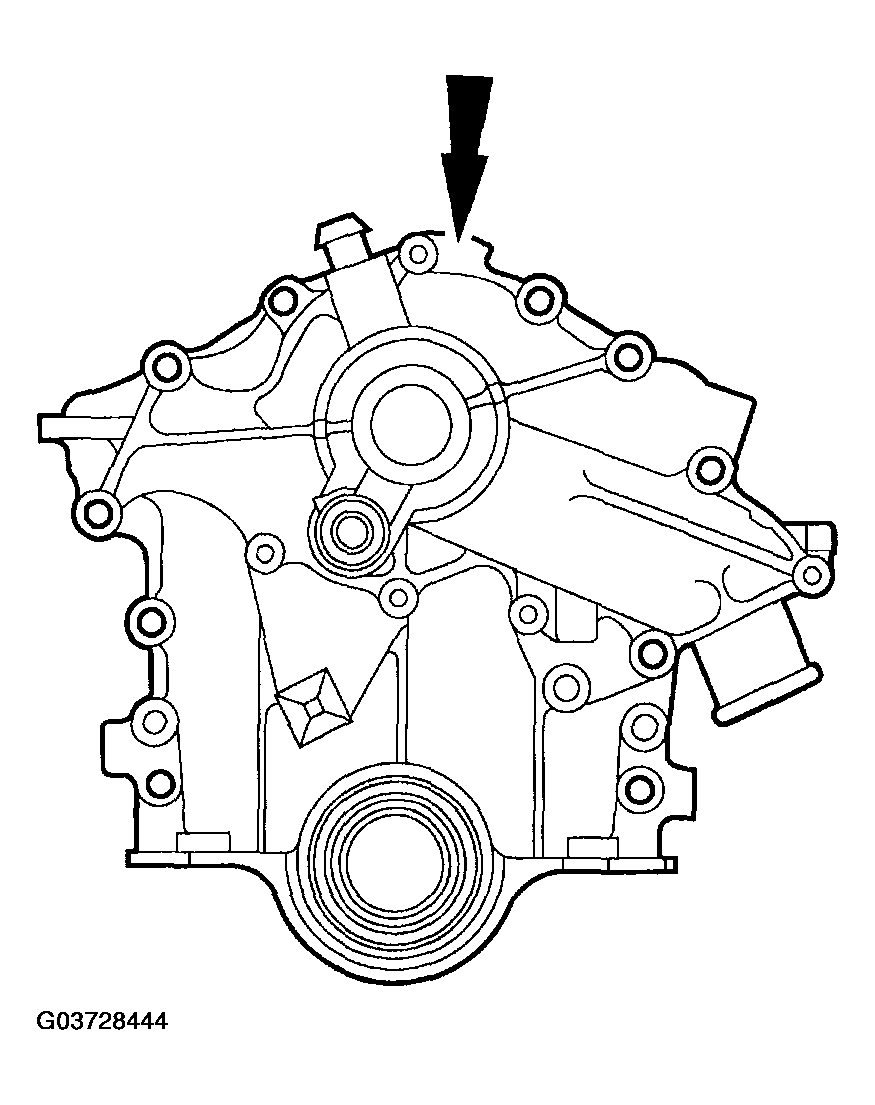

Fig 2: Positioning Engine Front Cover
Courtesy of MAZDA MOTORS CORP.
Apply pipe sealant with Teflon(R) to the bolts to be installed in the locations shown.

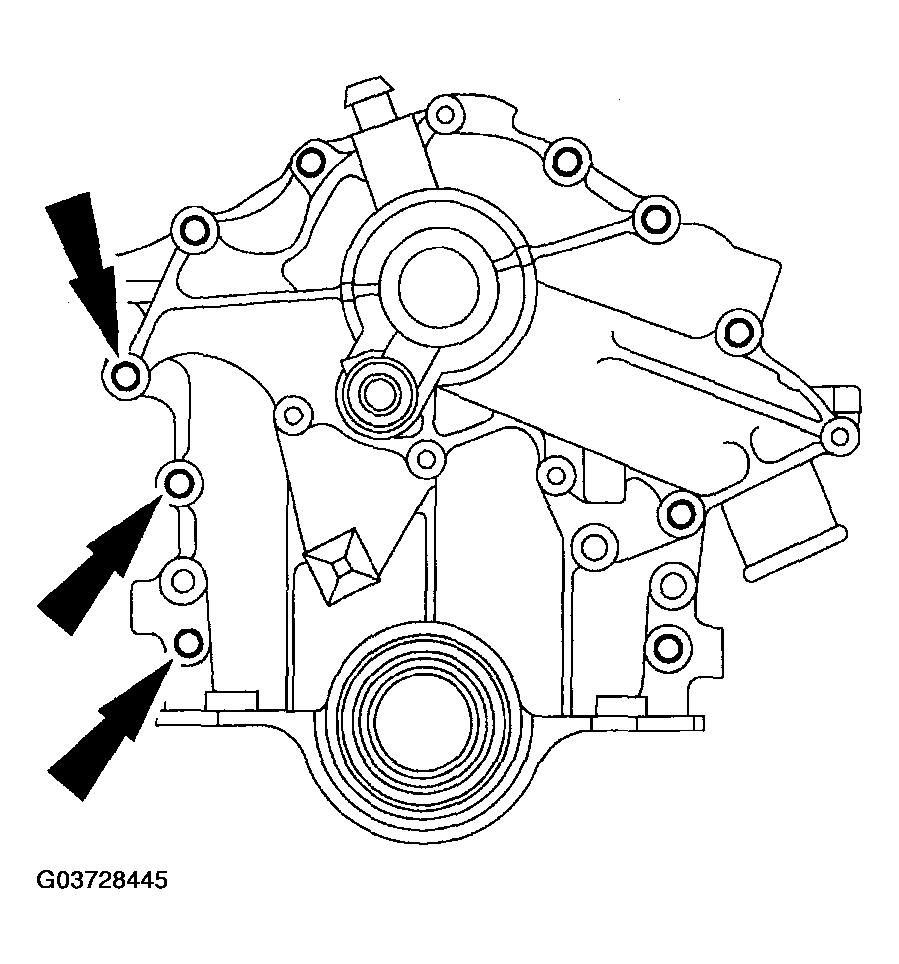

Fig 3: Applying Pipe Sealant To Bolts
Courtesy of MAZDA MOTORS CORP.
Install the front cover bolts.

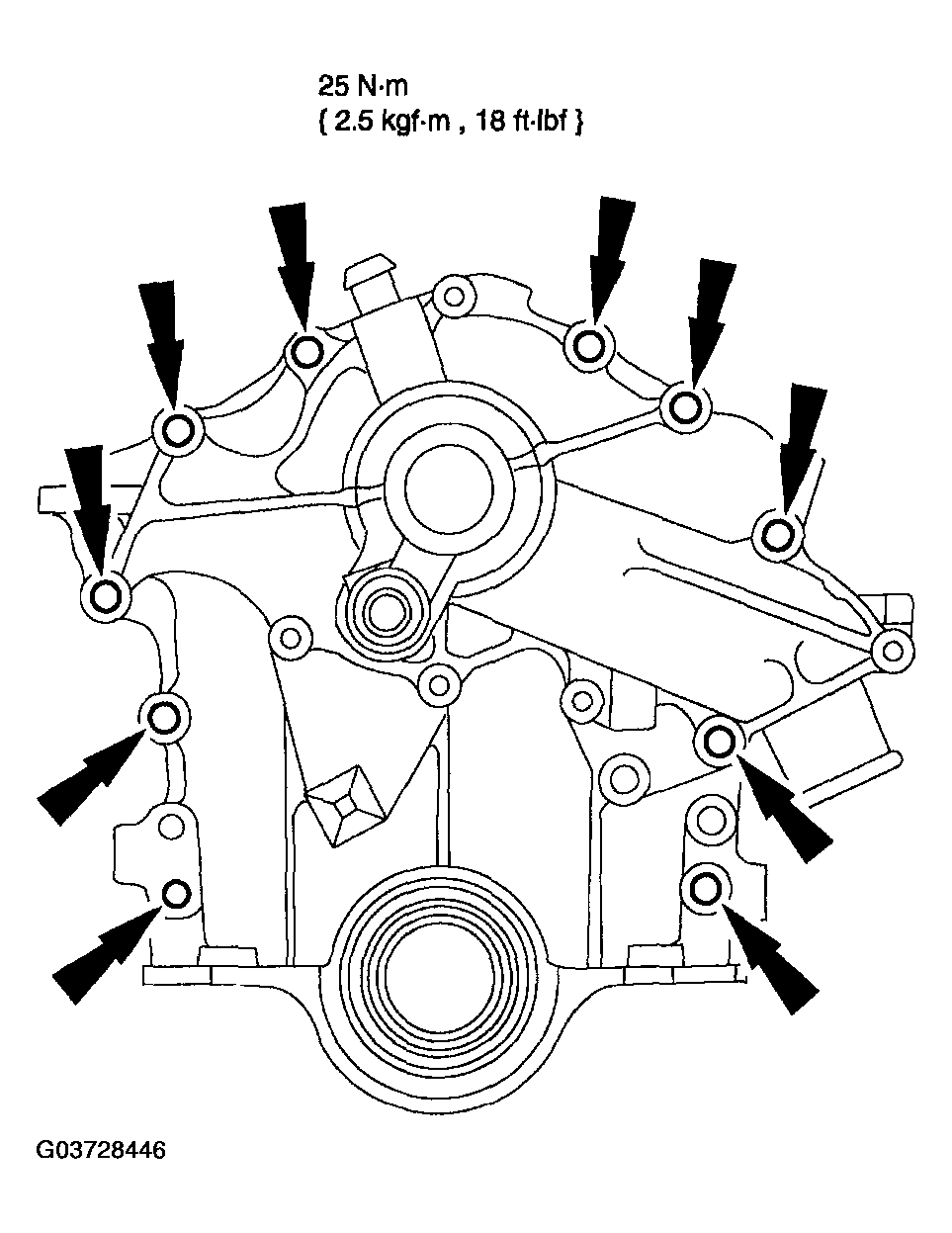

Fig 4: Installing Front Cover Bolts - With Torque Specification
Courtesy of MAZDA MOTORS CORP.
Install the crankshaft position (CKP) sensor.

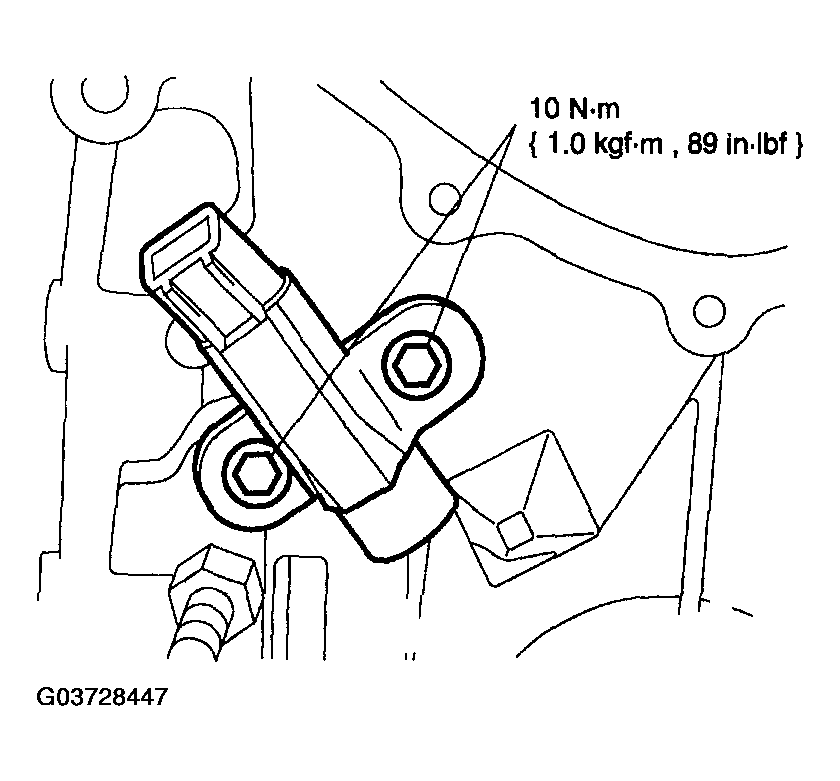

Fig 5: Installing Crankshaft Position (CKP) Sensor - With Torque Specification
Courtesy of MAZDA MOTORS CORP.
Install the oil pan. See OIL PAN BAFFLE REMOVAL/INSTALLATION - 3.0L .
Install the crankshaft front oil seal. See CRANKSHAFT FRONT OIL SEAL REPLACEMENT - 3.0L .
Connect the lower radiator hose to the water pump outlet.
Position back the A/C compressor and power steering bracket.

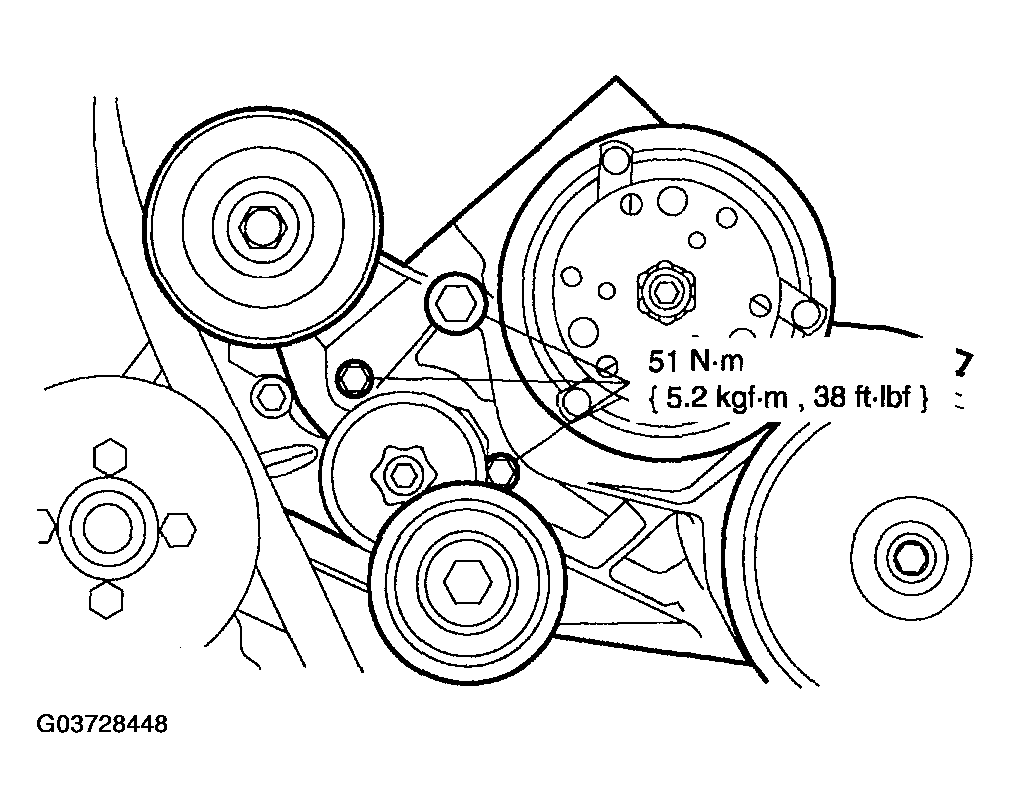

Fig 6: Installing A/C Compressor And Power Steering Bracket Bolts - With Torque Specification
Courtesy of MAZDA MOTORS CORP.

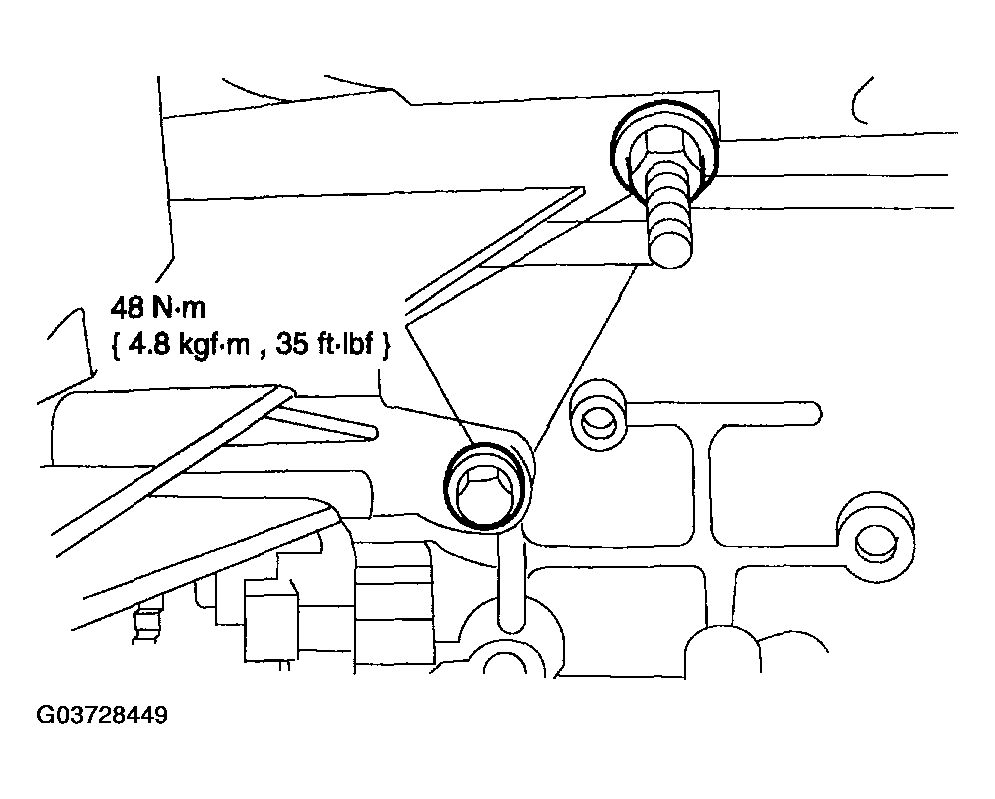

Install the bolts to the A/C compressor mounting bracket.

Fig 7: Installing A/C Compressor Mounting Bracket Bolts - With Torque Specification
Courtesy of MAZDA MOTORS CORP.
Install the water pump pulley.

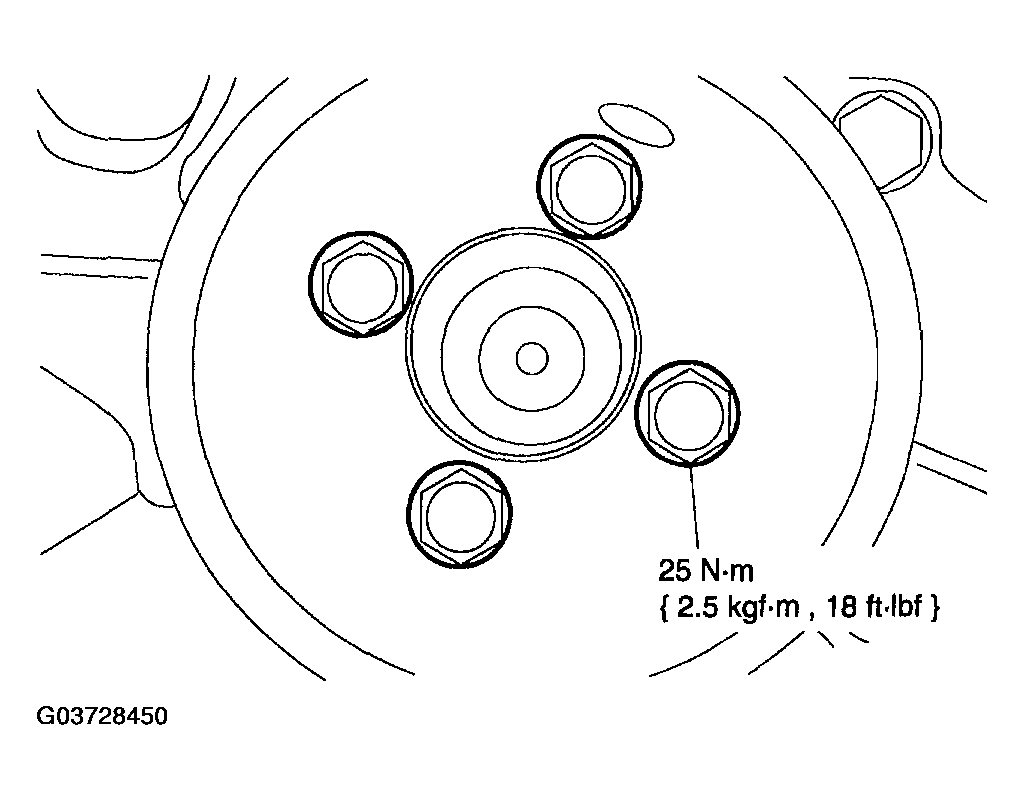

Fig 8: Installing Water Pump Pulley Bolts - With Torque Specification
Courtesy of MAZDA MOTORS CORP.
Install the fan shroud and fan. See COOLING FAN AND CLUTCH REMOVAL/INSTALLATION - 3.0L .
Install the drive belt. See DRIVE BELT REMOVAL/INSTALLATION - 3.0L .
Connect the negative battery cable.
Fill the engine with coolant and bleed the system. See ENGINE COOLANT REPLACEMENT - 3.0L .
