Front Door Removal/Installation: Notes

WARNING: This page is about a different car, the 2003 Mazda Protege5 and 2003 Mazda Protege. However, it is still accessible from the selected car via links, so may be relevant.

Disconnect the negative battery cable.
To remove the front door hinge, remove the front fender panel. (See FRONT FENDER PANEL REMOVAL/INSTALLATION .)
To remove the checker, remove the door speaker. (See FRONT DOOR SPEAKER REMOVAL/INSTALLATION .)
Remove in the order indicated in the table.

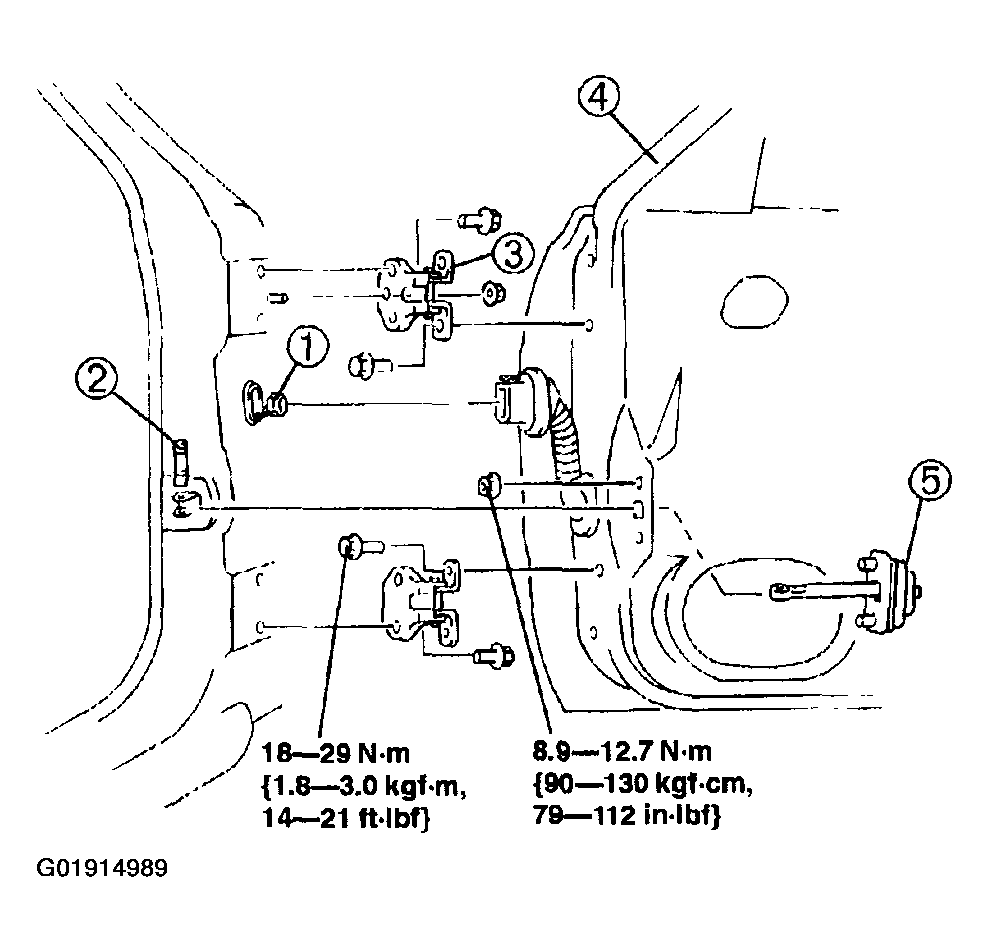

Fig 1: Identifying Removing Sequence Of Front Door (1 Of 2)
Courtesy of MAZDA MOTORS CORP.

Fig 2: Identifying Removing Sequence Of Front Door (2 Of 2)
Courtesy of MAZDA MOTORS CORP.
Install in the reverse order of removal.
Adjust the front door. (See FRONT DOOR ADJUSTMENT .)
