Front Fender Panel Removal/Installation

WARNING: This page is about a different car, the 2003 Mazda Protege5 and 2003 Mazda Protege. However, it is still accessible from the selected car via links, so may be relevant.

Disconnect the negative battery cable.
Remove the front combination light. (See FRONT COMBINATION LIGHT REMOVAL/INSTALLATION .)
Remove in the order indicated in the table.

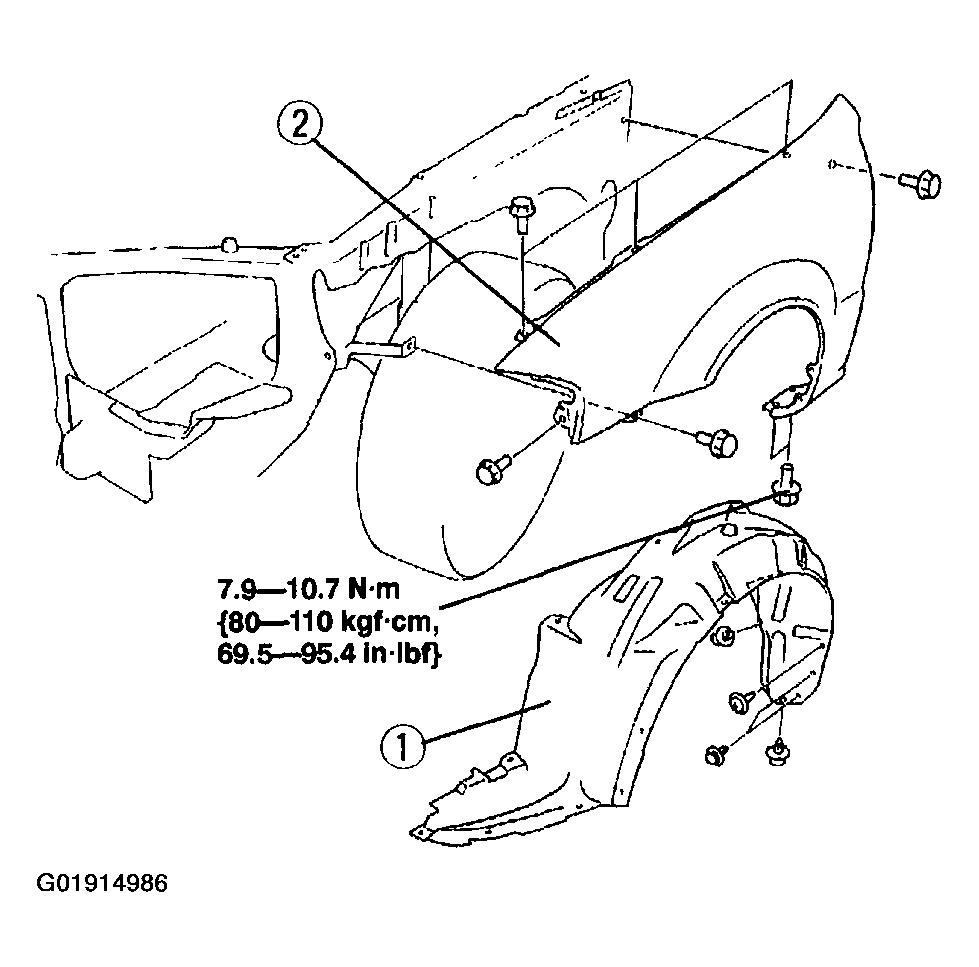

Fig 1: Identifying Removing Sequence Of Front Fender Panel (1 Of 2)
Courtesy of MAZDA MOTORS CORP.

Fig 2: Identifying Removing Sequence Of Front Fender Panel (2 Of 2)
Courtesy of MAZDA MOTORS CORP.
Install in the reverse order of removal.
Adjust the headlight aiming. (See HEADLIGHT ADJUSTMENT .)
