Front Door Speaker Removal/Installation

WARNING: This page is about a different car, the 2003 Mazda Protege5 and 2003 Mazda Protege. However, it is still accessible from the selected car via links, so may be relevant.
  1. Disconnect the negative battery cable.
  2. Remove the front door trim. (See FRONT DOOR TRIM REMOVAL/INSTALLATION .)
  3. Remove the screws.
  4. Disconnect the connector and remove the front door speaker.

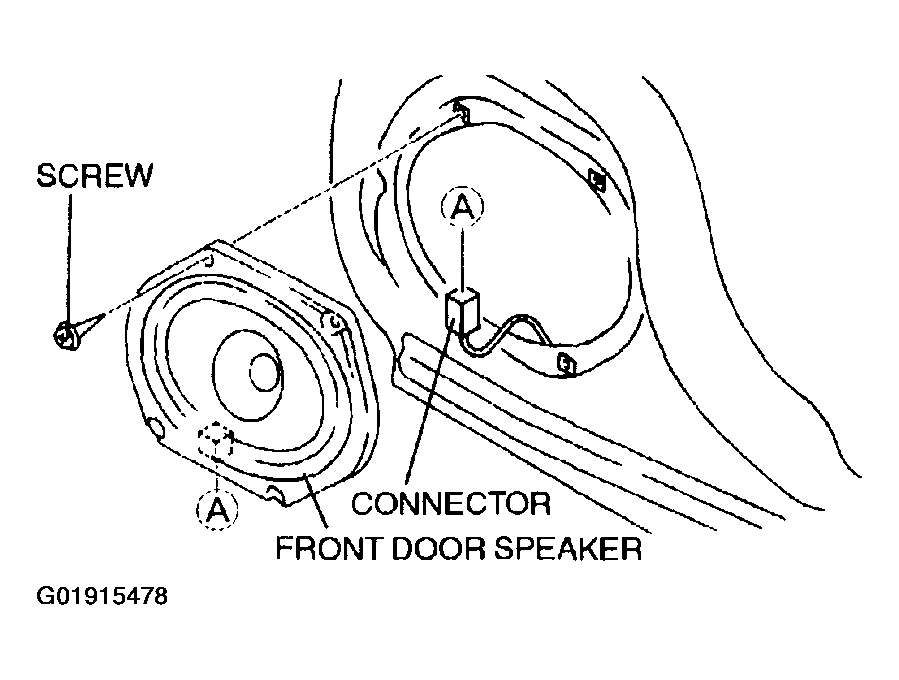

    Fig 1: Removing Front Door Speaker
    G01915478Courtesy of MAZDA MOTORS CORP.
  5. Install in the reverse order of removal.
