Removal and Installation

  1. Remove the drive belt. For additional information, refer to BELT ROUTING .

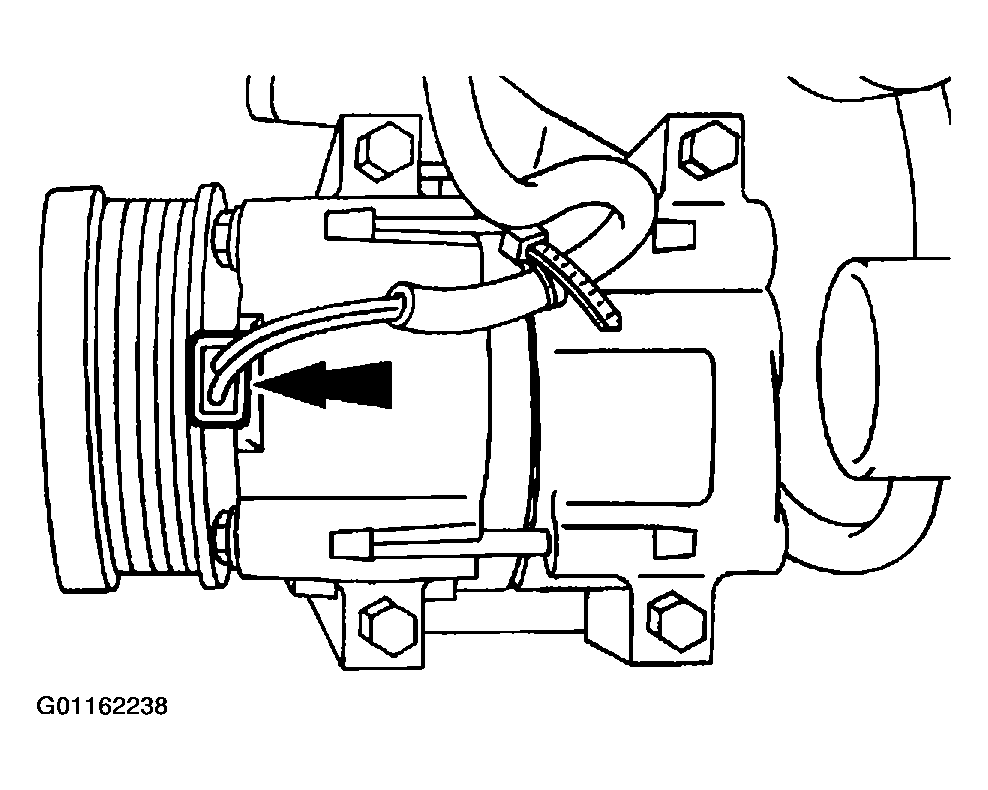

    Fig 1: Disconnecting/Connecting A/C Clutch Field Coil Electrical Connector
    G01162238Courtesy of MAZDA MOTORS CORP.
  2. Disconnect the A/C clutch field coil electrical connector.

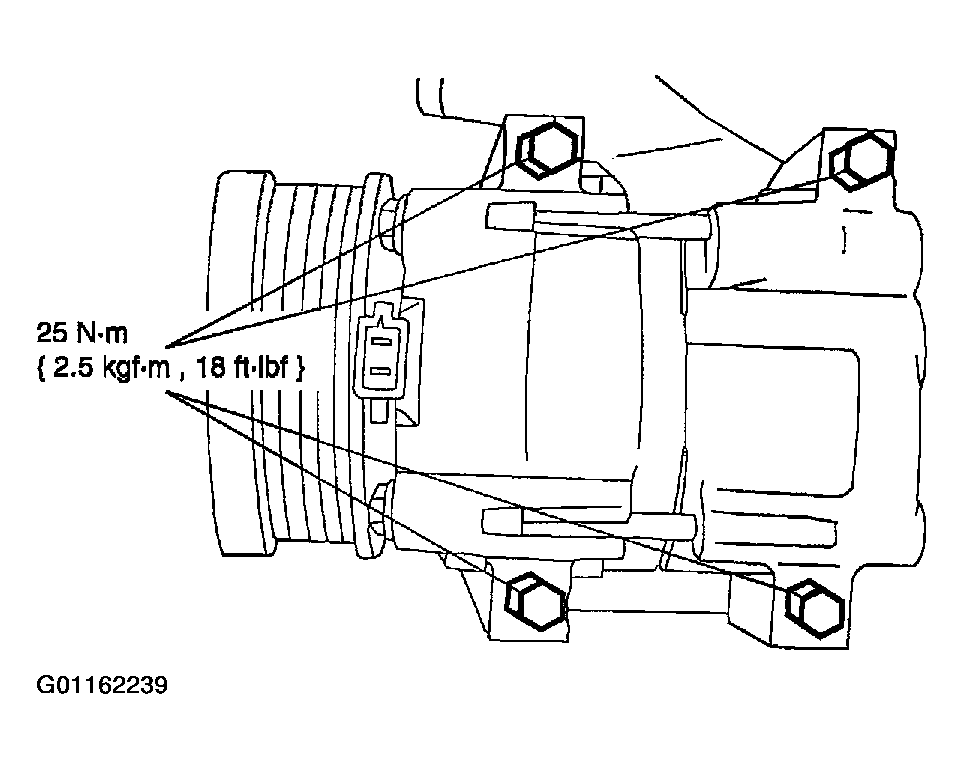

    Fig 2: Removing/Installing A/C Compressor Bolts & Positioning Aside
    G01162239Courtesy of MAZDA MOTORS CORP.
  3. Remove the bolts and position the A/C compressor aside.

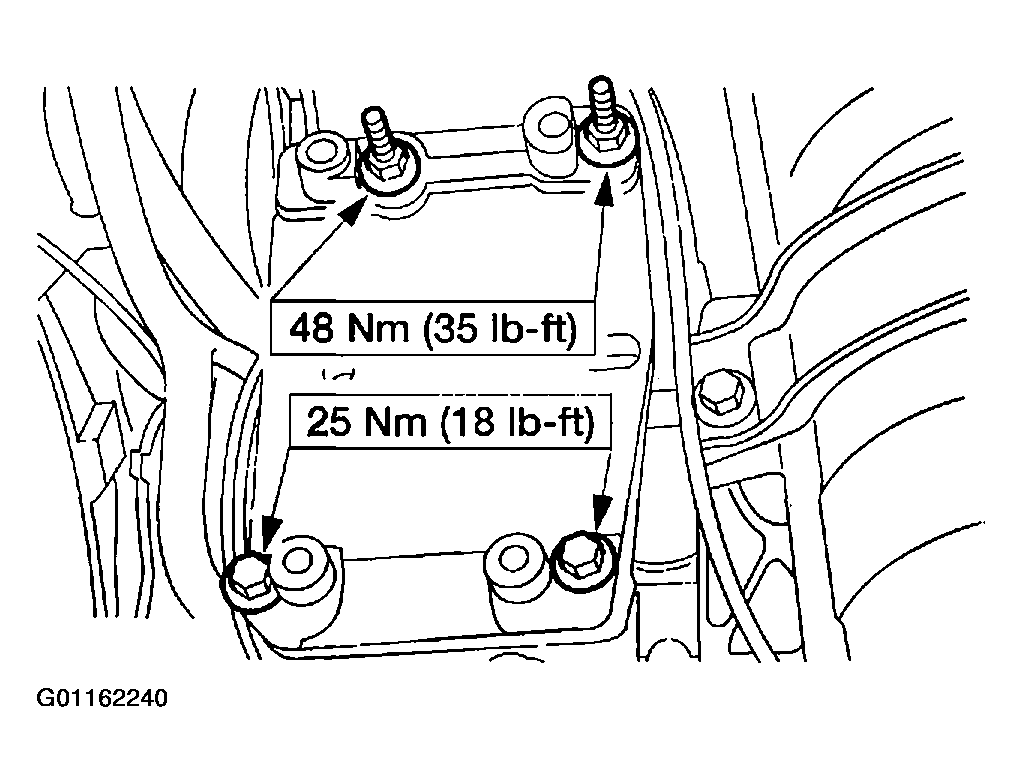

    Fig 3: Removing/Installing Nuts, Bolts, & The A/C Compressor Bracket
    G01162240Courtesy of MAZDA MOTORS CORP.
  4. Remove the nuts, the bolts, and the A/C compressor bracket.
  5. To install, reverse the removal procedure.
