Ignition Coil Removal/Installation

WARNING: This page is about a different car, the 2003 Mazda 6. However, it is still accessible from the selected car via links, so may be relevant.
  1. Disconnect the negative battery cable.
  2. Remove the plug hole plate. (See PLUG HOLE PLATE REMOVAL/INSTALLATION .)
  3. Remove in the order indicated in the figure.
    Fig 1: Removing/Installing Ignition Coil (Legend)
    G01929997Courtesy of MAZDA MOTORS CORP.

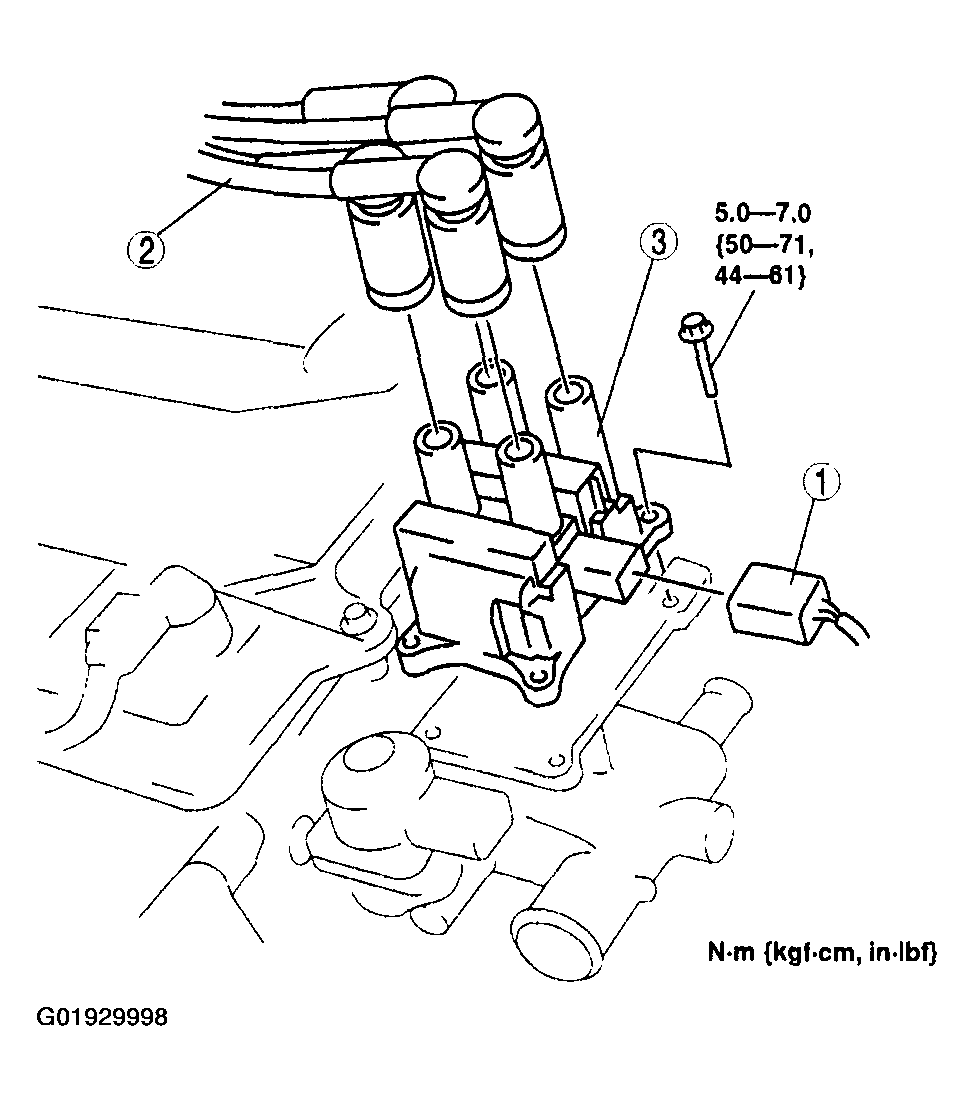

    Fig 2: Removing/Installing Ignition Coil
    G01929998Courtesy of MAZDA MOTORS CORP.
  4. Install in the reverse order of removal.
