Plug Hole Plate Removal/Installation

WARNING: This page is about a different car, the 2003 Mazda 6. However, it is still accessible from the selected car via links, so may be relevant.
    NOTE:
    • Lift off and remove the plug hole plate from the installation areas (rubber and clips) as shown in the figure.
      Fig 1: Identifying Rubber & Clip
      G01929530Courtesy of MAZDA MOTORS CORP.

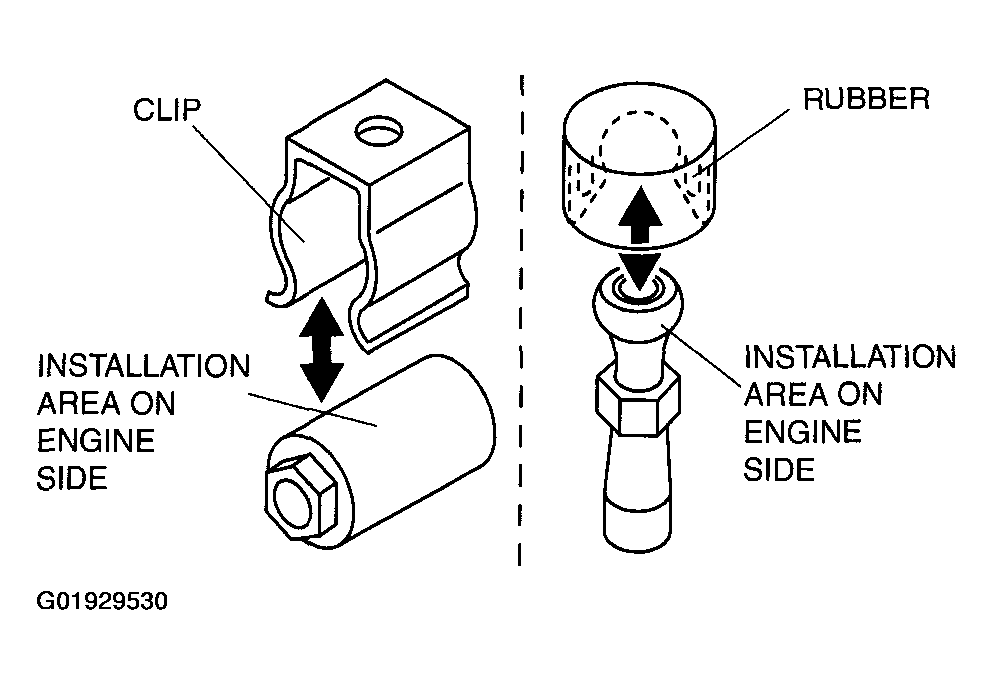

    Fig 2: Removing Plug Hole Plate
    G01929529Courtesy of MAZDA MOTORS CORP.
  1. Remove the plug hole plate.
  2. Install the plug hole plate.
    1. To position the plug hole plate, grasp rubber 1 and 2, as shown in the figure, with your hands and press them in.
    2. Grasp rubber 3 with your hand and press it in.
    3. Grasp clips 4 and 5 with your hands and press them in.

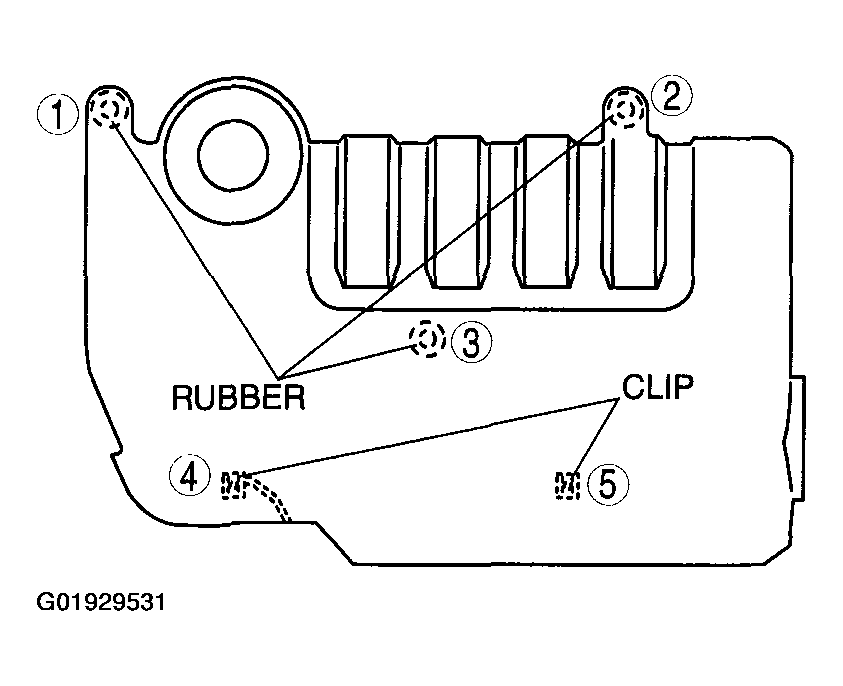

    Fig 3: Installing Plug Hole Plate
    G01929531Courtesy of MAZDA MOTORS CORP.
