Oil Cooler Removal/Installation: Notes

WARNING: This page is about a different car, the 2005 Mazda RX-8. However, it is still accessible from the selected car via links, so may be relevant.
WARNING:
  • Remove and install all parts when the engine is cold, otherwise they can cause severe burns or serious injury.
  1. Remove the engine cover. (See ENGINE COVER REMOVAL/INSTALLATION .)
  2. Remove the battery cover.
  3. Disconnect the negative battery cable. (See BATTERY REMOVAL/INSTALLATION .)
  4. Remove the following.
    1. Front tire (LH)
    2. Front tire (RH) (with twin oil cooler)
    3. Splash shield
    4. Under cover
  5. Remove in the order indicated in the table.
  6. Install in the reverse order of removal.
  7. Add engine oil. (See ENGINE OIL REPLACEMENT .)
  8. Start the engine and confirm that there is no oil leakage from areas worked on.
    • If there is any oil leakage, find the cause and repair or replace the applicable part.
  9. Inspect the oil level. (See ENGINE OIL LEVEL INSPECTION .)

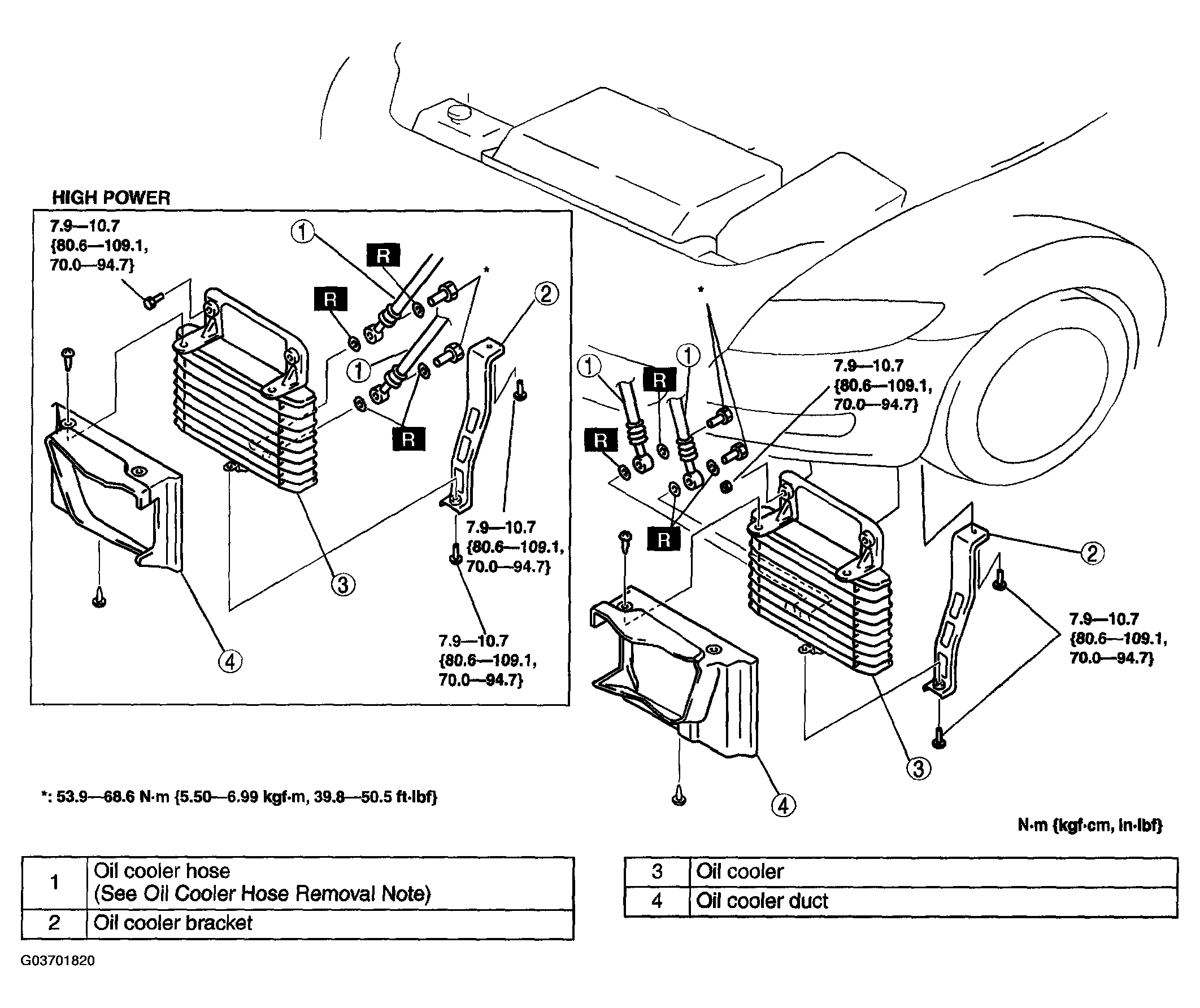

    Fig 1: Exploded View Of Oil Cooler With Torque Specifications
    G03701820Courtesy of MAZDA MOTORS CORP.
