Engine Cover Removal/Installation

WARNING: This page is about a different car, the 2005 Mazda RX-8. However, it is still accessible from the selected car via links, so may be relevant.
  1. Remove in the order shown in the figure.
  2. Install in the reverse order of removal.

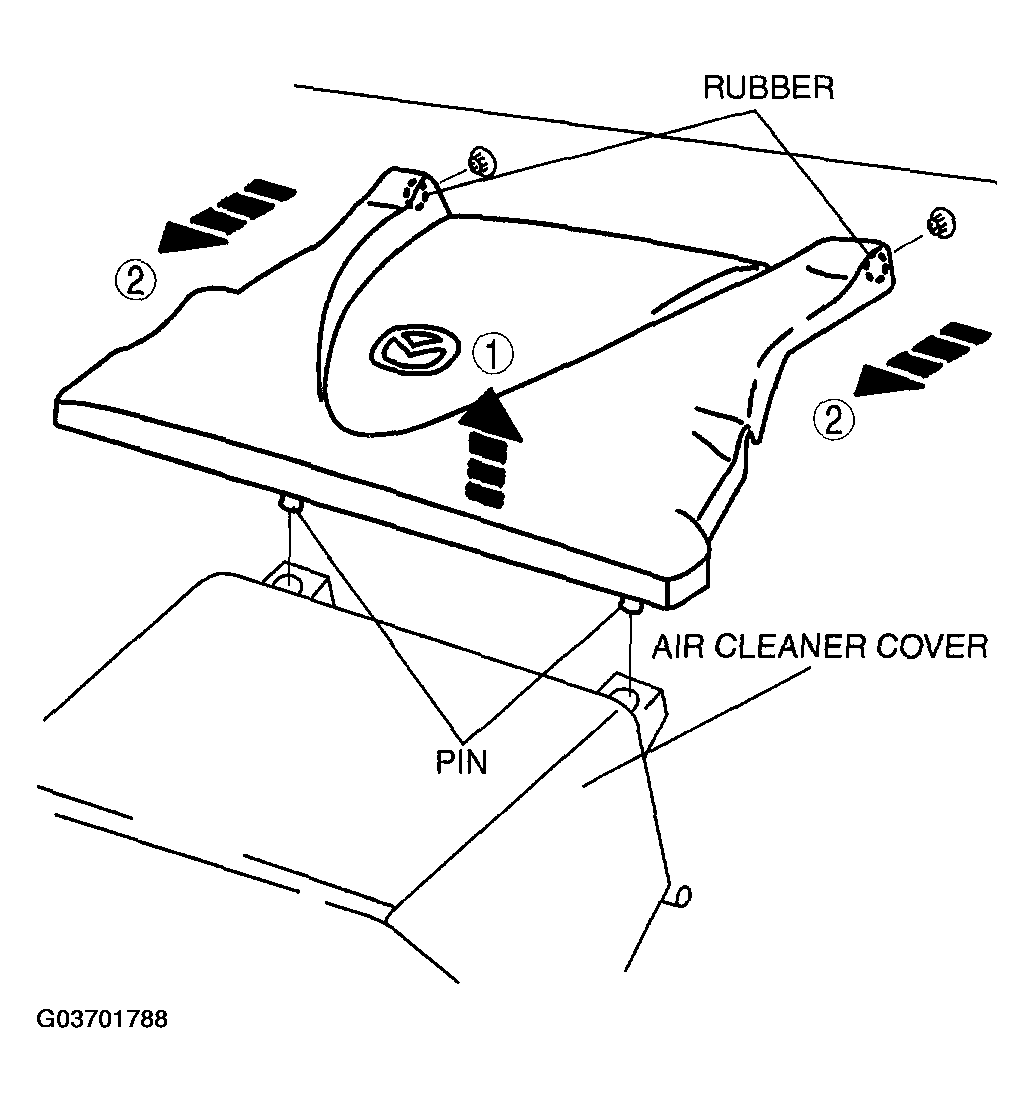

    Fig 1: Removing Engine Cover
    G03701788Courtesy of MAZDA MOTORS CORP.
