Pinpoint Test 5: Insufficient A/C Cooling

WARNING: This page is about a different car, the 2002 Mazda B4000, 2002 Mazda B3000, and 2002 Mazda B2300. However, it is still accessible from the selected car via links, so may be relevant.
NOTE: Make sure the heater control valve is functioning correctly before proceeding with this test. See PINPOINT TEST 2: INSUFFICIENT, ERRATIC OR NO HEAT  for information regarding the heater control valve operation.

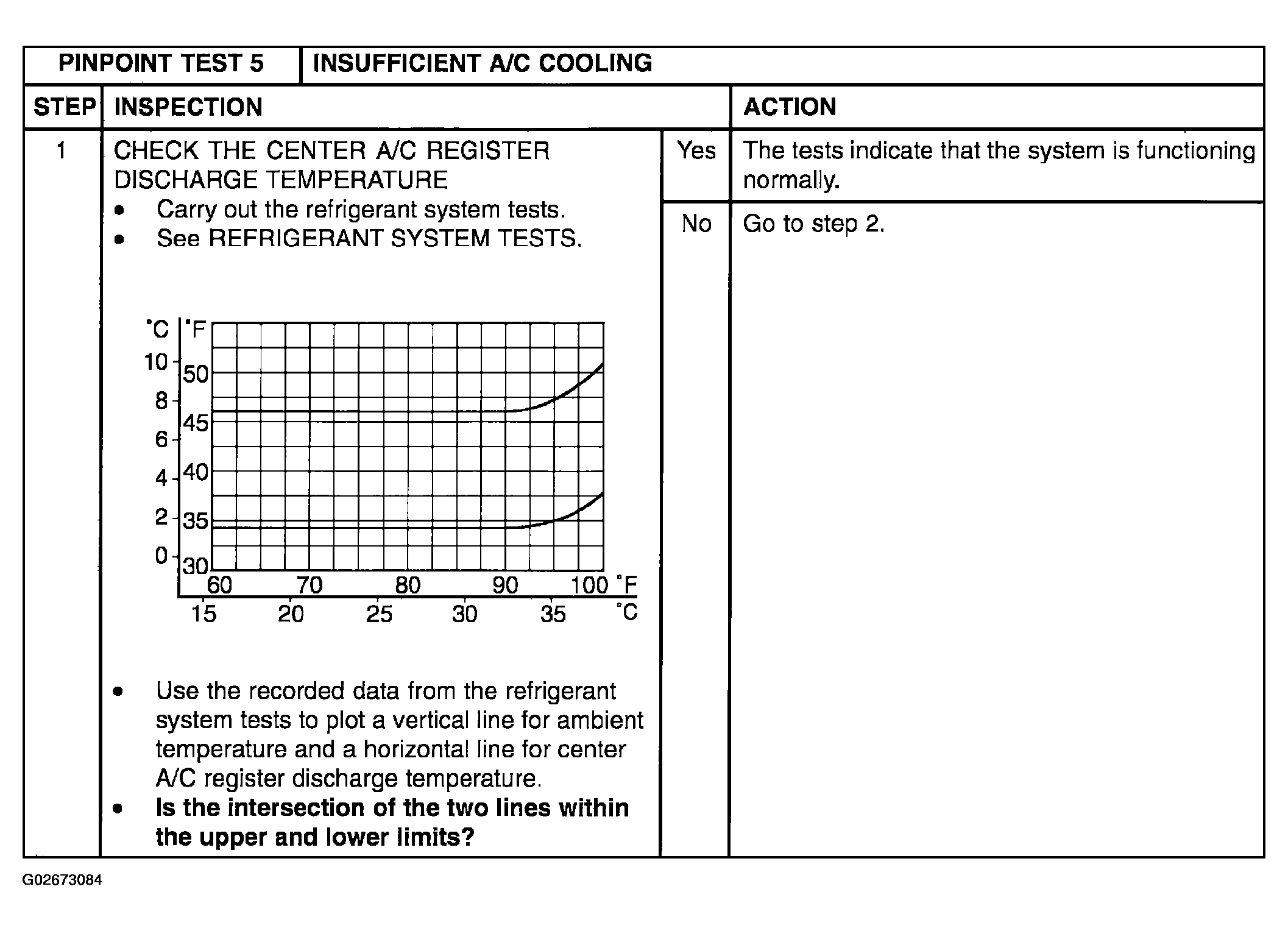

Fig 1: Pinpoint Test 5: Insufficient A/C Cooling (Step 1)
G02673084Courtesy of MAZDA MOTORS CORP.

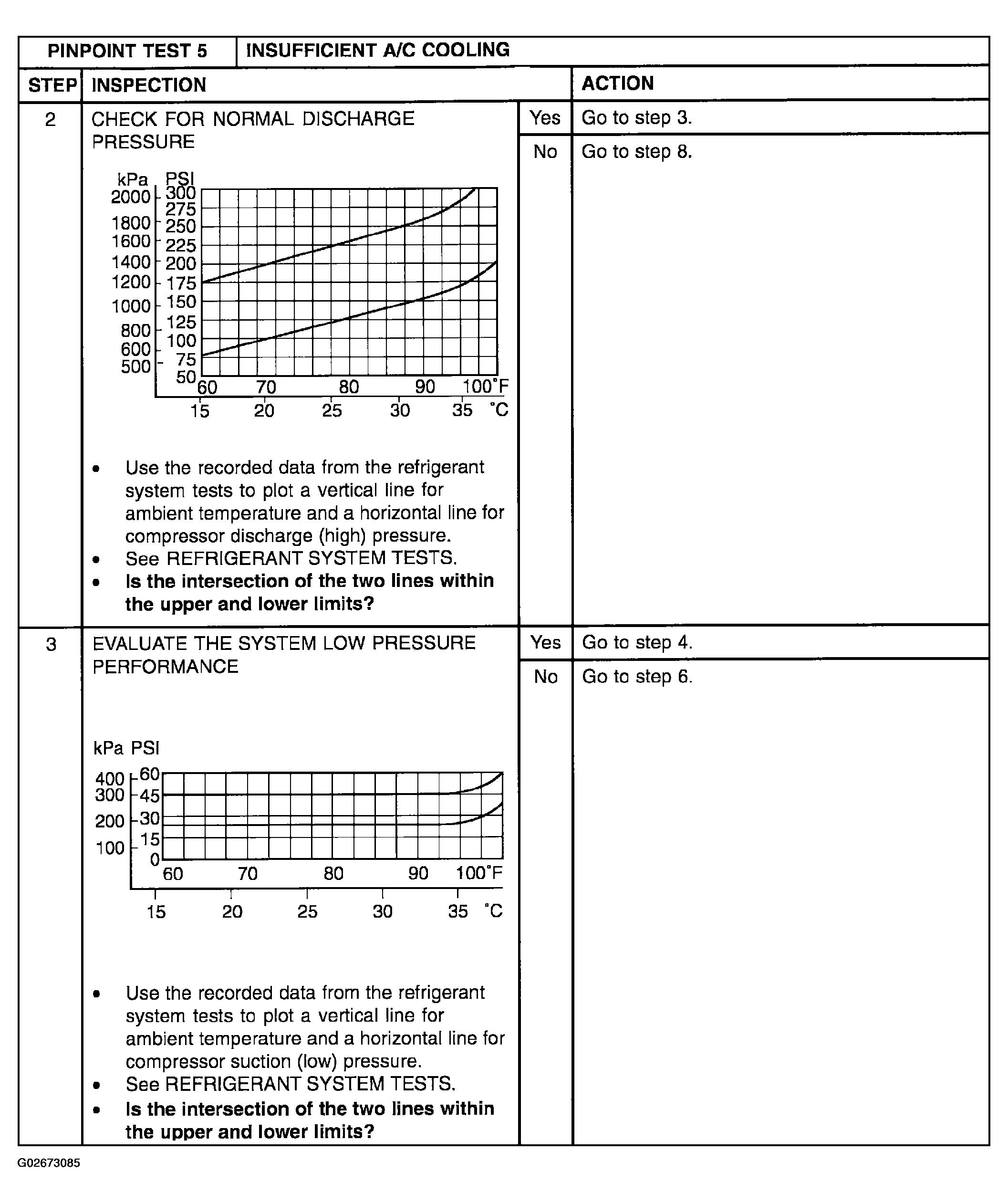

Fig 2: Pinpoint Test 5: Insufficient A/C Cooling (Steps 2-3)
G02673085Courtesy of MAZDA MOTORS CORP.

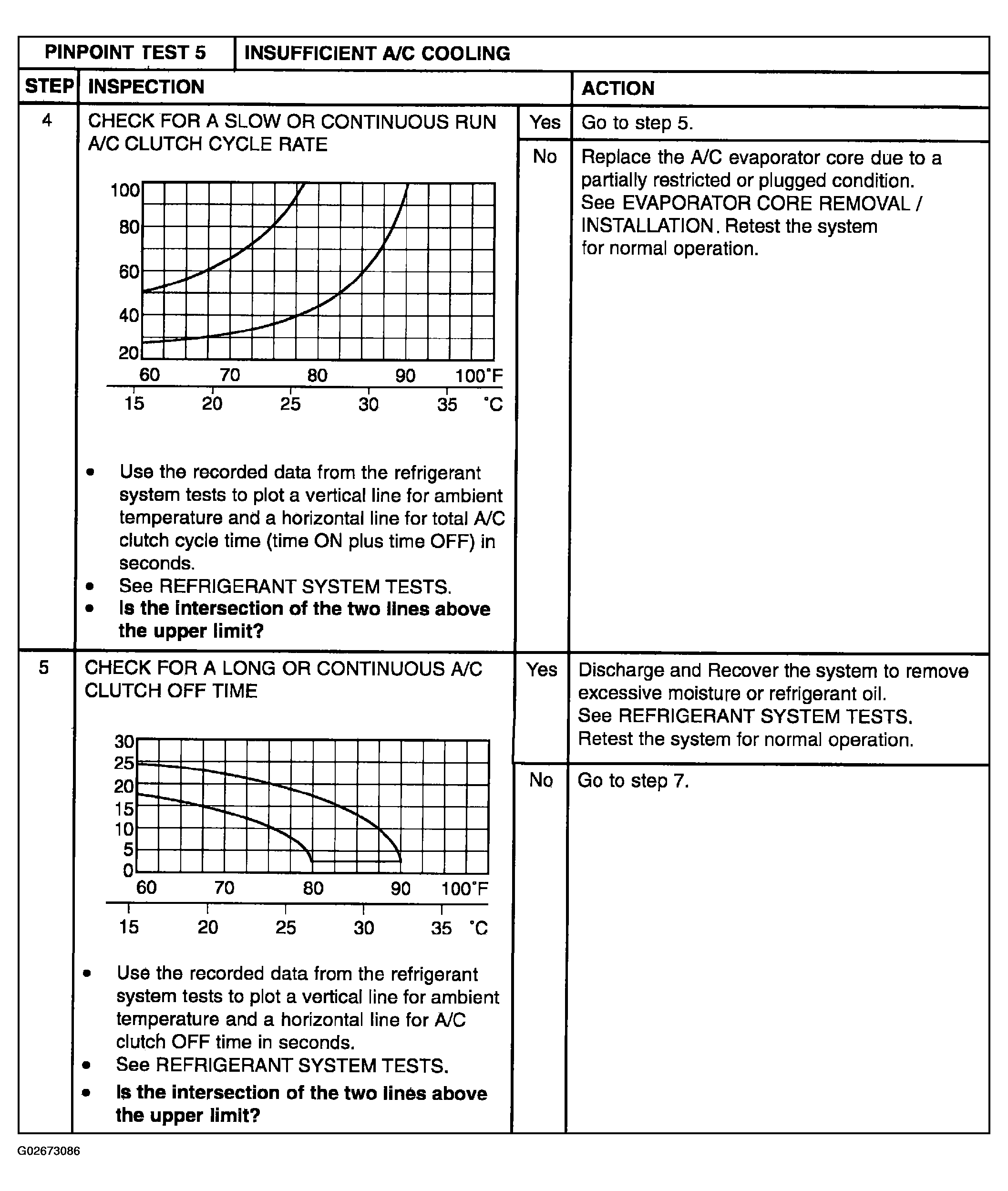

Fig 3: Pinpoint Test 5: Insufficient A/C Cooling (Steps 4-5)
G02673086Courtesy of MAZDA MOTORS CORP.

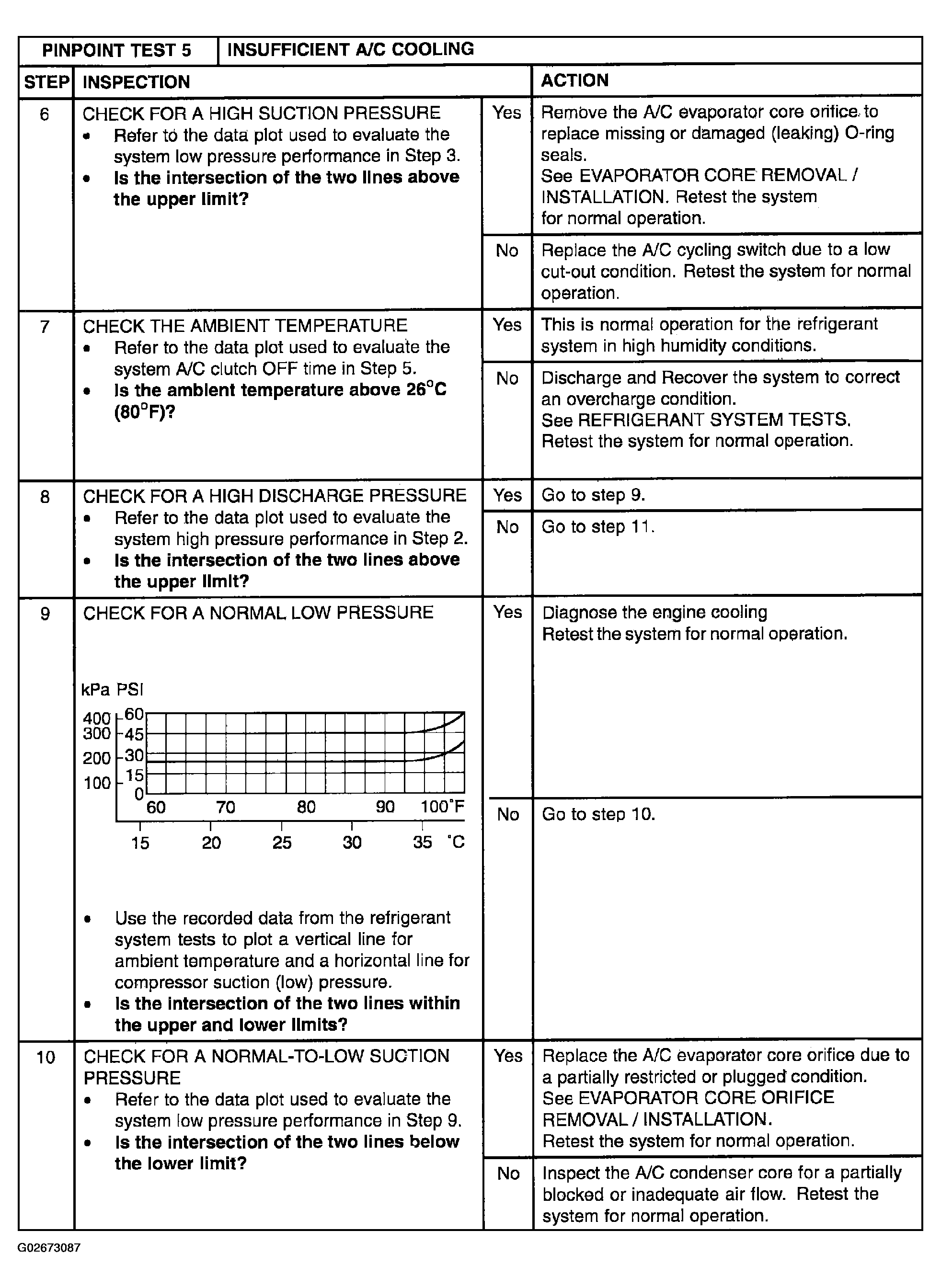

Fig 4: Pinpoint Test 5: Insufficient A/C Cooling (Steps 6-10)
G02673087Courtesy of MAZDA MOTORS CORP.

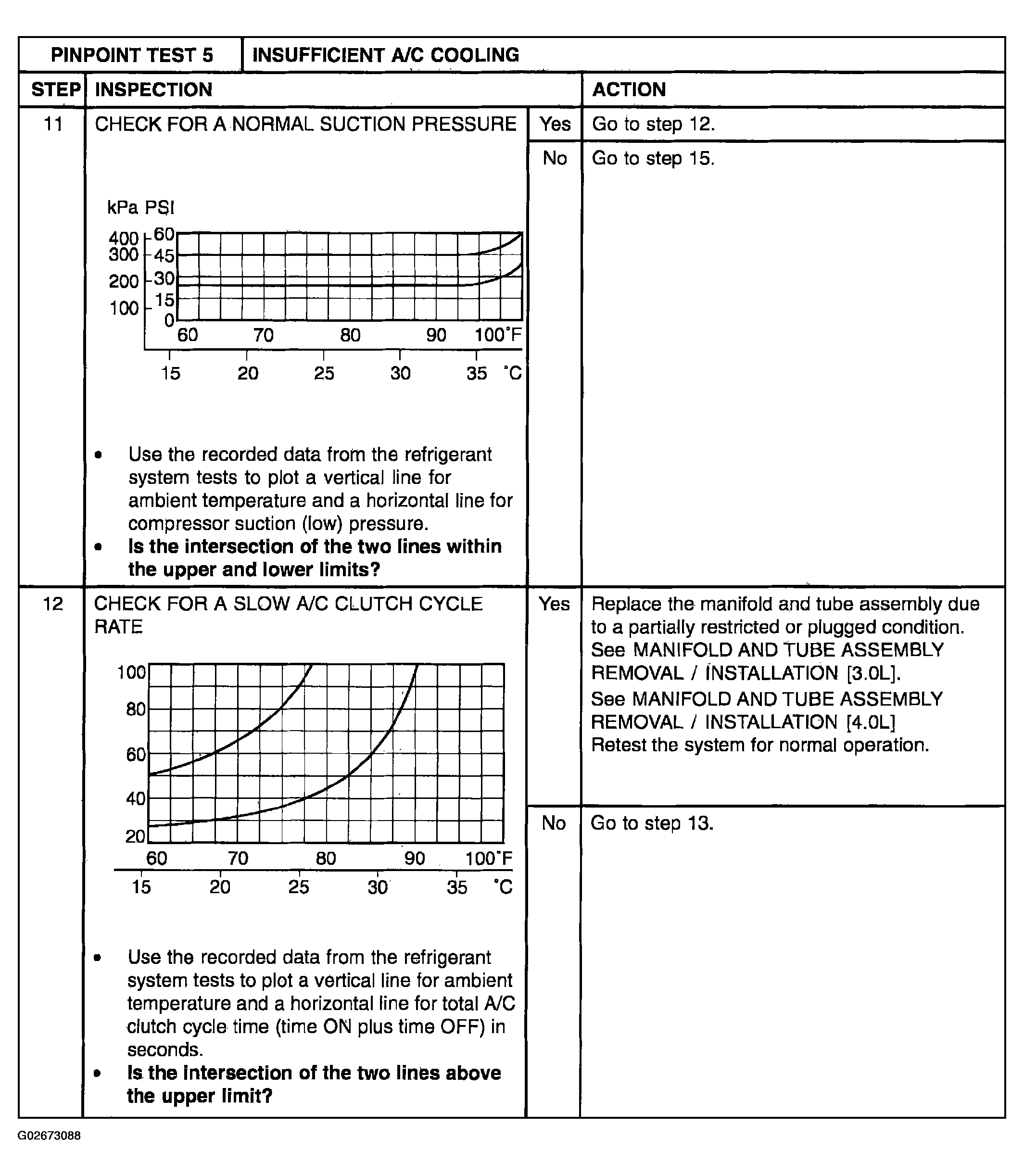

Fig 5: Pinpoint Test 5: Insufficient A/C Cooling (Steps 11-12)
G02673088Courtesy of MAZDA MOTORS CORP.

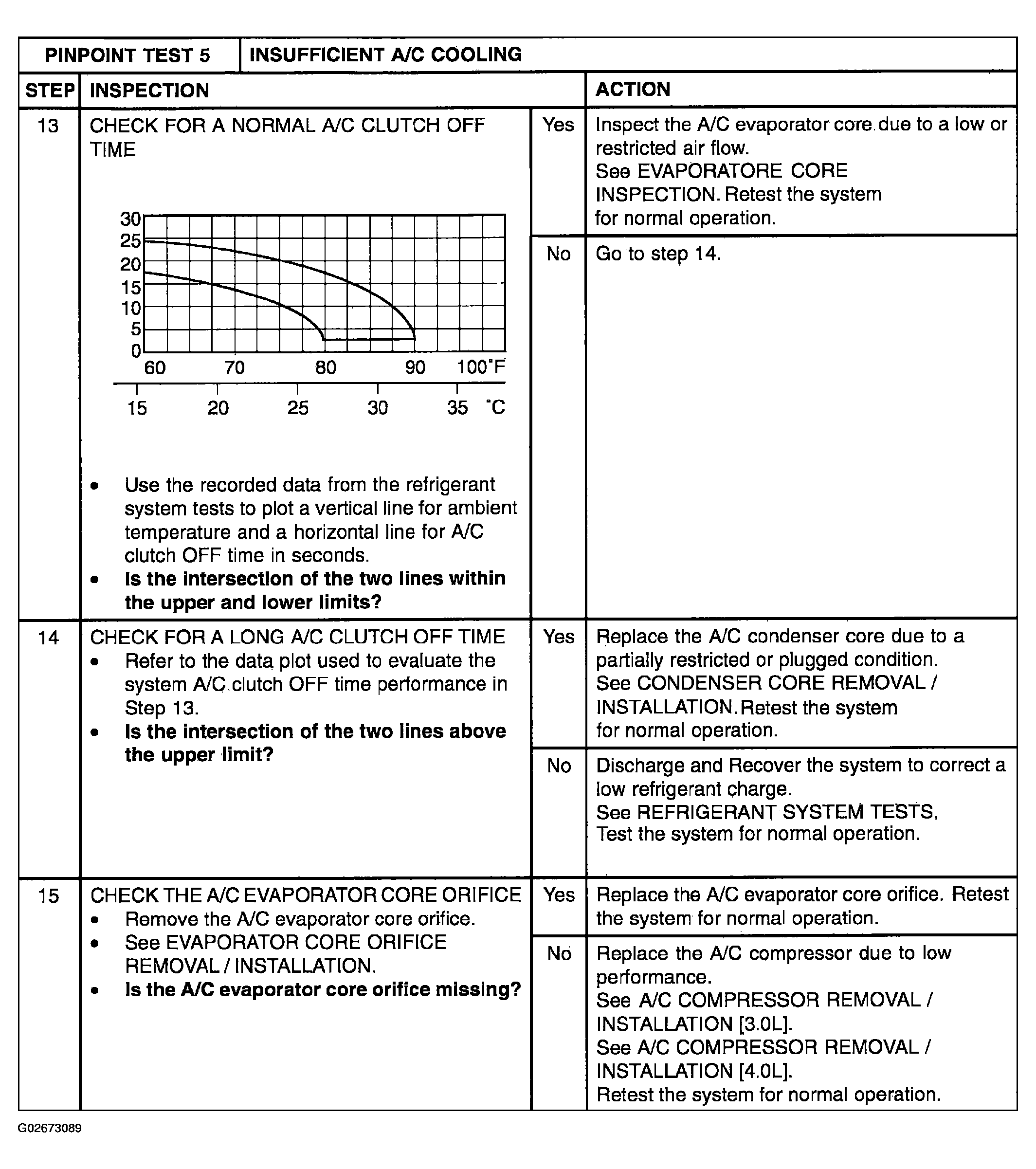

Fig 6: Pinpoint Test 5: Insufficient A/C Cooling (Steps 13-15)
G02673089Courtesy of MAZDA MOTORS CORP.
