WARNING: This page is about a different car, the 2002 Mazda B4000, 2002 Mazda B3000, and 2002 Mazda B2300. However, it is still accessible from the selected car via links, so may be relevant.

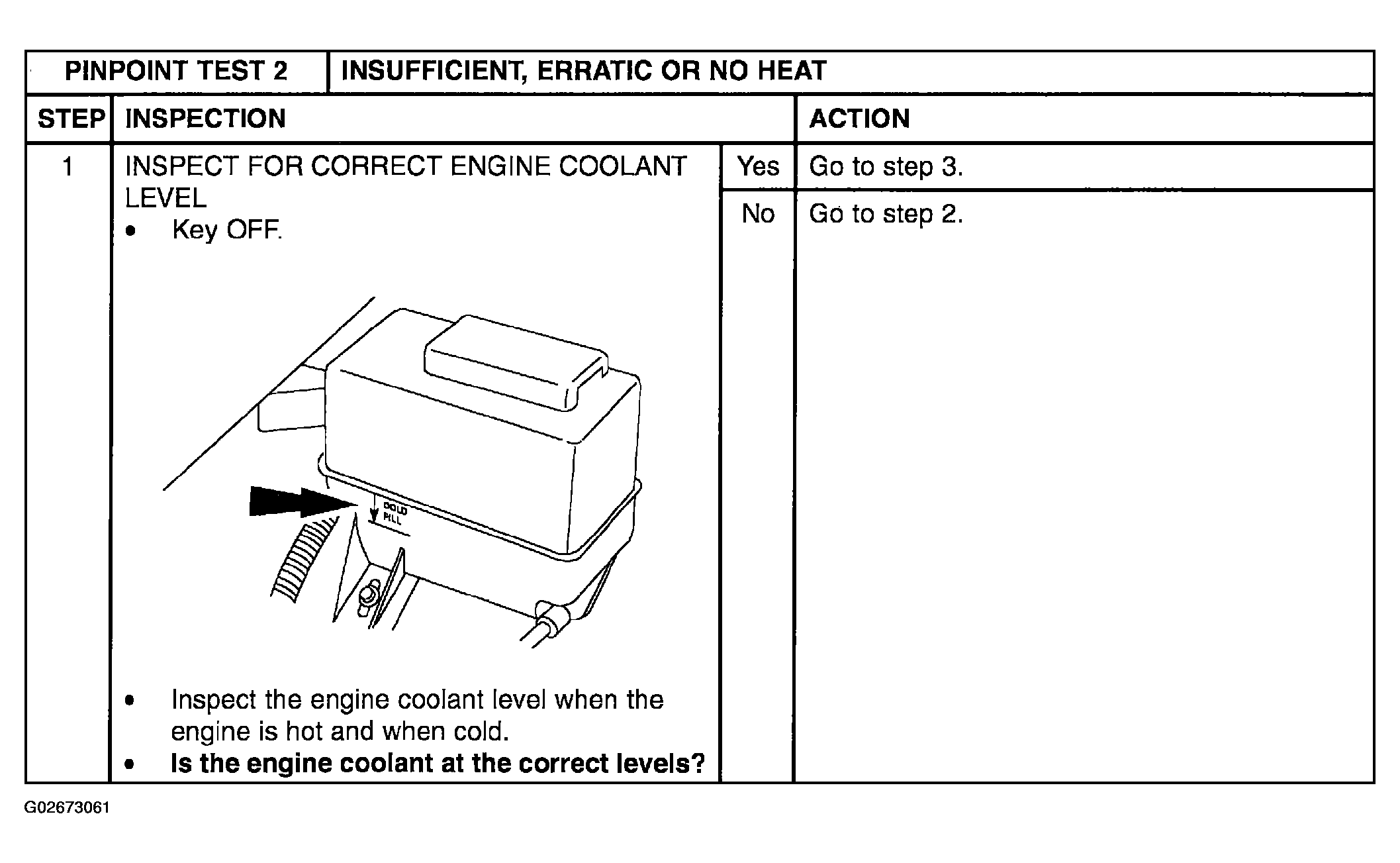

Fig 1: Pinpoint Test 2: Insufficient, Erratic Or No Heat (Step 1)
Courtesy of MAZDA MOTORS CORP.

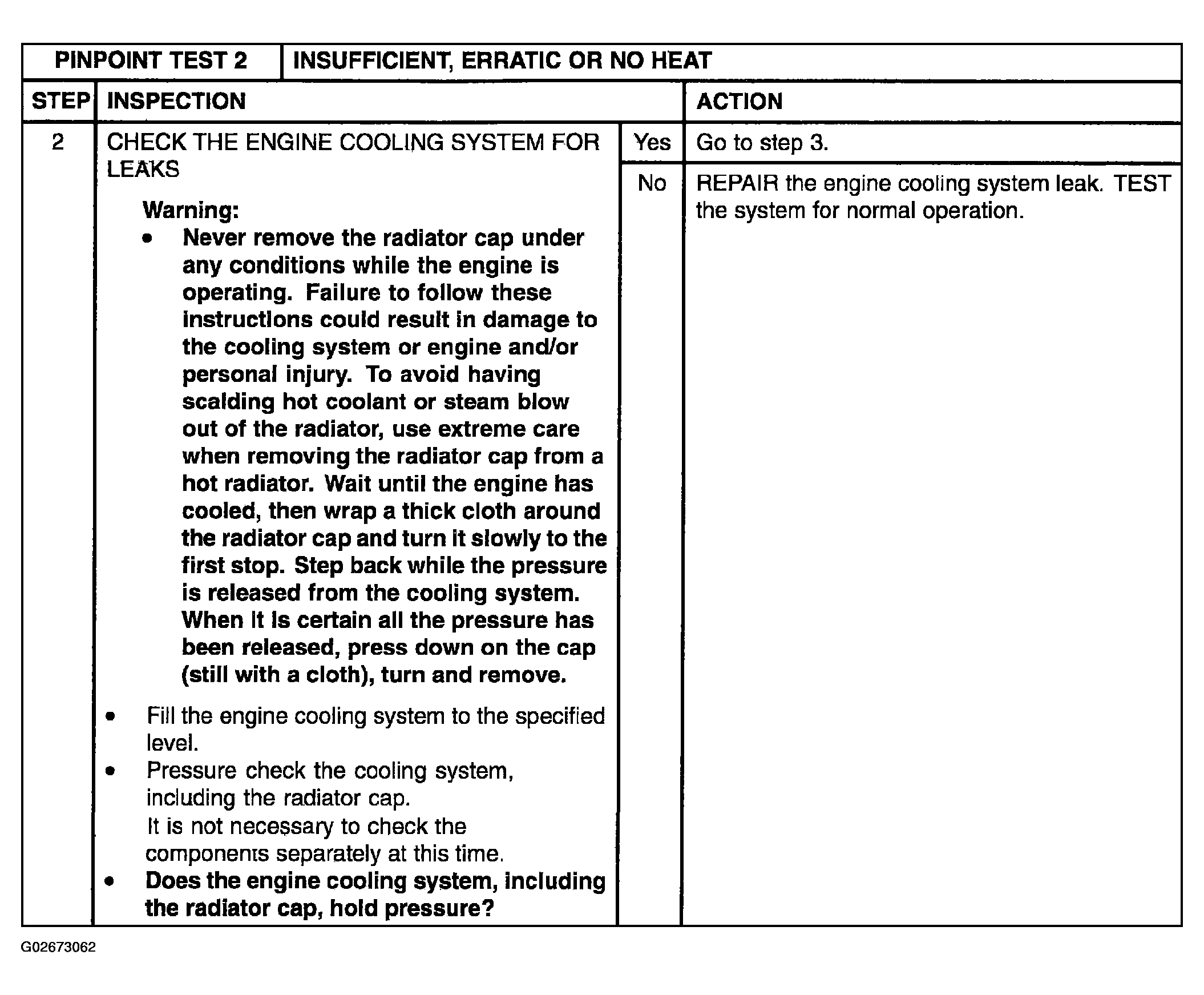

Fig 2: Pinpoint Test 2: Insufficient, Erratic Or No Heat (Step 2)
Courtesy of MAZDA MOTORS CORP.

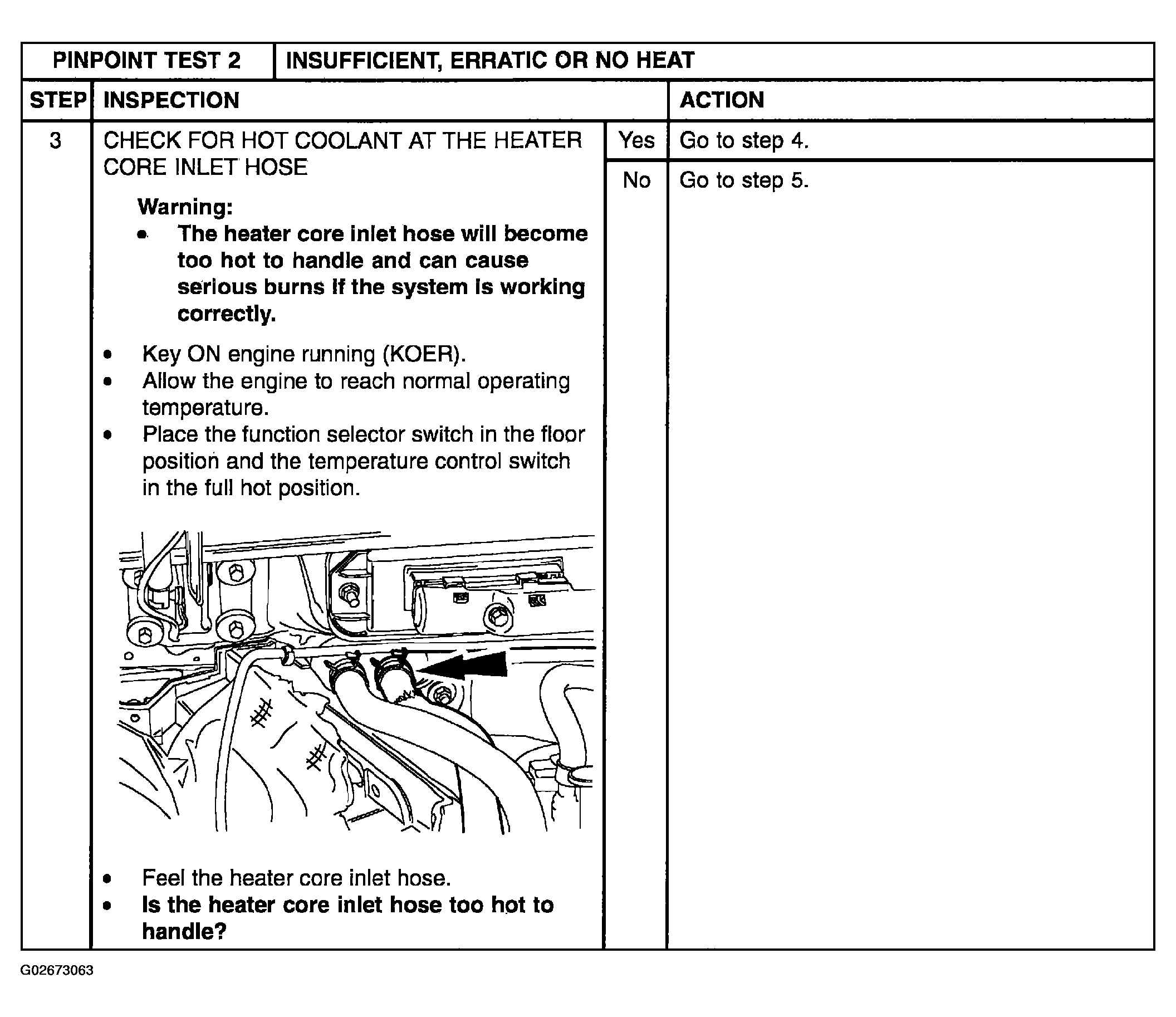

Fig 3: Pinpoint Test 2: Insufficient, Erratic Or No Heat (Step 3)
Courtesy of MAZDA MOTORS CORP.

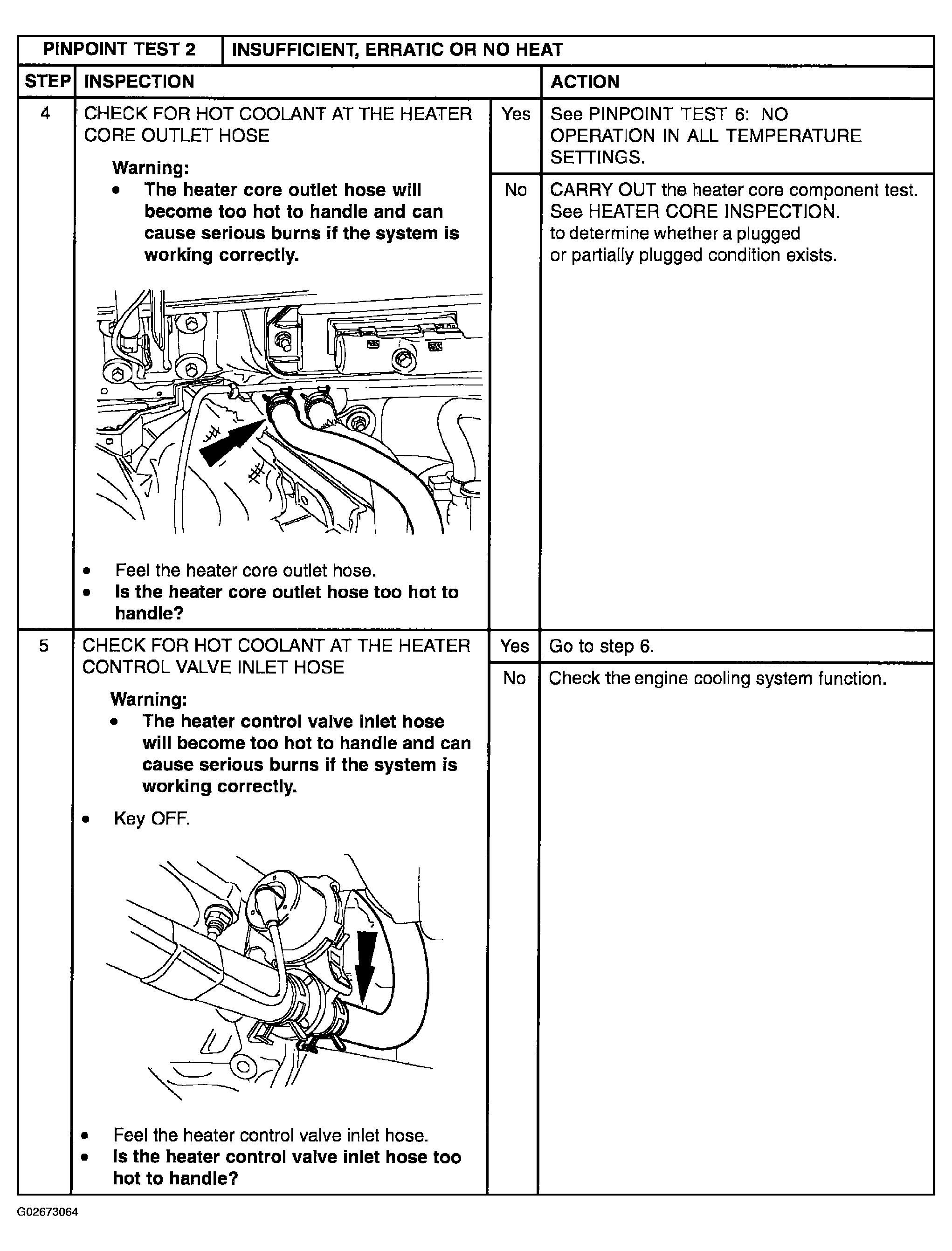

Fig 4: Pinpoint Test 2: Insufficient, Erratic Or No Heat (Steps 4-5)
Courtesy of MAZDA MOTORS CORP.

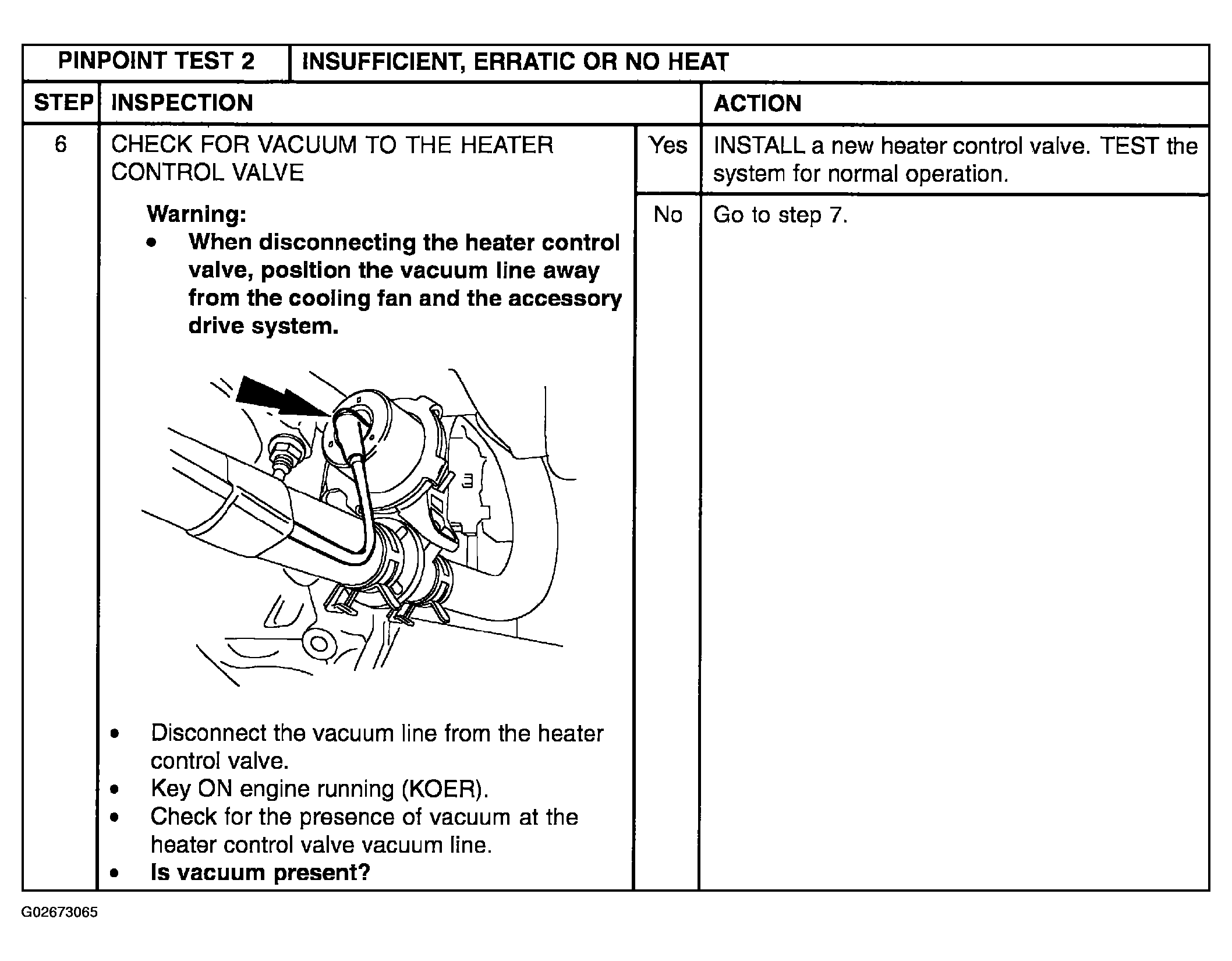

Fig 5: Pinpoint Test 2: Insufficient, Erratic Or No Heat (Step 6)
Courtesy of MAZDA MOTORS CORP.

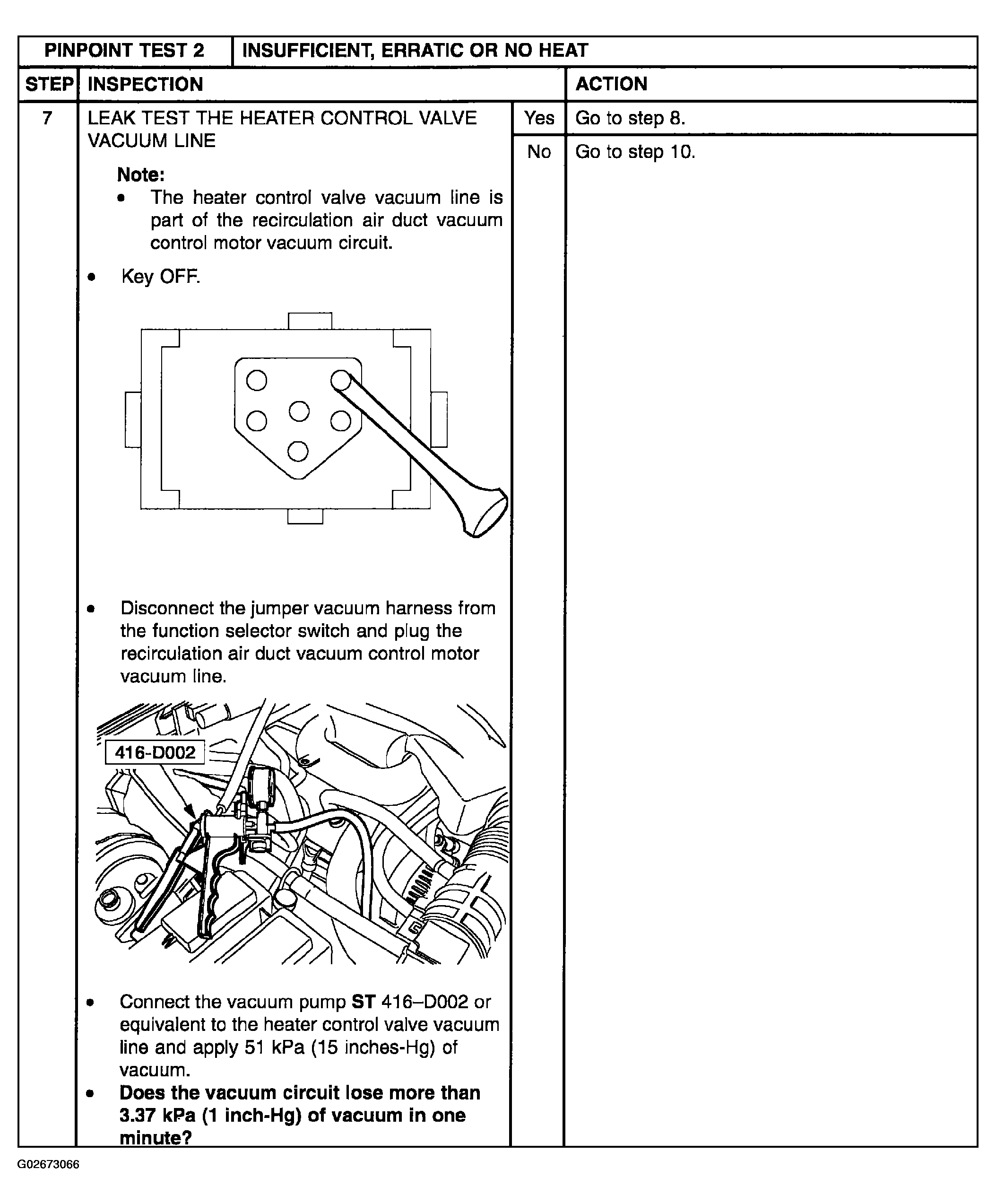

Fig 6: Pinpoint Test 2: Insufficient, Erratic Or No Heat (Step 7)
Courtesy of MAZDA MOTORS CORP.

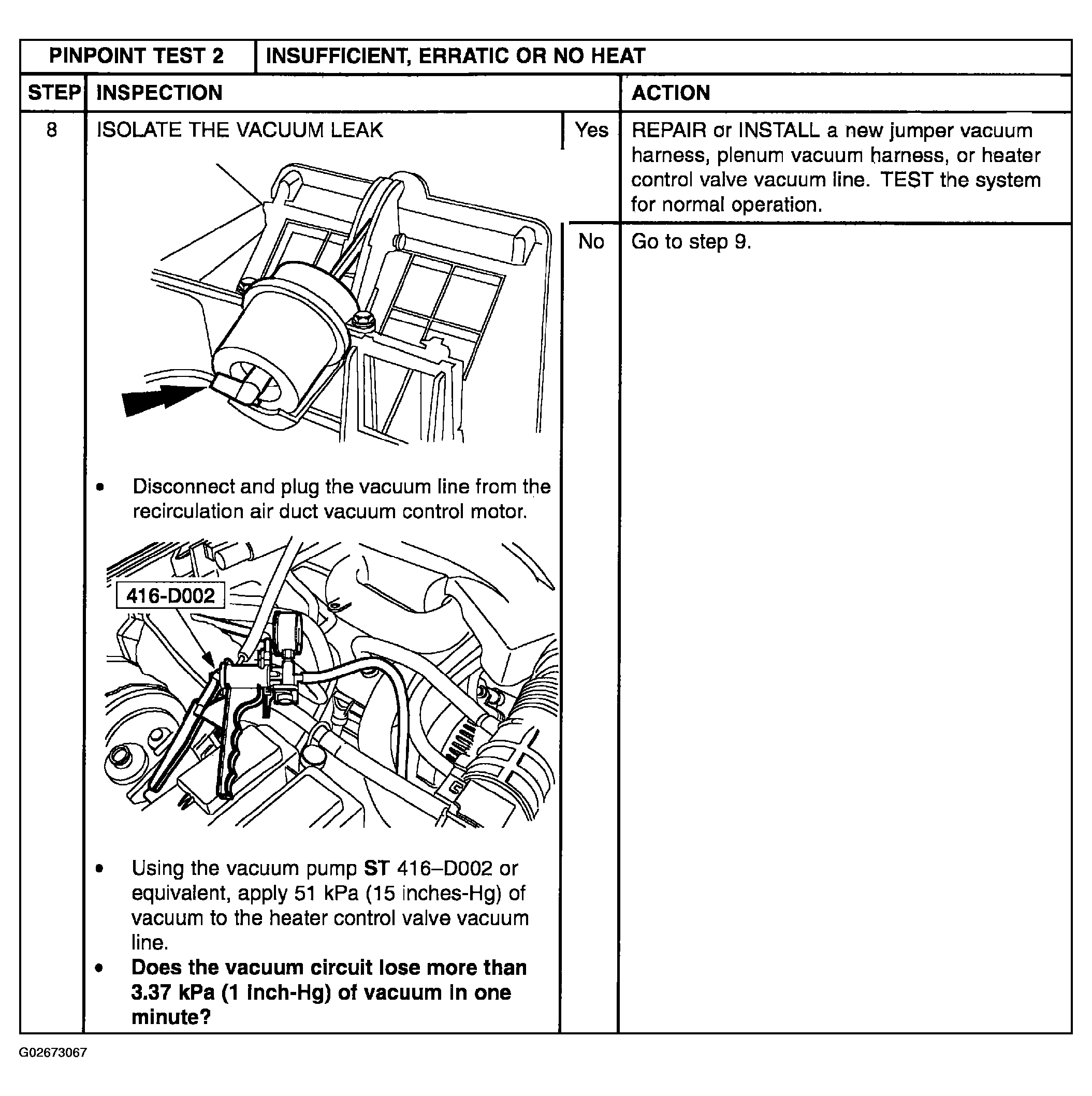

Fig 7: Pinpoint Test 2: Insufficient, Erratic Or No Heat (Step 8)
Courtesy of MAZDA MOTORS CORP.

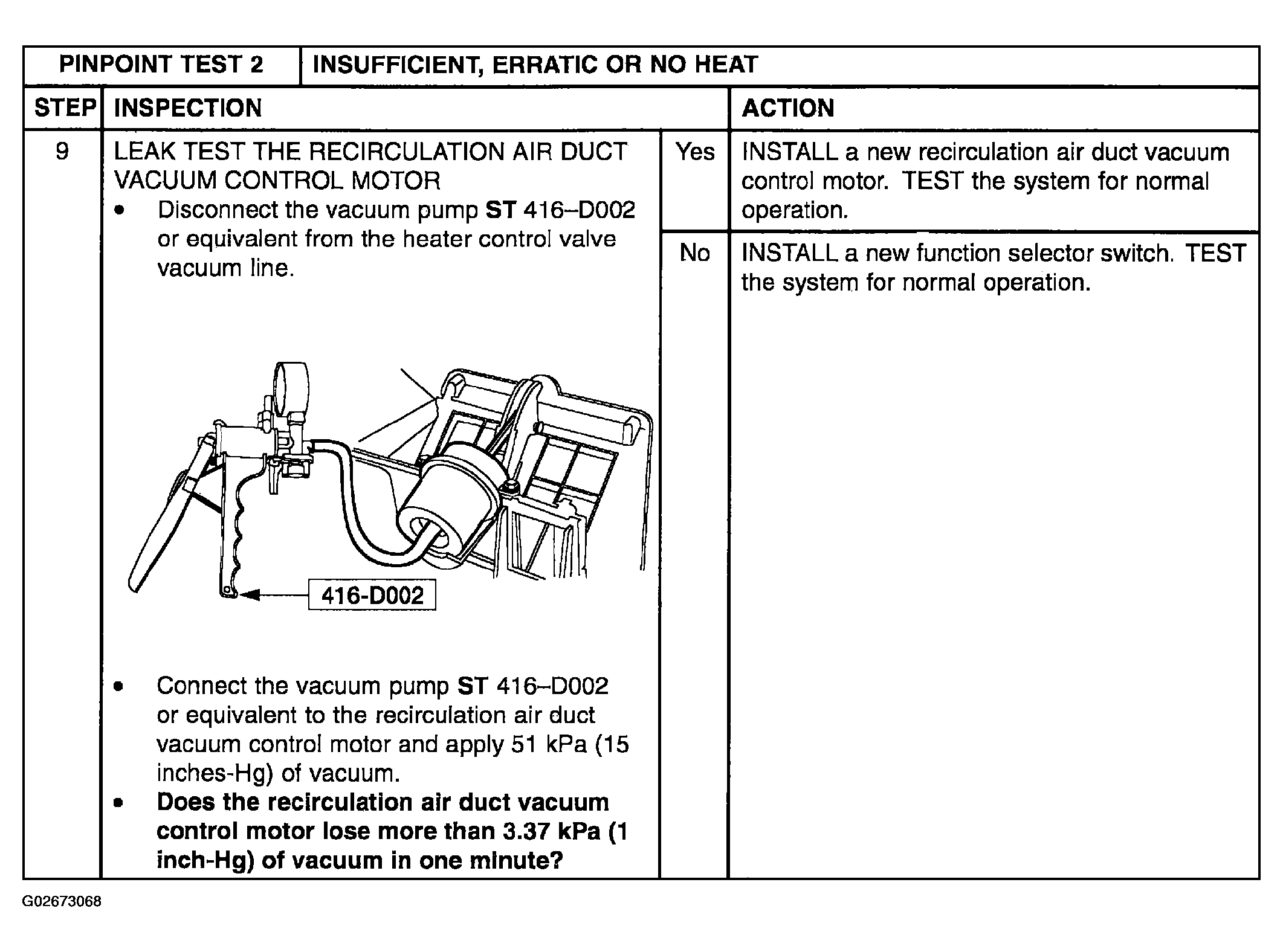

Fig 8: Pinpoint Test 2: Insufficient, Erratic Or No Heat (Step 9)
Courtesy of MAZDA MOTORS CORP.

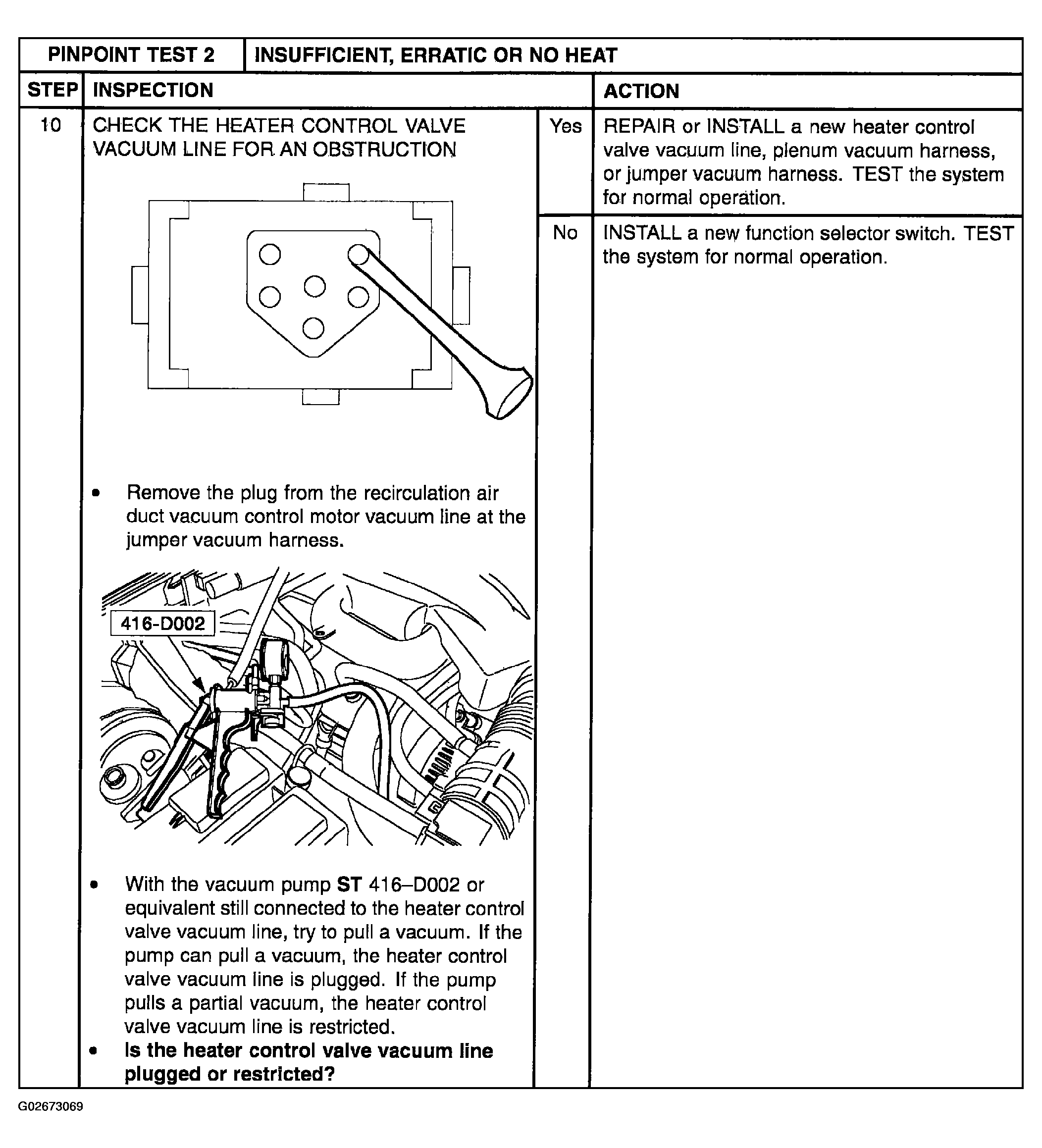

Fig 9: Pinpoint Test 2: Insufficient, Erratic Or No Heat (Step 10)
