Air Inlet Duct Door Removal/Installation

WARNING: This page is about a different car, the 2002 Mazda B4000, 2002 Mazda B3000, and 2002 Mazda B2300. However, it is still accessible from the selected car via links, so may be relevant.
  1. Remove the plenum chamber; see PLENUM CHAMBER REMOVAL/INSTALLATION  .
  2. Remove the screws from the air inlet duct door vacuum control motor and disconnect the vacuum hose.

    Tightening Torque

    2-3 N.m {20-30 kgf.Cm, 18-26 in.lbf}.

  3. Rotate the vacuum control motor up, disengage the lever and remove the vacuum control motor.
  4. Remove the screws and remove the air inlet duct cover.

    Tightening Torque

    2-3 N.m {20-30 kgf.Cm, 18-26 in.lbf}.

  5. Remove the pin and remove the air inlet duct door.
    1. Lubricate all hoses and fittings.

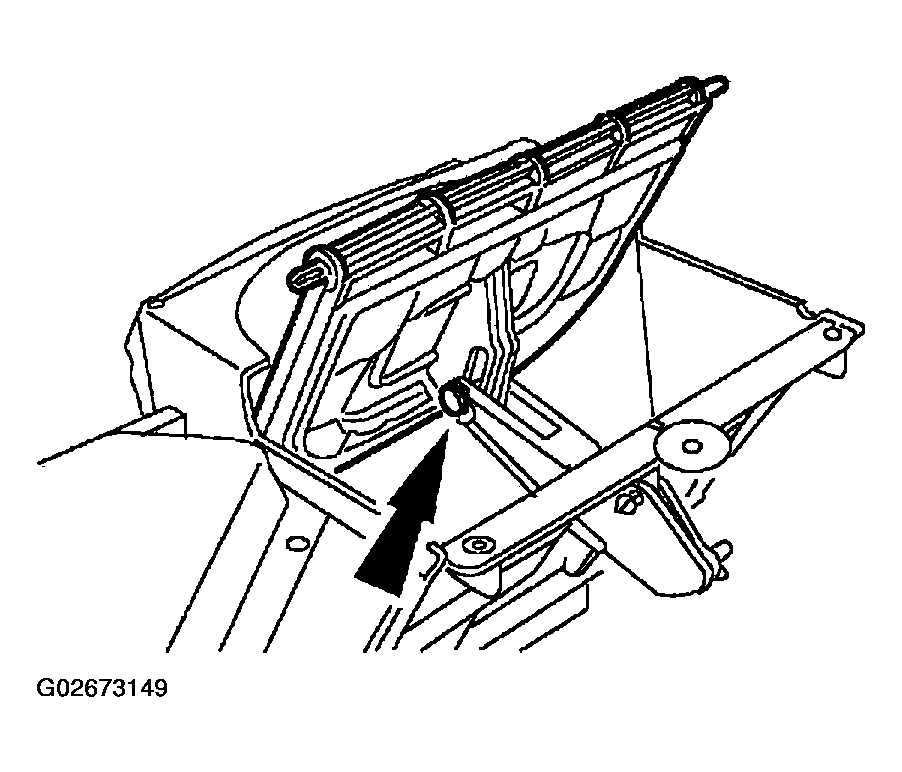

    Fig 1: Removing Air Inlet Duct Door Pin
    G02673149Courtesy of MAZDA MOTORS CORP.
  6. Install in reverse order of removal.
