A/C Compressor Bracket Removal/Installation (4.0L)

WARNING: This page is about a different car, the 2002 Mazda B4000, 2002 Mazda B3000, and 2002 Mazda B2300. However, it is still accessible from the selected car via links, so may be relevant.
  1. Remove the A/C compressor; see A/C COMPRESSOR REMOVAL/INSTALLATION (4.0L)  .
  2. Remove the power steering pump from the A/C compressor bracket; see POWER STEERING OIL PUMP REMOVAL/INSTALLATION .
  3. Remove the A/C compressor bracket.
    1. Loosen the nuts.
    2. Remove the bolts and remove the bracket.

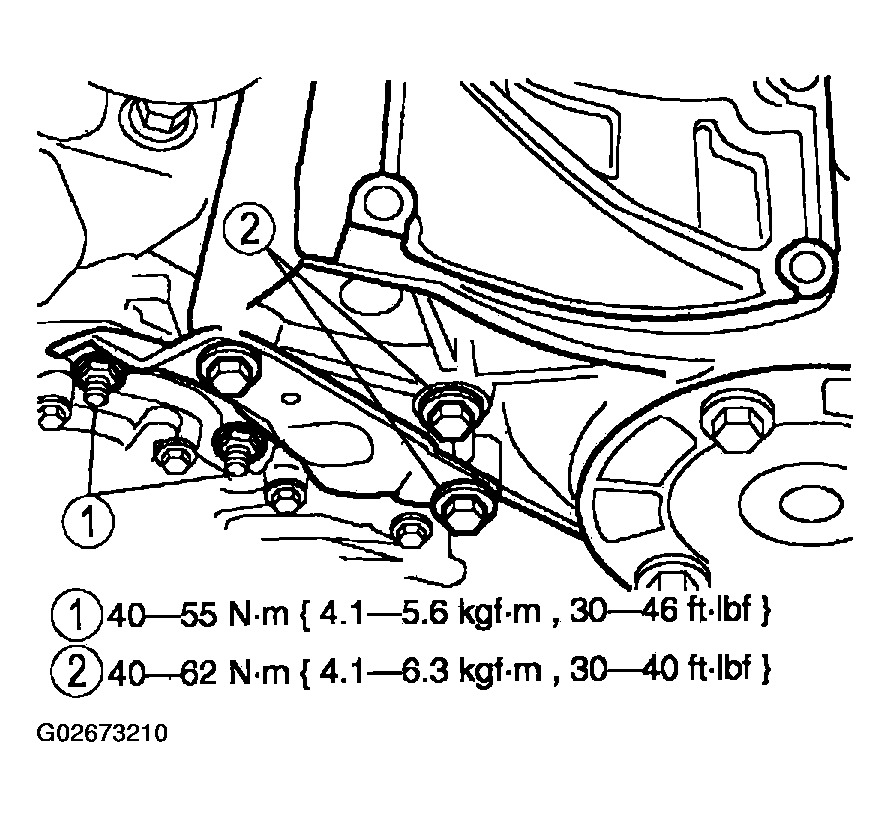

    Fig 1: Remove the A/C Compressor Bracket
    G02673210Courtesy of MAZDA MOTORS CORP.
  4. Install in the reverse order of removal.
