Resistance Inspection (On-Vehicle)

WARNING: This page is about a different car, the 2004 Mazda RX-8. However, it is still accessible from the selected car via links, so may be relevant.

Remove the engine cover. (See ENGINE COVER REMOVAL/INSTALLATION .)
Remove the battery cover.
Disconnect the negative battery cable.
Remove the catalytic converter. (See EXHAUST SYSTEM REMOVAL/INSTALLATION .)
Remove the insulator.

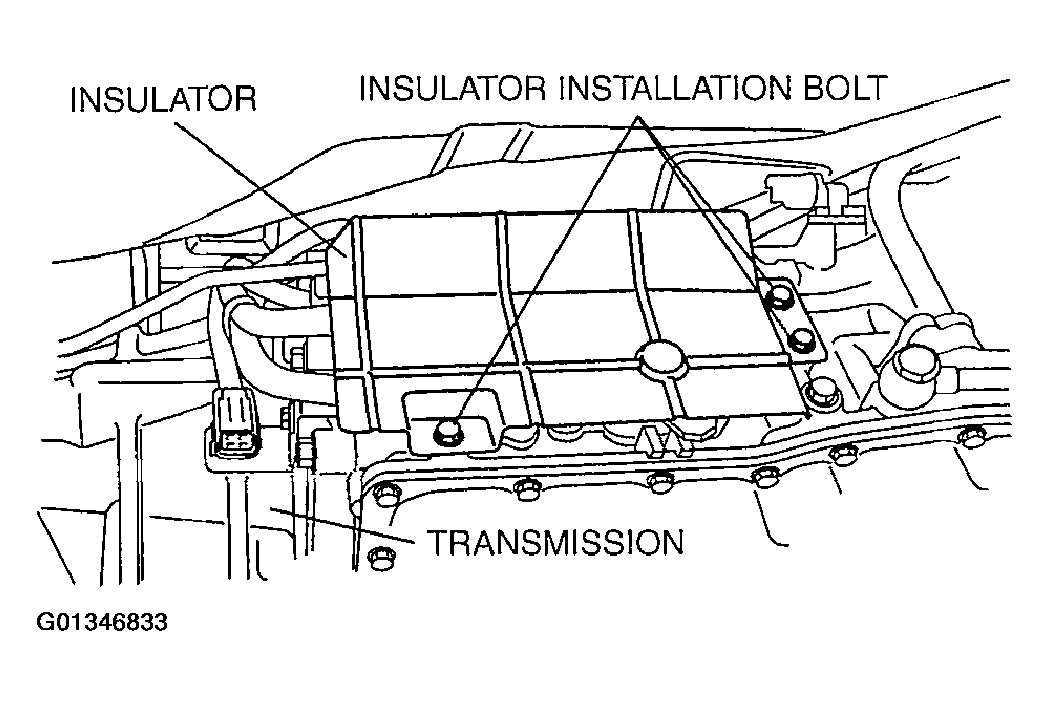

Fig 1: Locating Insulator Installation Bolts
Courtesy of MAZDA MOTORS CORP.
Disconnect the solenoid valve connector.

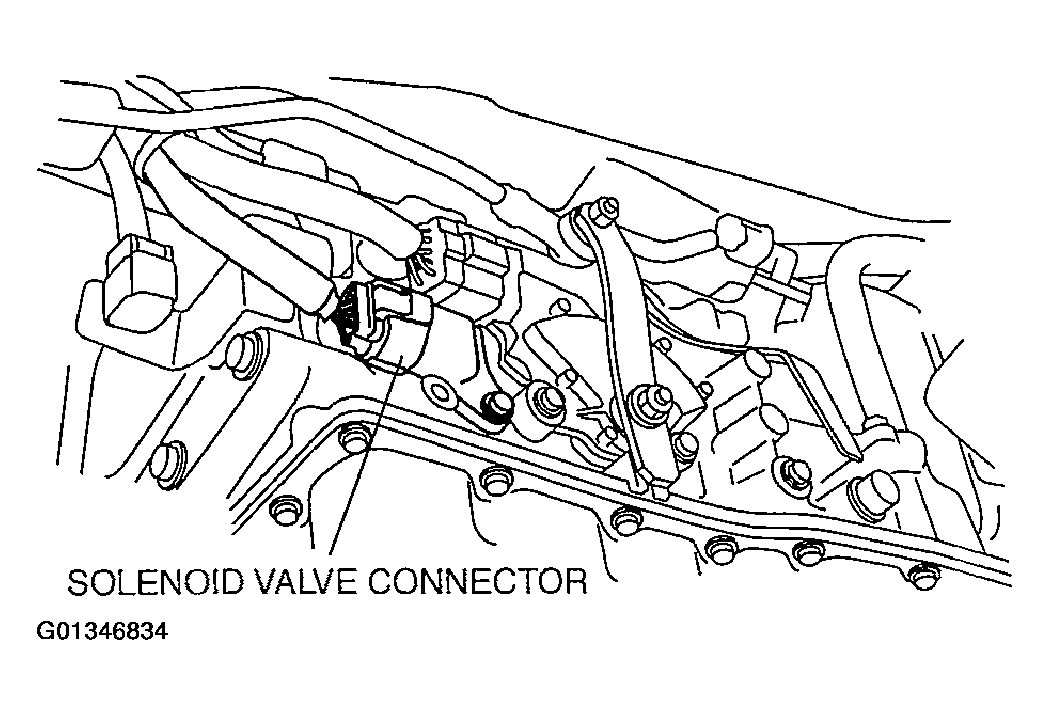

Fig 2: Disconnecting Solenoid Valve Connector
Courtesy of MAZDA MOTORS CORP.
Measure the resistance between the following terminals.

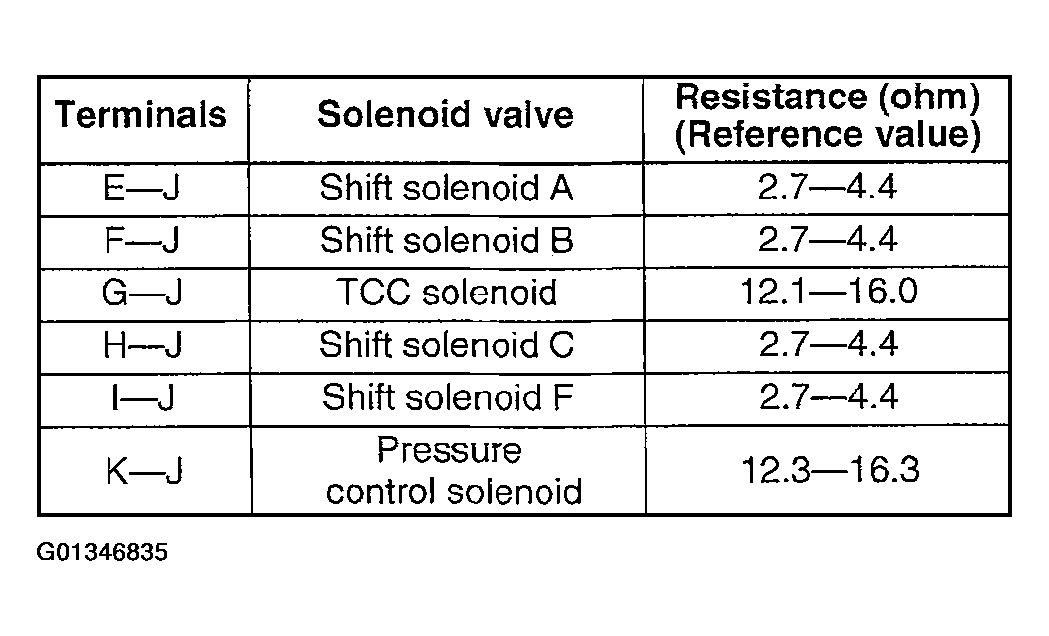

Fig 3: Solenoid Valve Terminals Resistance Reference Value
Courtesy of MAZDA MOTORS CORP.
- If not within the specification, perform the operating inspection. (See OPERATING INSPECTION .)
ATF temperature: 20-80°C {68-176°F }

Fig 4: Measuring Resistance Between Solenoid Valve Terminals
Courtesy of MAZDA MOTORS CORP.
Connect the solenoid valve connector.
Install the insulator.
Tightening torque

8-11 N.m {82-112 kgf.cm, 72-97 in.lb}
Install the catalytic converter. (See EXHAUST SYSTEM REMOVAL/INSTALLATION .)
Connect the negative battery cable.
Install the battery cover.
Install the engine cover. (See ENGINE COVER REMOVAL/INSTALLATION .)
