Engine Cover Removal/Installation

WARNING: This page is about a different car, the 2004 Mazda RX-8. However, it is still accessible from the selected car via links, so may be relevant.
  1. Remove in the order shown in the figure. See Fig 1.
  2. Install in the reverse order of removal.

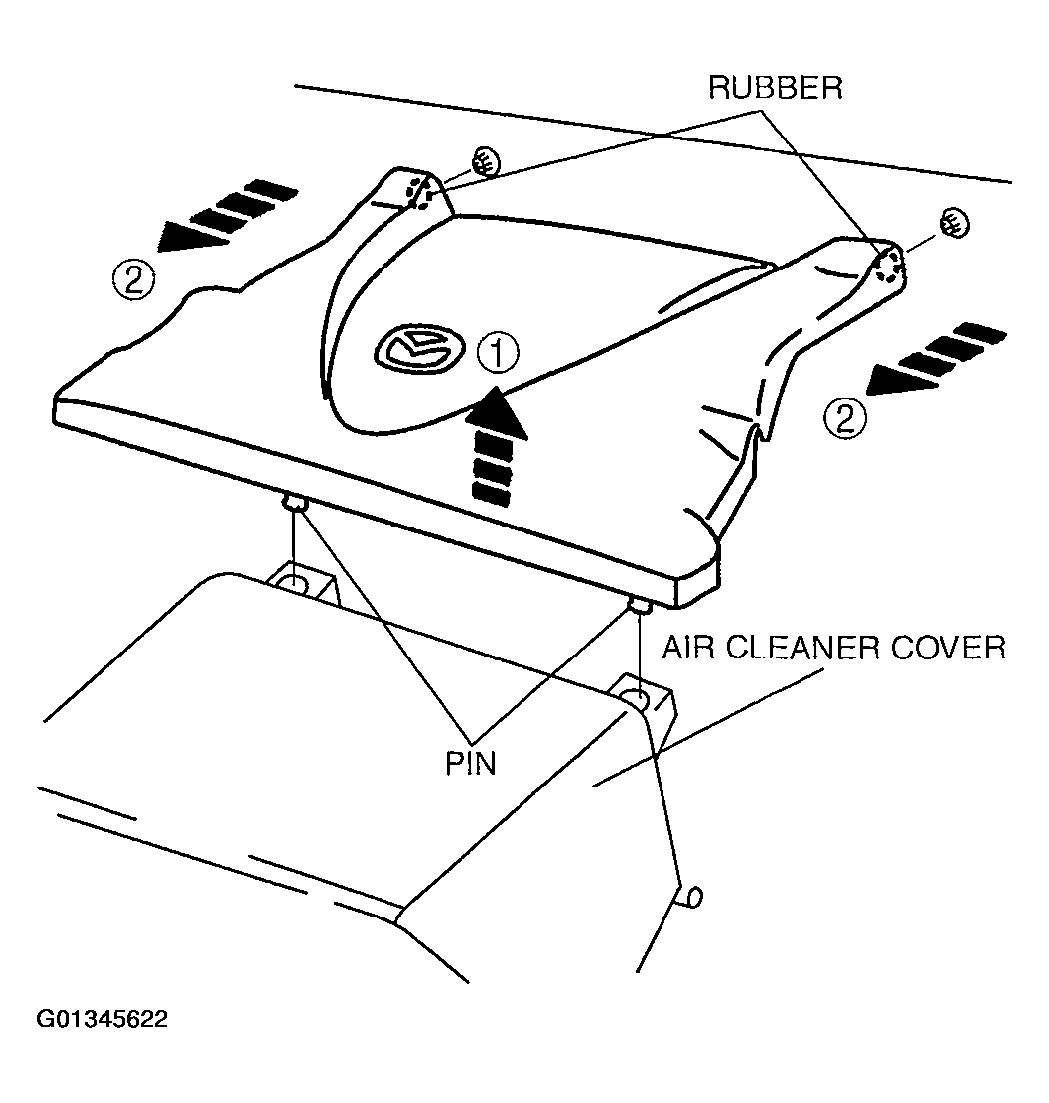

    Fig 1: Removing/Installing Engine Cover
    G01345622Courtesy of MAZDA MOTORS CORP.
