Roof Opening Panel Frame - 4-Door: Installation

WARNING: This page is about a different car, the 2018 Ford Focus. However, it is still accessible from the selected car via links, so may be relevant.
  1. To install, reverse the removal procedure.
  2. Transfer parts as necessary.
  3. Tighten the retaining bolts in the sequence shown.

    Torque

    : 53 lb.in (6 Nm)

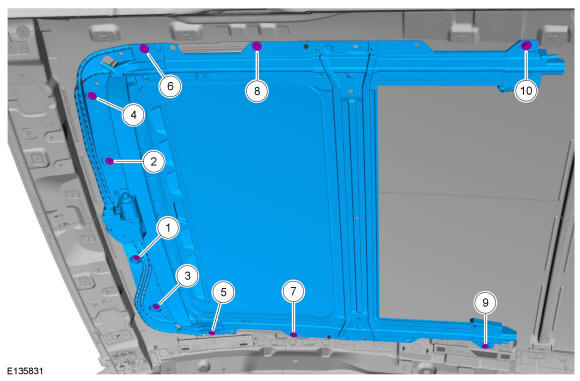

    Fig 1: Roof Opening Panel Frame Bolt Tightening Sequence (4- Door)
    GFD270443Courtesy of FORD MOTOR CO.
  4. Align the roof opening panel. Refer to: Roof Opening Panel Alignment  .
  5. Initialize the power roof opening panel. Refer to: Power Roof Opening Panel Initialization  .
