Selector Shaft Seal: Removal

WARNING: This page is about a different car, the 2018 Ford Focus. However, it is still accessible from the selected car via links, so may be relevant.
  1. Remove the transmission. Refer to: Transmission - 2.0L Duratec-HE (125kW/170PS) - MI4 .

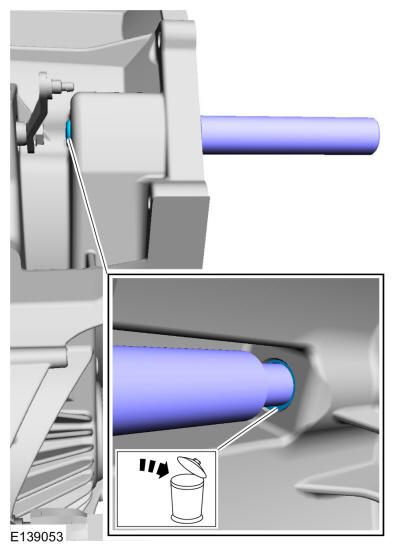

  2. Using a punch, remove and discard the clutch housing plug. Use the General Equipment: Center Punch
    GFD267578Courtesy of FORD MOTOR COMPANY

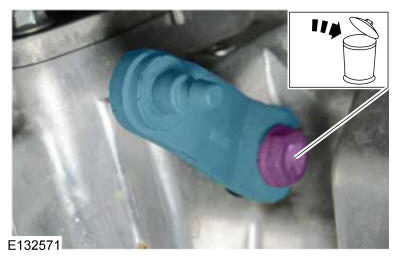

  3. Remove and discard the manual lever bolt and remove the manual lever.
    GFD267579Courtesy of FORD MOTOR COMPANY

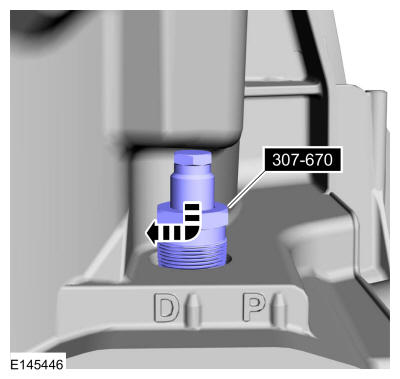

  4. Install the special tool on the shift lever seal. Apply pressure to the top of the special tool while threading it into the seal. Install Special Service Tool: 307-670 Remover/Installer, Shift Lever Seal.
    GFD267580Courtesy of FORD MOTOR COMPANY

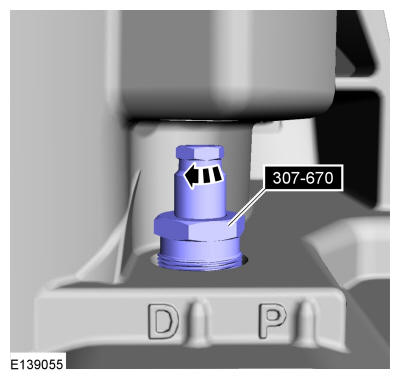

  5. Using the special tool, remove the shift lever seal. Remove Special Service Tool: 307-670 Remover/Installer, Shift Lever Seal.
GFD267581Courtesy of FORD MOTOR COMPANY
