Section 463 (Manual Transmission - 5-Speed Manual Transmission - MTX75 (Except Electric Vehicle)): Installation: Transmission

Special Tool(s) / General Equipment

Courtesy of FORD MOTOR COMPANY	303-1554 Engine Support Bar
Ford Diagnostic Equipment
Transmission Jack
Retaining Strap
Wooden Block

Materials

• 1.

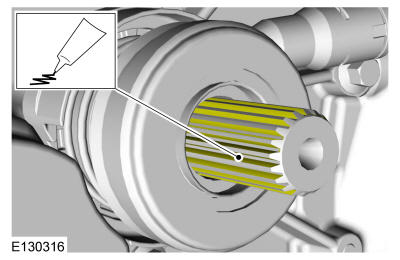

  Lubricate the input shaft with a thin coating of grease.

  Material: High Temperature 4x4 Front Axle and Wheel Bearing Grease / XG-11 (WSS-M1C267-A1)

Courtesy of FORD MOTOR COMPANY

• 2.

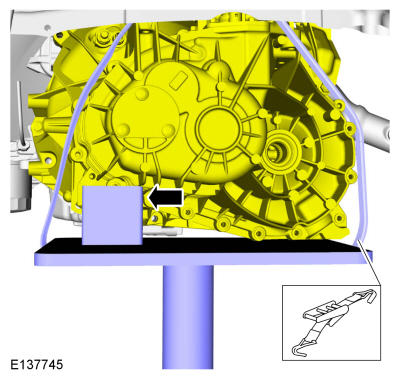

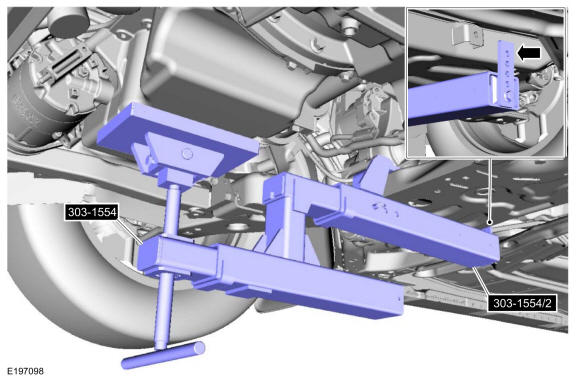

  Install the following items:
  • Use the General Equipment: Transmission Jack
  • Use the General Equipment: Wooden Block
  • Use the General Equipment: Retaining Strap

Courtesy of FORD MOTOR COMPANY

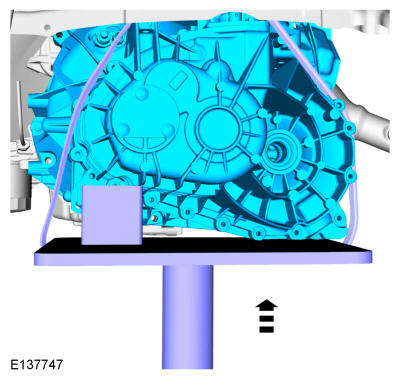

• 3.

  Install the transmission.

Courtesy of FORD MOTOR COMPANY

• 4.

  Install the bellhousing bolts. Tighten on both sides simultaneously.

  Torque: 35 lb.ft (48 Nm)

Courtesy of FORD MOTOR COMPANY

• 5.

  Remove the Transmission Jack.

• 6.

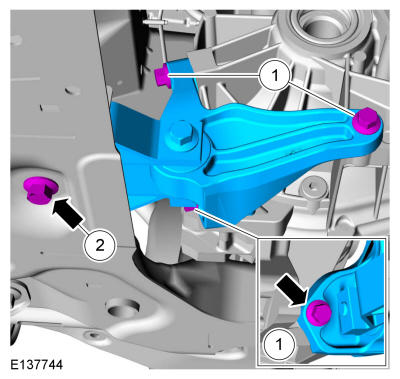

  Install the transmission support insulator bracket.

  Torque: 59 lb.ft (80 Nm)

Courtesy of FORD MOTOR COMPANY

• 7.

  Raise the engine and transmission assembly.

Courtesy of FORD MOTOR COMPANY

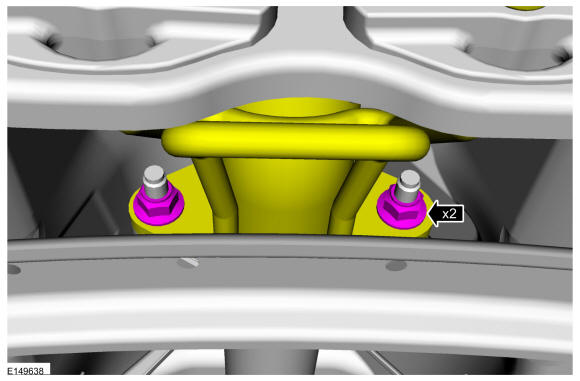

• 8.


  WARNING: Make sure that a new bolt is installed.

  Install the transmission support insulator and the bolt.

  Torque: 109 lb.ft (148 Nm)

Courtesy of FORD MOTOR COMPANY

• 9.

  Remove the special tool. Use Special Service Tool: 303-1554 Engine Support Bar.

Courtesy of FORD MOTOR COMPANY

• 10.



  • 1.

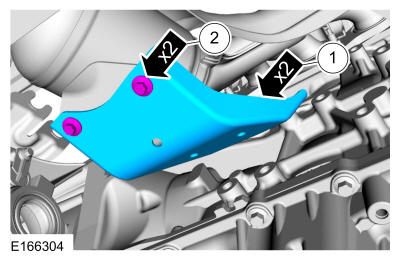

    Install the catalytic converter support bracket. Tighten the bolts.

    Torque: 37 lb.ft (50 Nm)

  • 2.

    Tighten the bolts.

    Torque: 19 lb.ft (26 Nm)

Courtesy of FORD MOTOR COMPANY

• 11.

  Install the exhaust hanger bolts.

  Torque: 19 lb.ft (26 Nm)

Courtesy of FORD MOTOR COMPANY

• 12.



  • 1.

    Install the roll restrictor and roll restrictor bracket. Install the roll restrictor bracket bolts.

    Torque: 35 lb.ft (48 Nm)

  • 2.

    Install the roll restrictor-to-subframe bolt.

    Torque: 92 lb.ft (125 Nm)

Courtesy of FORD MOTOR COMPANY

• 13.


  NOTE: Make sure that new components are installed.

  Install the muffler and tailpipe gasket and nuts.

  Torque: 35 lb.ft (48 Nm)

Courtesy of FORD MOTOR COMPANY

• 14.

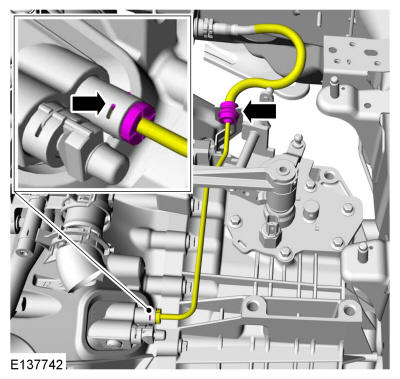

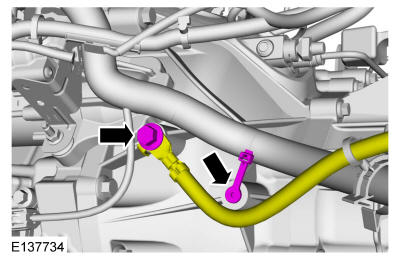

  Install the clutch hydraulic tube in the slave cylinder.

Courtesy of FORD MOTOR COMPANY

• 15.


  NOTE: Make sure that the wiring harness does not catch.

  • 1.

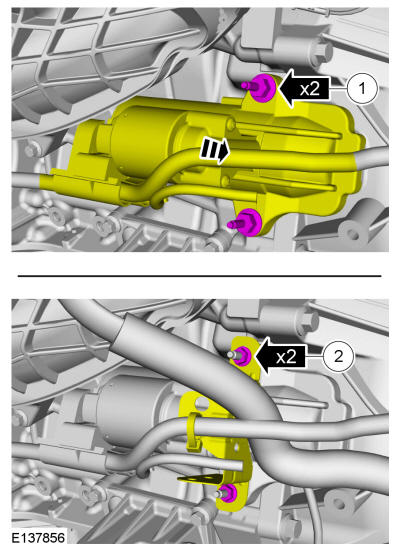

    Install the starter and the bolts.

    Torque: 26 lb.ft (35 Nm)

  • 2.

    Install the wiring retainer and the nuts.

    Torque: 89 lb.in (10 Nm)

Courtesy of FORD MOTOR COMPANY

• 16.

  Install a new halfshaft seal. Refer to: Front Halfshaft RH .

• 17.


  NOTE: Do not fully install the halfshaft at this time.

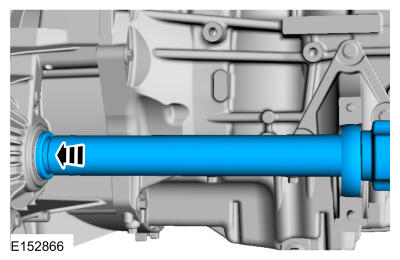

  Using part: 97ZT-7M181-A Seal Protector, install the intermediate shaft into the transmission.

Courtesy of FORD MOTOR COMPANY

• 18.

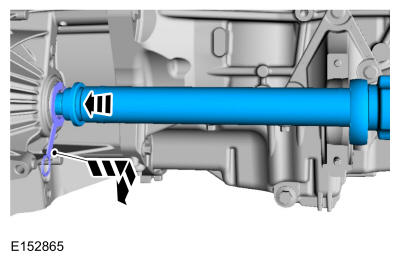

  NOTE: Insert the intermediate shaft until the intermediate shaft bearing is centered in the concave groove of the intermediate shaft bearing bracket.

  Remove the seal protector and install the intermediate shaft into the transmission.

Courtesy of FORD MOTOR COMPANY

• 19.

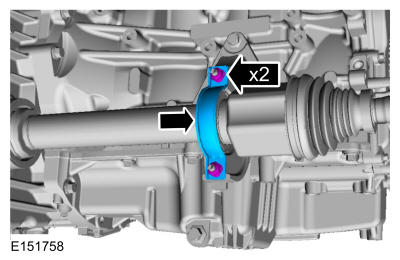

  Install the intermediate shaft bearing strap and tighten the nuts.

  Torque:

  Stage 1: Lower nut: 44 lb.in (5 Nm)

  Stage 2: Upper nut: 18 lb.ft (25 Nm)

  Stage 3: Lower nut: 18 lb.ft (25 Nm)

Courtesy of FORD MOTOR COMPANY

• 20.

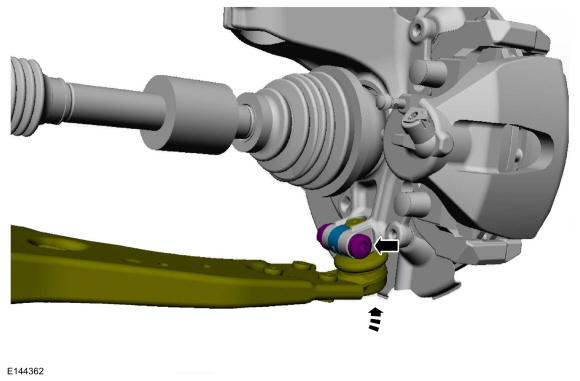

  Install the lower control arm in the steering knuckle and install the bolt and nut.

  Torque: 61 lb.ft (83 Nm)

Courtesy of FORD MOTOR COMPANY

• 21.

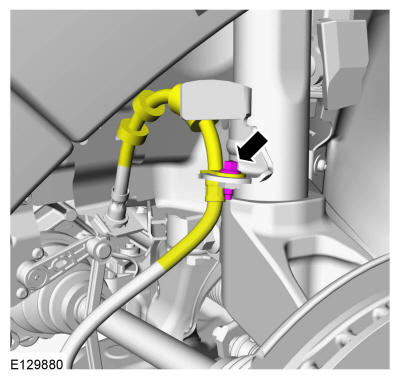

  Install the brake hose on the steering knuckle and install the bolt.

  Torque: 89 lb.in (10 Nm)

Courtesy of FORD MOTOR COMPANY

• 22.

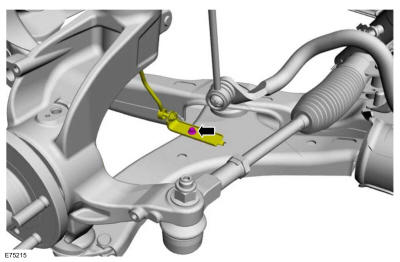

  If equipped, Install the ride height sensor bolt.

Courtesy of FORD MOTOR COMPANY

• 23.

  Install the following items:
  • Refer to: Front Halfshaft LH .
  • Install both front wheels. Refer to: Wheel and Tire .

• 24.

  Install the ground strap and the wiring retainer.

  Torque: 18 lb.ft (25 Nm)

Courtesy of FORD MOTOR COMPANY

• 25.

  Fill the transmission. Refer to: Transmission Draining and Filling .

• 26.

  Install the engine undershield and screws.

Courtesy of FORD MOTOR COMPANY

Refer to: Engine Undershield .

• 27.

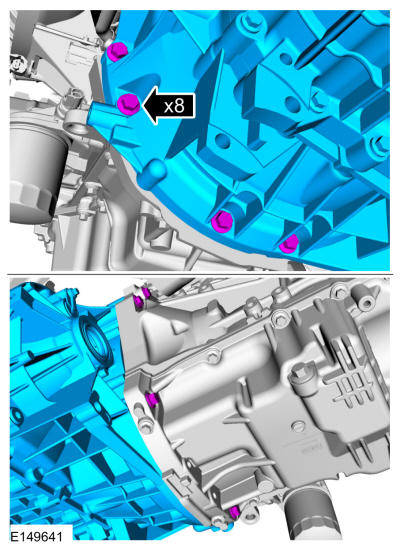

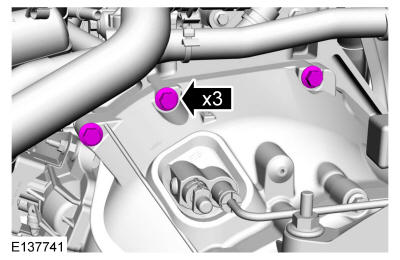

  Install the bellhousing bolts.

  Torque: 35 lb.ft (48 Nm)

Courtesy of FORD MOTOR COMPANY

• 28.

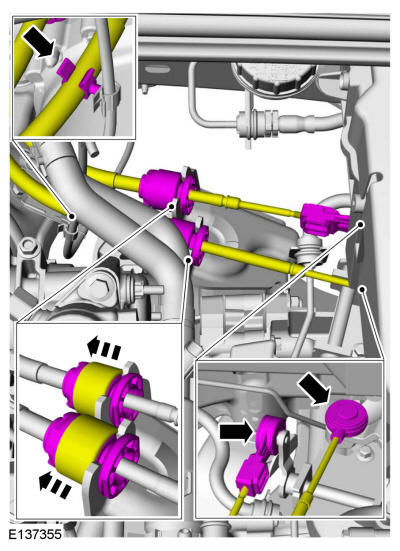

  Install the gearshift cables.

Courtesy of FORD MOTOR COMPANY

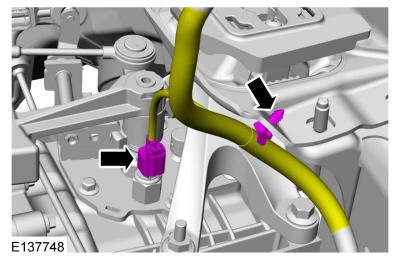

• 29.

  Connect the reverse switch electrical connector.

Courtesy of FORD MOTOR COMPANY

• 30.

  Install the battery tray support bracket and the nuts and connect the wiring retainers.

  Torque: 35 lb.ft (48 Nm)

Courtesy of FORD MOTOR COMPANY

• 31.

  Install the following items:
  • Refer to: Battery Tray .
  • Refer to: Battery .
  • Refer to: Air Cleaner .

• 32.

  Refer to: Gearshift Cable Adjustment - 5-Speed Manual Transmission - MTX75 .

• 33.

  Refer to: Clutch System Bleeding - 5-Speed Manual Transmission - MTX75 .

• 34.

  After completing the repairs, perform the Misfire Monitor Neutral Profile Correction procedure. Use the General Equipment: Ford Diagnostic Equipment

• 35.

  Start and check the exhaust for leaks.
