Transmission Draining and Filling

WARNING: This page is about a different car, the 2015 Ford Focus. However, it is still accessible from the selected car via links, so may be relevant.

Materials

Name	Specification
Motorcraft ® Dual Clutch Transmission Fluid XT-11-QDC	WSS-M2C200-D2

Filling

1.

With the vehicle in NEUTRAL, position it on a hoist. Refer to: Jacking And Lifting (Except Electric) .

2.
- 1.

  Remove the air deflector.
- 2.

  Remove the underbody shield.

GFD61483

Courtesy of FORD MOTOR COMPANY

3.
- 1.

  NOTE: Be prepared to collect escaping fluid.
Remove the drain plug and drain the transmission fluid.

2.

Install the drain plug.
Torque: 26 lb.ft (35 Nm)

GFD62679

Courtesy of FORD MOTOR COMPANY

4.

Remove the fill plug.

GFD62680

Courtesy of FORD MOTOR COMPANY

5.

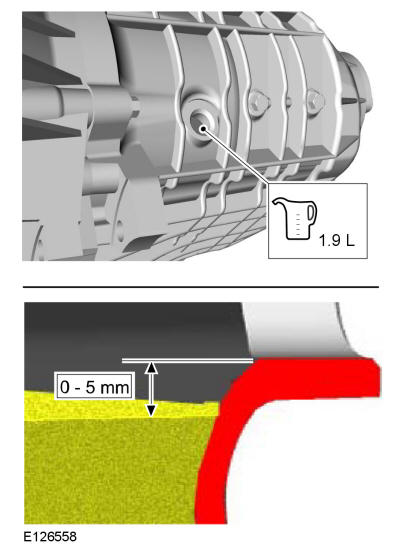

Add or remove transmission fluid as necessary. Refer to: Specifications .
Material: Motorcraft ® Dual Clutch Transmission Fluid / XT-11-QDC (WSS-M2C200-D2)

GFD62681

Courtesy of FORD MOTOR COMPANY

6.

Install the fill plug.
Torque: 26 lb.ft (35 Nm)

GFD62680

Courtesy of FORD MOTOR COMPANY

7.
- 1.

  Install the underbody shield.
- 2.

  Install the air deflector.

GFD61488

Courtesy of FORD MOTOR COMPANY
