Disassembly [11/2021 - ]: Procedure

WARNING: This page is about a different car, the 2025 Lexus NX 250, 2024 Lexus NX 250, 2023 Lexus NX 250, and 2022 Lexus NX 250. However, it is still accessible from the selected car via links, so may be relevant.
  1. REMOVE SHIFT CONTROL ACTUATOR ASSEMBLY
    1. GTY1062868Courtesy of © TOYOTA, LICENSE AGREEMENT TMS1002
  2. REMOVE SHIFT CONTROL ACTUATOR BRACKET
    1. GTY1062869Courtesy of © TOYOTA, LICENSE AGREEMENT TMS1002
  3. REMOVE REFILL PLUG
    1. GTY1062959Courtesy of © TOYOTA, LICENSE AGREEMENT TMS1002
  4. REMOVE OVERFLOW PLUG
    1. GTY1062796Courtesy of © TOYOTA, LICENSE AGREEMENT TMS1002
      1. Using a 10 mm socket hexagon wrench, remove the overflow plug and gasket from the transaxle housing.
  5. REMOVE NO. 1 TRANSMISSION OIL FILLER TUBE
    1. GTY1062242Courtesy of © TOYOTA, LICENSE AGREEMENT TMS1002
      1. Using a 6 mm socket hexagon wrench, remove the No. 1 transmission oil filler tube from the transaxle housing.
  6. REMOVE OIL COOLER UNION SUB-ASSEMBLY
    1. GTY1062870Courtesy of © TOYOTA, LICENSE AGREEMENT TMS1002
  7. REMOVE NO. 1 OIL COOLER OUTLET TUBE SUB-ASSEMBLY
    1. GTY1061927Courtesy of © TOYOTA, LICENSE AGREEMENT TMS1002
      1. Using a 19 mm union nut wrench, remove the No. 1 oil cooler outlet tube sub-assembly from the automatic transaxle case sub-assembly.
      2. Remove the O-ring from the No. 1 oil cooler outlet tube sub-assembly.
  8. REMOVE TRANSMISSION CASE SIDE COVER

    Refer to PROCEDURE - Step 13

  9. REMOVE TRANSMISSION WIRE

    Refer to PROCEDURE - Step 14

  10. REMOVE TRANSMISSION VALVE BODY ASSEMBLY

    Refer to PROCEDURE - Step 2

  11. REMOVE TRANSMISSION REVOLUTION SENSOR (NT)
    1. GTY1061650Courtesy of © TOYOTA, LICENSE AGREEMENT TMS1002
  12. REMOVE TRANSMISSION REVOLUTION SENSOR (NC)
    1. GTY1061638Courtesy of © TOYOTA, LICENSE AGREEMENT TMS1002
      *1 Spacer - -
  13. INSPECT INPUT SHAFT END PLAY

    See step  12

  14. REMOVE TRANSAXLE HOUSING
    1. GTY1063153Courtesy of © TOYOTA, LICENSE AGREEMENT TMS1002
      *1 Transaxle Case Gasket *2 O-ring
      1. Remove the 20 bolts.
      2. Using a plastic-faced hammer, tap on the circumference of the transaxle housing and remove it from the automatic transaxle case sub-assembly.
      3. Remove the 5 transaxle case gaskets from the front oil pump assembly.
      4. Remove the O-ring from the automatic transaxle case sub-assembly.
  15. REMOVE TRANSAXLE HOUSING OIL SEPARATOR
    1. GTY1063008Courtesy of © TOYOTA, LICENSE AGREEMENT TMS1002
  16. REMOVE TRANSMISSION OIL CLEANER MAGNET
    1. GTY1062031Courtesy of © TOYOTA, LICENSE AGREEMENT TMS1002
  17. INSPECT TRANSMISSION OIL CLEANER MAGNET

    See step  1

  18. REMOVE DIFFERENTIAL GEAR LUBE APPLY TUBE
    1. GTY1062034Courtesy of © TOYOTA, LICENSE AGREEMENT TMS1002
  19. REMOVE TRANSMISSION LUBE APPLY TUBE
    1. GTY1062036Courtesy of © TOYOTA, LICENSE AGREEMENT TMS1002
  20. REMOVE DIFFERENTIAL CASE ASSEMBLY
    1. GTY1062038Courtesy of © TOYOTA, LICENSE AGREEMENT TMS1002
  21. REMOVE CLUTCH DRUM OIL SEAL RING
    1. GTY1063014Courtesy of © TOYOTA, LICENSE AGREEMENT TMS1002
  22. REMOVE OIL PUMP SPROCKET FRONT THRUST WASHER
    1. GTY1062044Courtesy of © TOYOTA, LICENSE AGREEMENT TMS1002

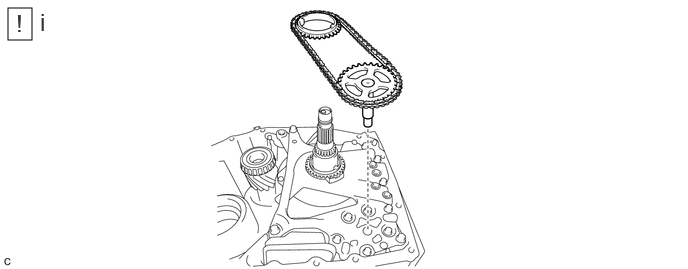

  23. REMOVE TRANSMISSION DRIVE CHAIN
    1. GTY1062681Courtesy of © TOYOTA, LICENSE AGREEMENT TMS1002
      1. Remove the transmission drive chain together with the transmission oil pump drive sprocket and oil pump drive shaft sub-assembly from the front oil pump assembly.
        NOTE:

        To avoid damaging the bush of the front oil pump assembly, remove the transmission drive chain, transmission oil pump drive sprocket and oil pump drive shaft sub-assembly horizontally relative to the front oil pump assembly.

  24. REMOVE OIL PUMP SPROCKET REAR THRUST WASHER
    1. GTY1063015Courtesy of © TOYOTA, LICENSE AGREEMENT TMS1002
  25. REMOVE MANUAL DETENT SPRING SUB-ASSEMBLY
    1. GTY1062047Courtesy of © TOYOTA, LICENSE AGREEMENT TMS1002
  26. REMOVE FRONT OIL PUMP ASSEMBLY
    NOTE:

    To avoid damaging the front oil pump assembly and transmission valve body assembly, when removing the front oil pump assembly, first remove the transmission valve body assembly.
    1. GTY1062027Courtesy of © TOYOTA, LICENSE AGREEMENT TMS1002
  27. REMOVE NO. 1 BREATHER PLUG (ATM)
    1. GTY1062290Courtesy of © TOYOTA, LICENSE AGREEMENT TMS1002
      *a Push - -
      1. Disengage each claw and remove the No. 1 breather plug (ATM) from the automatic transaxle case sub-assembly.
        NOTE:

        Be careful not to damage the automatic transaxle case sub-assembly.

  28. REMOVE PLANETARY CARRIER THRUST WASHER
    1. GTY1062029Courtesy of © TOYOTA, LICENSE AGREEMENT TMS1002
  29. REMOVE C-3 AND C-4 CLUTCH ASSEMBLY
    1. GTY1062066Courtesy of © TOYOTA, LICENSE AGREEMENT TMS1002
  30. INSPECT CLEARANCE OF C-3 CLUTCH
    See step  13
  31. INSPECT CLEARANCE OF C-4 CLUTCH
    See step  14
  32. REMOVE NO. 2 PLANETARY CARRIER THRUST WASHER
    1. GTY1062070Courtesy of © TOYOTA, LICENSE AGREEMENT TMS1002
  33. REMOVE PLANETARY SUN GEAR
    1. GTY1062072Courtesy of © TOYOTA, LICENSE AGREEMENT TMS1002
  34. REMOVE NO. 9 THRUST BEARING RACE
    1. GTY1063021Courtesy of © TOYOTA, LICENSE AGREEMENT TMS1002
  35. REMOVE THRUST NEEDLE ROLLER BEARING
    1. GTY1062076Courtesy of © TOYOTA, LICENSE AGREEMENT TMS1002
  36. REMOVE NO. 8 THRUST BEARING RACE
    1. GTY1063022Courtesy of © TOYOTA, LICENSE AGREEMENT TMS1002
  37. REMOVE FRONT PLANETARY GEAR ASSEMBLY
    1. GTY1062079Courtesy of © TOYOTA, LICENSE AGREEMENT TMS1002
  38. REMOVE THRUST NEEDLE ROLLER BEARING
    1. GTY1062080Courtesy of © TOYOTA, LICENSE AGREEMENT TMS1002
  39. REMOVE NO. 7 THRUST BEARING RACE
    1. GTY1062056Courtesy of © TOYOTA, LICENSE AGREEMENT TMS1002
  40. INSPECT FRONT PLANETARY GEAR ASSEMBLY
    See step  10
  41. REMOVE INPUT SHAFT OIL SEAL RING
    1. GTY1063056Courtesy of © TOYOTA, LICENSE AGREEMENT TMS1002
      1. Remove the 5 input shaft oil seal rings from the front planetary gear assembly.
        NOTE:

        Do not expand the gap of the input shaft oil seal rings excessively.

  42. REMOVE REAR INPUT SHAFT OIL SEAL RING
    1. GTY1061856Courtesy of © TOYOTA, LICENSE AGREEMENT TMS1002
      1. Remove the 2 rear input shaft oil seal rings from the front planetary gear assembly.
        NOTE:

        Do not expand the gap of the rear input shaft oil seal rings excessively.

  43. REMOVE FRONT PLANETARY RING GEAR
    1. GTY1062632Courtesy of © TOYOTA, LICENSE AGREEMENT TMS1002
      1. Remove the front planetary ring gear with front planetary ring gear flange from the C-1 clutch assembly.
      2. Using a screwdriver with its tip wrapped with protective tape, remove the snap ring from the front planetary ring gear.
        NOTE:

        Be careful not to damage the front planetary ring gear and front planetary ring gear flange.

      3. Remove the front planetary ring gear flange from the front planetary ring gear.
  44. REMOVE THRUST NEEDLE ROLLER BEARING
    1. GTY1062111Courtesy of © TOYOTA, LICENSE AGREEMENT TMS1002
  45. REMOVE NO. 6 THRUST BEARING RACE
    1. GTY1062115Courtesy of © TOYOTA, LICENSE AGREEMENT TMS1002
  46. REMOVE SUN GEAR INPUT HUB SUB-ASSEMBLY
    1. GTY1062118Courtesy of © TOYOTA, LICENSE AGREEMENT TMS1002
  47. INSPECT CLEARANCE OF C-1 CLUTCH
    See step  15
  48. REMOVE REAR PLANETARY SUN GEAR SUB-ASSEMBLY
    1. GTY1062845Courtesy of © TOYOTA, LICENSE AGREEMENT TMS1002
      1. Remove the No. 3 thrust bearing race from the rear planetary sun gear sub-assembly.
      2. Using SST and a press, remove the rear planetary sun gear sub-assembly from the C-1 clutch assembly.
        • SST: 09950-60011
          1. 09951-00260
        • SST: 09950-70010
          1. 09951-07200
      3. Remove the planetary sun gear sub-assembly from the rear planetary sun gear sub-assembly.
      4. Remove the No. 4 thrust bearing race from the rear planetary sun gear sub-assembly.
      5. Remove the thrust needle roller bearing from the rear planetary sun gear sub-assembly.
      6. Remove the thrust bearing race from the rear planetary sun gear sub-assembly.
  49. INSPECT PLANETARY SUN GEAR SUB-ASSEMBLY

    See step  8

  50. INSPECT REAR PLANETARY SUN GEAR SUB-ASSEMBLY

    See step  9

  51. REMOVE C-1 CLUTCH ASSEMBLY
    1. GTY1062123Courtesy of © TOYOTA, LICENSE AGREEMENT TMS1002
  52. REMOVE THRUST NEEDLE ROLLER BEARING
    1. GTY1062124Courtesy of © TOYOTA, LICENSE AGREEMENT TMS1002
  53. REMOVE NO. 5 THRUST BEARING RACE
    1. GTY1062097Courtesy of © TOYOTA, LICENSE AGREEMENT TMS1002
  54. REMOVE TOLERANCE RING
    1. GTY1062131Courtesy of © TOYOTA, LICENSE AGREEMENT TMS1002
      1. Using a screwdriver with its tip wrapped with protective tape, remove the tolerance ring from the clutch drum sub-assembly.
        NOTE:

        Be careful not to damage the clutch drum sub-assembly.

  55. REMOVE FRONT CLUTCH DISC
    1. GTY1062873Courtesy of © TOYOTA, LICENSE AGREEMENT TMS1002
      *1 Forward Clutch Flange *2 Front Clutch Disc
      *3 Forward Multiple Disc Clutch Plate - -
      *a Snap Ring Side *b Front Clutch Disc Side
      1. Using a screwdriver with its tip wrapped with protective tape, remove the snap ring from the clutch drum sub-assembly.
        NOTE:

        Be careful not to damage the clutch drum sub-assembly.

      2. Remove the forward clutch flange, 4 front clutch discs and 4 forward multiple disc clutch plates from the clutch drum sub-assembly.
  56. INSPECT FRONT CLUTCH DISC

    See step  2

  57. REMOVE NO. 1 CLUTCH BALANCER
    1. GTY1062525Courtesy of © TOYOTA, LICENSE AGREEMENT TMS1002
      1. Place SST on the No. 1 clutch balancer and compress the rear clutch piston return compression spring with a press.
        • SST: 09320-89010
        NOTE:

        Do not compress the rear clutch piston return compression spring excessively.

      2. Using SST, remove the snap ring from the clutch drum sub-assembly.
        • SST: 09350-30020
          1. 09350-07070
      3. Remove the No. 1 clutch balancer from the forward clutch piston.
  58. REMOVE REAR CLUTCH PISTON RETURN COMPRESSION SPRING
    1. GTY1063033Courtesy of © TOYOTA, LICENSE AGREEMENT TMS1002
  59. REMOVE FORWARD CLUTCH PISTON
    1. GTY1065404Courtesy of © TOYOTA, LICENSE AGREEMENT TMS1002
      1. Set the front planetary gear assembly on the clutch drum sub-assembly.
      2. Apply compressed air (392 kPa (4.0 kgf/cm2 , 57 psi)) to the oil hole of the front planetary gear assembly and separate the forward clutch piston from the clutch drum sub-assembly.
        NOTE:

        Be careful as ATF may spray when applying compressed air.

        HINT:

        Make sure to cover the ATF hole shown in the illustration.

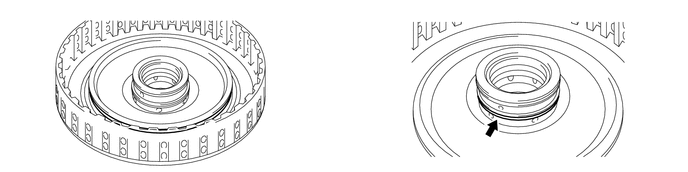

      3. Remove the forward clutch piston from the clutch drum sub-assembly.
    2. GTY1064858Courtesy of © TOYOTA, LICENSE AGREEMENT TMS1002
  60. REMOVE MANUAL VALVE LEVER SHAFT SUB-ASSEMBLY
    1. GTY1061683Courtesy of © TOYOTA, LICENSE AGREEMENT TMS1002
      1. Remove the bolt.
      2. Align the cutouts of the manual valve lever sub-assembly and manual valve lever shaft sub-assembly, and remove the manual valve lever shaft sub-assembly.

        HINT:

        Rotating the manual valve lever shaft sub-assembly to the area shown in the illustration will align the cutouts.

      3. Remove the O-ring from the manual valve lever shaft sub-assembly.
  61. REMOVE MANUAL VALVE LEVER SUB-ASSEMBLY
    1. GTY1063035Courtesy of © TOYOTA, LICENSE AGREEMENT TMS1002
  62. REMOVE PAWL STOPPER PLATE
    1. GTY1062164Courtesy of © TOYOTA, LICENSE AGREEMENT TMS1002
  63. REMOVE MANUAL VALVE LEVER SHAFT RETAINER SPRING
    1. GTY1062165Courtesy of © TOYOTA, LICENSE AGREEMENT TMS1002
  64. REMOVE PARKING LOCK ROD SUB-ASSEMBLY
    1. GTY1063081Courtesy of © TOYOTA, LICENSE AGREEMENT TMS1002
      *1 Manual Valve Lever Shaft Sub-assembly *2 Parking Lock Rod Sub-assembly
      1. Move the manual valve lever shaft sub-assembly and parking lock rod sub-assembly as shown in the illustration, and remove the parking lock rod sub-assembly.

        HINT:

        Align the cutouts of the parking lock rod sub-assembly and manual valve lever shaft sub-assembly and remove the parking lock rod sub-assembly.

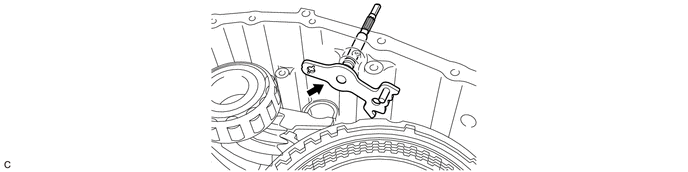

  65. REMOVE MANUAL VALVE LEVER SHAFT SUB-ASSEMBLY
    1. GTY1063030Courtesy of © TOYOTA, LICENSE AGREEMENT TMS1002
  66. REMOVE PARKING LOCK PAWL TORSION SPRING
    1. GTY1063031Courtesy of © TOYOTA, LICENSE AGREEMENT TMS1002
  67. REMOVE PARKING LOCK PAWL SHAFT
    1. GTY1062146Courtesy of © TOYOTA, LICENSE AGREEMENT TMS1002
  68. REMOVE PARKING LOCK PAWL
    1. GTY1062149Courtesy of © TOYOTA, LICENSE AGREEMENT TMS1002
  69. REMOVE PARKING LOCK SLEEVE
    1. GTY1062187Courtesy of © TOYOTA, LICENSE AGREEMENT TMS1002
  70. INSPECT CLEARANCE OF B-1 BRAKE

    See step  16

  71. REMOVE COUNTER DRIVE GEAR SUB-ASSEMBLY
    1. GTY1064793Courtesy of © TOYOTA, LICENSE AGREEMENT TMS1002
      "TORX" Bolt Bolt
      1. Using a T50 "TORX" socket wrench, remove the 2 "TORX" bolts from the counter drive gear sub-assembly.
      2. Remove the 5 bolts from the counter drive gear sub-assembly.
      3. Remove the counter drive gear sub-assembly together with the pinion and counter driven gear sub-assembly from the automatic transaxle case sub-assembly.
    2. GTY1065742Courtesy of © TOYOTA, LICENSE AGREEMENT TMS1002
  72. REMOVE NO. 1 BRAKE DISC
    1. GTY1062173Courtesy of © TOYOTA, LICENSE AGREEMENT TMS1002
      *1 No. 1 Brake Flange *2 No. 1 Brake Disc
      *3 No. 1 Brake Plate - -
      *a Snap Ring Side *b No. 1 Brake Disc Side
      1. Using a screwdriver with its tip wrapped in protective tape, remove the snap ring from the counter drive gear sub-assembly.
        NOTE:

        Be careful not to damage the counter drive gear sub-assembly.

      2. Remove the No. 1 brake flange, 4 No. 1 brake discs and 4 No. 1 brake plates from the counter drive gear sub-assembly.
  73. INSPECT NO. 1 BRAKE DISC

    See step  4

  74. REMOVE NO. 3 PLANETARY CARRIER THRUST WASHER
    1. GTY1062197Courtesy of © TOYOTA, LICENSE AGREEMENT TMS1002
  75. REMOVE REAR PLANETARY GEAR ASSEMBLY
    1. GTY1062199Courtesy of © TOYOTA, LICENSE AGREEMENT TMS1002
  76. REMOVE NO. 4 PLANETARY CARRIER THRUST WASHER
    1. GTY1062177Courtesy of © TOYOTA, LICENSE AGREEMENT TMS1002
  77. INSPECT REAR PLANETARY GEAR ASSEMBLY

    See step  11

  78. REMOVE THRUST NEEDLE ROLLER BEARING
    1. GTY1062179Courtesy of © TOYOTA, LICENSE AGREEMENT TMS1002
  79. REMOVE NO. 2 THRUST BEARING RACE
    1. GTY1063039Courtesy of © TOYOTA, LICENSE AGREEMENT TMS1002
  80. INSPECT CLEARANCE OF C-2 CLUTCH

    See step  17

  81. REMOVE C-2 CLUTCH ASSEMBLY
    1. GTY1062181Courtesy of © TOYOTA, LICENSE AGREEMENT TMS1002
  82. REMOVE THRUST NEEDLE ROLLER BEARING
    1. GTY1063040Courtesy of © TOYOTA, LICENSE AGREEMENT TMS1002
  83. REMOVE NO. 1 THRUST BEARING RACE
    1. GTY1062184Courtesy of © TOYOTA, LICENSE AGREEMENT TMS1002
  84. REMOVE NO. 2 CLUTCH DISC
    1. GTY1062903Courtesy of © TOYOTA, LICENSE AGREEMENT TMS1002
      *1 Direct Clutch Flange *2 No. 2 Clutch Disc
      *3 No. 2 Clutch Plate - -
      *a Snap Ring Side *b No. 2 Clutch Disc Side
      1. Using a screwdriver with its tip wrapped in protective tape, remove the snap ring from the intermediate shaft sub-assembly.
        NOTE:

        Be careful not to damage the intermediate shaft sub-assembly.

      2. Remove the direct clutch flange, 4 No. 2 clutch discs and 4 No. 2 clutch plates from the intermediate shaft sub-assembly.
  85. INSPECT NO. 2 CLUTCH DISC

    See step  3

  86. REMOVE C-2 CLUTCH BALANCER

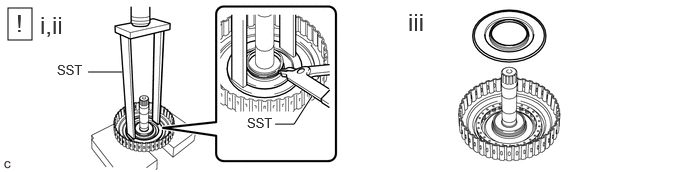

    1. GTY1062661Courtesy of © TOYOTA, LICENSE AGREEMENT TMS1002
      1. Place SST on the C-2 clutch balancer and compress the clutch return spring sub-assembly with a press.
        • SST: 09387-00020
        NOTE:

        Do not compress the clutch return spring sub-assembly excessively.

      2. Using SST, remove the snap ring from the intermediate shaft sub-assembly.
        • SST: 09350-30020
          1. 09350-07070
      3. Remove the C-2 clutch balancer from the intermediate shaft sub-assembly.
  87. REMOVE CLUTCH RETURN SPRING SUB-ASSEMBLY
    1. GTY1062222Courtesy of © TOYOTA, LICENSE AGREEMENT TMS1002
  88. INSPECT CLUTCH RETURN SPRING SUB-ASSEMBLY

    See step  6

  89. REMOVE C-2 CLUTCH PISTON
    1. GTY1064951Courtesy of © TOYOTA, LICENSE AGREEMENT TMS1002
      Apply Compressed Air Cover Oil Hole
      1. Apply compressed air (392 kPa (4.0 kgf/cm2 , 57 psi)) to the oil hole of the intermediate shaft sub-assembly.
        NOTE:
        • Applying compressed air may cause the C-2 clutch piston to jump out. When removing the C-2 clutch piston, hold it by hand using a piece of cloth.
        • Be careful as ATF may spray when applying compressed air.

        HINT:

        Cover all of the oil holes with tape except the oil hole to which compressed air will be applied.

      2. Remove the C-2 clutch piston from the intermediate shaft sub-assembly.
    2. GTY1065733Courtesy of © TOYOTA, LICENSE AGREEMENT TMS1002
  90. REMOVE DIRECT CLUTCH DRUM OIL SEAL RING
    1. GTY1062207Courtesy of © TOYOTA, LICENSE AGREEMENT TMS1002
  91. INSPECT CLEARANCE OF B-2 BRAKE

    See step  18

  92. REMOVE 2ND BRAKE DISC
    1. GTY1061998Courtesy of © TOYOTA, LICENSE AGREEMENT TMS1002
      *1 2nd Brake Brake Flange *2 2nd Brake Brake Disc
      *3 2nd Brake Brake Plate - -
      *a Snap Ring Side *b No. 2 Clutch Disc Side
      1. Using a screwdriver with its tip wrapped with protective tape, remove the snap ring from the automatic transaxle case sub-assembly.
        NOTE:

        Be careful not to damage the automatic transaxle case sub-assembly.

      2. Remove the 2nd brake flange, 5 2nd brake discs and 5 2nd brake plates from the automatic transaxle case sub-assembly.
  93. INSPECT 2ND BRAKE DISC

    See step  5

  94. REMOVE NO. 2 1ST AND REVERSE BRAKE PISTON
    1. GTY1062209Courtesy of © TOYOTA, LICENSE AGREEMENT TMS1002
  95. REMOVE 1ST AND REVERSE BRAKE RETURN SPRING SUB-ASSEMBLY
    1. GTY1062347Courtesy of © TOYOTA, LICENSE AGREEMENT TMS1002
      1. Place SST on the 1st and reverse brake return spring sub-assembly and compress it with a press.
        • SST: 09380-60012
          1. 09381-06020
          2. 09381-06050
          3. 09381-06070
        • SST: 09950-70010
          1. 09951-07200
        NOTE:

        Do not compress the 1st and reverse brake return spring sub-assembly excessively.

      2. Using a screwdriver with its tip wrapped with protective tape, remove the snap ring from the automatic transaxle case sub-assembly.
        NOTE:

        Be careful not to damage the automatic transaxle case sub-assembly.

      3. Remove the 1st and reverse brake return spring sub-assembly from the automatic transaxle case sub-assembly.
  96. INSPECT 1ST AND REVERSE BRAKE RETURN SPRING SUB-ASSEMBLY

    See step  7

  97. REMOVE 1ST AND REVERSE BRAKE PISTON
    1. GTY1062901Courtesy of © TOYOTA, LICENSE AGREEMENT TMS1002
      1. Apply compressed air (approximately 392 kPa (4.0 kgf/cm2 , 57 psi)) to the ATF hole and remove the 1st and reverse brake piston from the automatic transaxle case sub-assembly.
      2. Remove the 2 O-rings from the 1st and reverse brake piston.
  98. REMOVE MANUAL VALVE LEVER SHAFT OIL SEAL
    1. GTY1062069Courtesy of © TOYOTA, LICENSE AGREEMENT TMS1002
      1. Using a screwdriver with its tip wrapped with protective tape, remove the manual valve lever shaft oil seal from the automatic transaxle case sub-assembly.
        NOTE:

        Be careful not to damage the automatic transaxle case sub-assembly.

  99. REMOVE TRANSAXLE CASE OIL SEAL
    1. GTY1062809Courtesy of © TOYOTA, LICENSE AGREEMENT TMS1002
      1. Using SST, remove the transaxle case oil seal from the transaxle housing.
        • SST: 09308-36010
        NOTE:

        Be careful not to damage the transaxle housing.

  100. REMOVE FRONT DRIVE SHAFT OIL SEAL RH
    1. GTY1062596Courtesy of © TOYOTA, LICENSE AGREEMENT TMS1002
      1. Using SST, remove the front drive shaft oil seal RH from the transaxle housing.
        • SST: 09308-36010
        NOTE:

        Be careful not to damage the transaxle housing.

  101. REMOVE FRONT DRIVE SHAFT OIL SEAL LH
    1. GTY1061841Courtesy of © TOYOTA, LICENSE AGREEMENT TMS1002
      1. Using SST, remove the front drive shaft oil seal LH from the automatic transaxle case sub-assembly.
        • SST: 09308-36010
        NOTE:

        Be careful not to damage the automatic transaxle case sub-assembly.

  102. REMOVE NEEDLE ROLLER BEARING
    1. GTY1062634Courtesy of © TOYOTA, LICENSE AGREEMENT TMS1002
      1. Using SST and a press, remove the needle roller bearing from the transaxle housing.
        • SST: 09950-60011
          1. 09951-00550
        • SST: 09950-70010
          1. 09951-07200
        NOTE:

        Be careful not to damage the transaxle housing.

  103. REMOVE NO. 1 TRANSAXLE CASE PLUG
    1. GTY1063050Courtesy of © TOYOTA, LICENSE AGREEMENT TMS1002
  104. REMOVE NO. 2 TRANSAXLE CASE PLUG
    1. GTY1062345Courtesy of © TOYOTA, LICENSE AGREEMENT TMS1002
      1. Using a 6 mm socket hexagon wrench, remove the 3 No. 2 transaxle case plugs and 3 gaskets from the automatic transaxle case sub-assembly.
      2. Using a 6 mm socket hexagon wrench, remove the 3 No. 2 transaxle case plugs and 3 gaskets from the transaxle housing.
  105. REMOVE AUTOMATIC TRANSMISSION CASE STRAIGHT PIN

    HINT:

    It is not necessary to remove the automatic transmission case straight pins unless they are being replaced.

    1. GTY1062234Courtesy of © TOYOTA, LICENSE AGREEMENT TMS1002
  106. REMOVE COUNTER DRIVEN GEAR REAR TAPERED ROLLER BEARING (OUTER RACE)
    1. GTY1062628Courtesy of © TOYOTA, LICENSE AGREEMENT TMS1002
      1. Using SST, remove the counter driven gear rear tapered roller bearing (outer race) from the automatic transaxle case sub-assembly.
        • SST: 09308-36010
        NOTE:

        Be careful not to damage the automatic transaxle case sub-assembly.

        HINT:

        Align the claw of SST with the indentation of the automatic transaxle case sub-assembly when removing the parts.

  107. REMOVE COUNTER DRIVEN GEAR REAR TAPERED ROLLER BEARING (INNER RACE)
    1. GTY1061706Courtesy of © TOYOTA, LICENSE AGREEMENT TMS1002
      1. Using SST, remove the counter driven gear rear tapered roller bearing (inner race) from the pinion and counter driven gear sub-assembly.
        • SST: 09950-40011
          1. 09951-04010
          2. 09952-04010
          3. 09953-04030
          4. 09954-04010
          5. 09955-04011
          6. 09957-04010
          7. 09958-04011
        • SST: 09950-60011
          1. 09951-00310
        NOTE:

        Because SST is attached to the roller portion, there is a possibility that the roller portion could break and SST could come off before the counter driven gear rear tapered roller bearing (inner race) comes off.

      2. If the roller portion breaks and SST comes off, reattach SST to the inner race in the position shown in the illustration, and continue removing the parts.
        • SST: 09950-40011
          1. 09951-04010
          2. 09952-04010
          3. 09953-04030
          4. 09954-04010
          5. 09955-04011
          6. 09957-04010
          7. 09958-04011
        • SST: 09950-60011
          1. 09951-00310
  108. REMOVE COUNTER DRIVEN GEAR FRONT TAPERED ROLLER BEARING (OUTER RACE)
    1. GTY1062466Courtesy of © TOYOTA, LICENSE AGREEMENT TMS1002
      1. Using SST, remove the counter driven gear front tapered roller bearing (outer race) and pinion and counter driven gear shim from the transaxle housing.
        • SST: 09308-36010
        NOTE:

        Be careful not to damage the transaxle housing.

        HINT:

        Align the claw of SST with the indentation of the transaxle housing when removing the parts.

  109. REMOVE COUNTER DRIVEN GEAR FRONT TAPERED ROLLER BEARING (INNER RACE)
    1. GTY1062320Courtesy of © TOYOTA, LICENSE AGREEMENT TMS1002
      1. Using SST, remove the counter driven gear front tapered roller bearing (inner race) from the pinion and counter driven gear sub-assembly.
        • SST: 09950-00020
        • SST: 09950-00030
        • SST: 09950-60011
          1. 09951-00380
  110. REMOVE FRONT DIFFERENTIAL CASE REAR TAPERED ROLLER BEARING (OUTER RACE)
    Refer to PROCEDURE - Step 1
  111. REMOVE FRONT DIFFERENTIAL CASE REAR TAPERED ROLLER BEARING (INNER RACE)
    Refer to PROCEDURE - Step 2
  112. REMOVE FRONT DIFFERENTIAL CASE FRONT TAPERED ROLLER BEARING (OUTER RACE)
    Refer to PROCEDURE - Step 1
  113. REMOVE FRONT DIFFERENTIAL CASE FRONT TAPERED ROLLER BEARING (INNER RACE)
    Refer to PROCEDURE - Step 4
scientia non olet · About LEMON Manuals
