Removal [11/2021 - ]: Procedure
- REMOVE FRONT FENDER FRONT SPLASH SHIELD LH
Refer to PROCEDURE - Step 8 [11/2021 - 03/2024] , or refer to PROCEDURE - Step 8 [03/2024 - ]
- REMOVE FRONT FENDER FRONT SPLASH SHIELD RH
Refer to PROCEDURE - Step 9 [11/2021 - 03/2024] , or refer to PROCEDURE - Step 9 [03/2024 - ]
- REMOVE NO. 1 ENGINE UNDER COVER
Refer to PROCEDURE - Step 10 [11/2021 - 03/2024] , or refer to PROCEDURE - Step 10 [03/2024 - ]
- REMOVE NO. 2 ENGINE UNDER COVER ASSEMBLY
Refer to PROCEDURE - Step 11 [11/2021 - 03/2024] , or refer to PROCEDURE - Step 11 [03/2024 - ]
- DRAIN ENGINE COOLANT
Refer to PROCEDURE - Step 4
- REMOVE FRONT BUMPER ASSEMBLY
for Sport Package: Refer to REMOVAL [11/2021 - 03/2024] , or refer to REMOVAL [03/2024 - ]
except Sport Package: Refer to REMOVAL [11/2021 - 03/2024] , or refer to REMOVAL [03/2024 - ]
- REMOVE FRONT NO. 2 BUMPER ENERGY ABSORBER
Refer to PROCEDURE - Step 45 [11/2021 - 03/2022] , or refer to PROCEDURE - Step 46 [03/2022 - ]
- REMOVE FRONT BUMPER REINFORCEMENT SUB-ASSEMBLY
Refer to PROCEDURE - Step 50 [11/2021 - 03/2022] , or refer to PROCEDURE - Step 51 [03/2022 - ]
- REMOVE HEADLIGHT ASSEMBLY LH
for LED Type Turn Signal Light: Refer to REMOVAL [11/2021 - ]
for Bulb Type Turn Signal Light: Refer to REMOVAL [11/2021 - ]
- REMOVE HEADLIGHT ASSEMBLY RH
- Use the same procedure as for the LH side.
- REMOVE INLET AIR CLEANER ASSEMBLY
Refer to PROCEDURE - Step 4
- REMOVE HOOD SUPPORT TENSION SPRING
Refer to PROCEDURE - Step 3 [11/2021 - 03/2022] , or refer to PROCEDURE - Step 3 [03/2022 - ] - REMOVE HOOD LOCK CONTROL COVER
Refer to PROCEDURE - Step 8 [11/2021 - 03/2022] , or refer to PROCEDURE - Step 8 [03/2022 - ]
- DISCONNECT HOOD LOCK CONTROL CABLE AND LEVER SET
Refer to PROCEDURE - Step 9 [11/2021 - 03/2022] , or refer to PROCEDURE - Step 9 [03/2022 - ]
- REMOVE HOOD LOCK CONTROL JUNCTION ASSEMBLY
Refer to PROCEDURE - Step 10 [11/2021 - 03/2022] , or refer to PROCEDURE - Step 10 [03/2022 - ]
- REMOVE HOOD LOCK ASSEMBLY LH
Refer to PROCEDURE - Step 11 [11/2021 - 03/2022] , or refer to PROCEDURE - Step 11 [03/2022 - ]
- REMOVE HOOD LOCK ASSEMBLY WITH COURTESY LIGHT SWITCH
Refer to PROCEDURE - Step 12 [11/2021 - 03/2022] , or refer to PROCEDURE - Step 12 [03/2022 - ]
- REMOVE THERMISTOR ASSEMBLY
Refer to REMOVAL [11/2021 - ]
- REMOVE NO. 1 RADIATOR AIR GUIDE LH
- REMOVE NO. 1 RADIATOR AIR GUIDE RH
- REMOVE UPPER RADIATOR SUPPORT SUB-ASSEMBLY

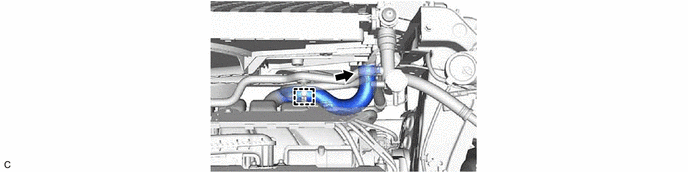

- DISCONNECT NO. 5 WATER BY-PASS HOSE

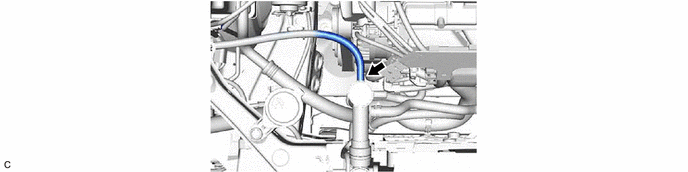

- DISCONNECT NO. 6 WATER BY-PASS HOSE
- DISCONNECT NO. 1 RADIATOR HOSE
- DISCONNECT NO. 2 RADIATOR HOSE
- REMOVE RADIATOR ASSEMBLY
*a Lock Lever - - - Disengage the claw and raise the lock lever to disconnect the cooling fan motor connector as shown in the illustration.NOTE:
After disconnecting the cooling fan motor connector, make sure that dirt, water or other foreign matter does not contact the connecting parts of the cooling fan motor connector.
- Disengage the 2 clamps to disconnect the wire harness from the fan with motor assembly.
- Disengage the claw and raise the lock lever to disconnect the cooling fan motor connector as shown in the illustration.
- Disengage the 2 claws.
- Disengage the 2 guides to separate the cooler condenser assembly from the radiator assembly.NOTE:
Make sure not to damage the cooler condenser assembly or radiator assembly when separating the cooler condenser assembly.
- Remove the radiator assembly with the fan with motor assembly from the vehicle body.NOTE:
Do not apply excessive force to the cooler condenser assembly or pipe when removing the radiator assembly with the fan with motor assembly.
- Disengage the 2 claws.
- Disengage the 2 guides to remove the fan with motor assembly from the radiator assembly.NOTE:
Do not damage the radiator assembly when removing the fan with motor assembly.
- REMOVE RADIATOR SUPPORT CUSHION
- REMOVE LOWER RADIATOR SUPPORT
