Removal [11/2021 - ]: Procedure

WARNING: This page is about a different car, the 2025 Lexus NX 250, 2024 Lexus NX 250, 2023 Lexus NX 250, and 2022 Lexus NX 250. However, it is still accessible from the selected car via links, so may be relevant.

DRAIN ENGINE COOLANT
Refer to REPLACEMENT [11/2021 - ]
REMOVE RADIATOR UPPER AIR GUIDE PLATE
Refer to PROCEDURE - Step 1 [11/2021 - 03/2024] , or refer to PROCEDURE - Step 1 [03/2024 - ]

REMOVE NO. 1 ENGINE COVER SUB-ASSEMBLY

Refer to PROCEDURE - Step 23 [11/2021 - 03/2024] , or refer to PROCEDURE - Step 23 [03/2024 - ]

REMOVE INLET AIR CLEANER ASSEMBLY

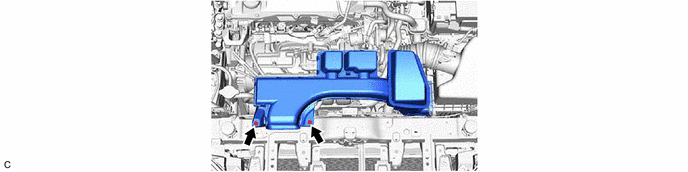

GTY1076702

Courtesy of © TOYOTA, LICENSE AGREEMENT TMS1002

DISCONNECT VACUUM HOSE

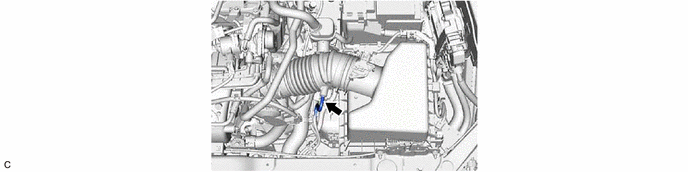

GTY1077486

Courtesy of © TOYOTA, LICENSE AGREEMENT TMS1002

DISCONNECT NO. 2 VENTILATION HOSE

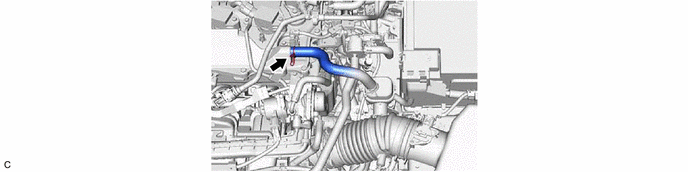

GTY1077485

Courtesy of © TOYOTA, LICENSE AGREEMENT TMS1002

REMOVE AIR CLEANER ASSEMBLY WITH AIR CLEANER HOSE

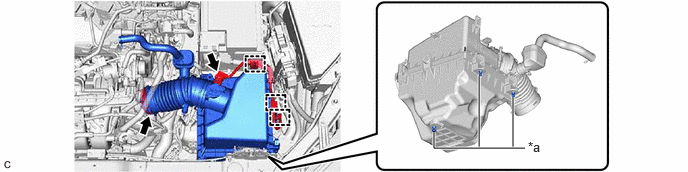

GTY1076263

Courtesy of © TOYOTA, LICENSE AGREEMENT TMS1002

*a

Pin

-

-

DISCONNECT NO. 6 WATER BY-PASS HOSE

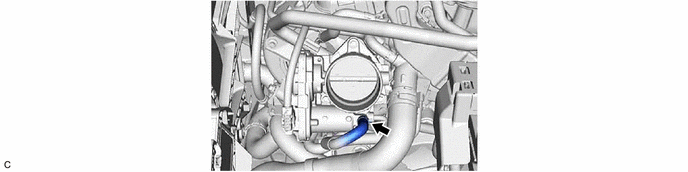

GTY1076691

Courtesy of © TOYOTA, LICENSE AGREEMENT TMS1002

SEPARATE THROTTLE BODY WITH MOTOR ASSEMBLY

GTY1077331

Courtesy of © TOYOTA, LICENSE AGREEMENT TMS1002

Disconnect the throttle body with motor assembly connector.
Using an 8 mm socket wrench, remove the 3 bolts and separate the throttle body with motor assembly from the intake manifold.

DISCONNECT NO. 5 WATER BY-PASS HOSE

NOTE:

If the throttle body with motor assembly has been struck or dropped, replace it.

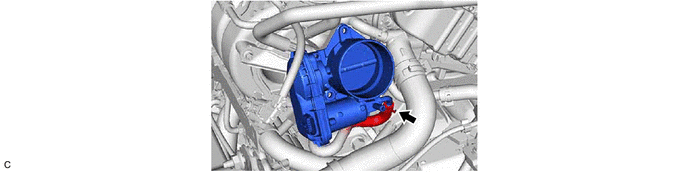

GTY1076689

Courtesy of © TOYOTA, LICENSE AGREEMENT TMS1002

REMOVE THROTTLE BODY GASKET

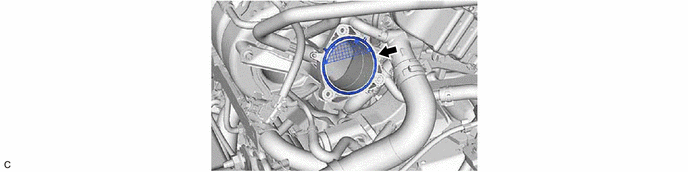

GTY1077478

Courtesy of © TOYOTA, LICENSE AGREEMENT TMS1002
