Installation [09/2023 - ]: Procedure

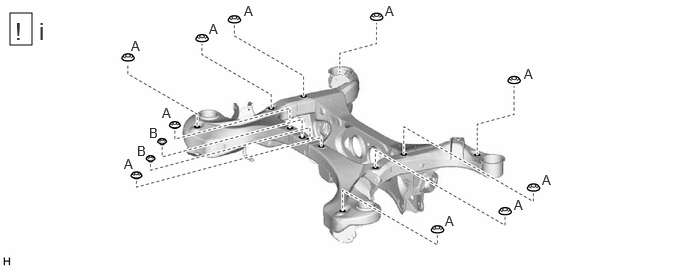

- INSTALL HOLE PLUG
- TEMPORARILY INSTALL REAR SUSPENSION MEMBER FRONT BODY MOUNTING CUSHION LH
*a View from top - - Front of the vehicle Right of the vehicle - Temporarily attach a new rear suspension member front body mounting cushion LH to the rear suspension member sub-assembly in the direction shown in the figure.NOTE:
- The rear suspension member front body mounting cushion LH is installed in the correct direction.
- Do not apply lubricant to the outer sleeve of the rear suspension member front body mounting cushion LH.
- Temporarily attach a new rear suspension member front body mounting cushion LH to the rear suspension member sub-assembly in the direction shown in the figure.
- INSTALL REAR SUSPENSION MEMBER FRONT BODY MOUNTING CUSHION LH

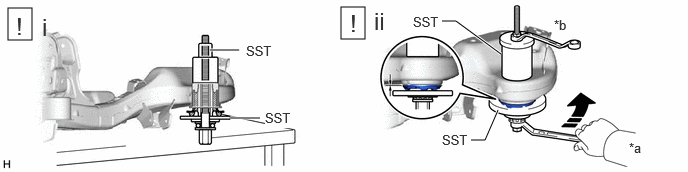

*a Turn *b Hold - Install the SST as shown.
- SST: 09830-10010
- 09830-01010
- 09830-01020
- 09830-01040
- 09830-01050
- SST: 09570-24011
NOTE:Before using SST, apply molybdenum grease to the center bolt of SST.
- SST: 09830-10010
- Using SST, press the rear suspension member front body mounting cushion LH into the rear suspension member sub-assembly until there is no gap at the position shown in the illustration.
- SST: 09830-10010
- 09830-01010
- 09830-01020
- 09830-01040
- 09830-01050
- SST: 09570-24011
NOTE:If the rear suspension member sub-assembly is scratched, apply chassis black to the scratched areas.
- SST: 09830-10010
- Install the SST as shown.
- TEMPORARILY INSTALL REAR SUSPENSION MEMBER FRONT BODY MOUNTING CUSHION RH
*a View from top - - Front of the vehicle Right of the vehicle - Temporarily attach a new rear suspension member front body mounting cushion RH to the rear suspension member sub-assembly in the direction shown in the figure.NOTE:
- The rear suspension member front body mounting cushion RH is installed in the correct direction.
- Do not apply lubricant to the outer sleeve of the rear suspension member front body mounting cushion RH.
- Temporarily attach a new rear suspension member front body mounting cushion RH to the rear suspension member sub-assembly in the direction shown in the figure.
- INSTALL REAR SUSPENSION MEMBER FRONT BODY MOUNTING CUSHION RH
- TEMPORARILY INSTALL REAR SUSPENSION MEMBER REAR BODY MOUNT CUSHION LH
*a View from underneath - - Front of the vehicle Right of the vehicle - Confirm the installation direction and temporarily install a new rear suspension member rear body mount cushion LH.NOTE:
- Position the rear suspension member rear body mount cushion LH in the correct direction.
- Do not apply lubricant to the outer sleeve of the rear suspension member rear body mount cushion LH.
- Confirm the installation direction and temporarily install a new rear suspension member rear body mount cushion LH.
- INSTALL REAR SUSPENSION MEMBER REAR BODY MOUNT CUSHION LH

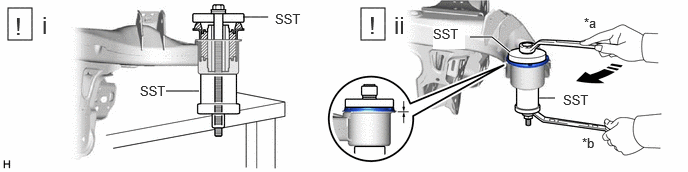

*a Turn *b Hold - Install the SST as shown.
- SST: 09710-28031
- 09711-02030
- 09711-02040
- 94622-51200
- SST: 09950-60021
- 09951-00720
- 09951-00890
NOTE:Before using SST, apply molybdenum grease to the center bolt of SST.
- SST: 09710-28031
- Using SST, press the rear suspension member rear body mount cushion LH into the rear suspension member sub-assembly until there is no gap in the position shown.
- SST: 09710-28031
- 09711-02030
- 09711-02040
- 94622-51200
- SST: 09950-60021
- 09951-00720
- 09951-00890
NOTE:If the rear suspension member sub-assembly is scratched, apply chassis black to the scratched areas.
- SST: 09710-28031
- Install the SST as shown.
- TEMPORARILY INSTALL REAR SUSPENSION MEMBER REAR BODY MOUNT CUSHION RH
*a View from underneath - - Front of the vehicle Right of the vehicle - Confirm the installation direction and temporarily install a new rear suspension member rear body mount cushion RH.NOTE:
- Position the rear suspension member rear body mount cushion RH in the correct direction.
- Do not apply lubricant to the outer sleeve of the rear suspension member rear body mount cushion RH.
- Confirm the installation direction and temporarily install a new rear suspension member rear body mount cushion RH.
- INSTALL REAR SUSPENSION MEMBER REAR BODY MOUNT CUSHION RH
- INSTALL REAR LOWER REAR SUSPENSION MEMBER STOPPER
- INSTALL REAR SUSPENSION MEMBER LOWER STOPPER RETAINER LH
- INSTALL REAR SUSPENSION MEMBER LOWER STOPPER RETAINER RH
- INSTALL WIRE HARNESS CLAMP BRACKET
Torque: 10 N.m (102 kgf/cm, 7 ft.lbf)
- INSTALL REAR UPPER NO. 2 CONTROL ARM ASSEMBLY LH
Refer to PROCEDURE - Step 1 [09/2023 - 12/2023] , or refer to PROCEDURE - Step 1 [12/2023 - ] - INSTALL REAR UPPER NO. 2 CONTROL ARM ASSEMBLY RH
- INSTALL REAR UPPER CONTROL ARM ASSEMBLY LH
Refer to PROCEDURE - Step 2 [09/2023 - 12/2023] , or refer to PROCEDURE - Step 2 [12/2023 - ] - INSTALL REAR UPPER CONTROL ARM ASSEMBLY RH
- INSTALL REAR SUSPENSION MEMBER SUB-ASSEMBLY

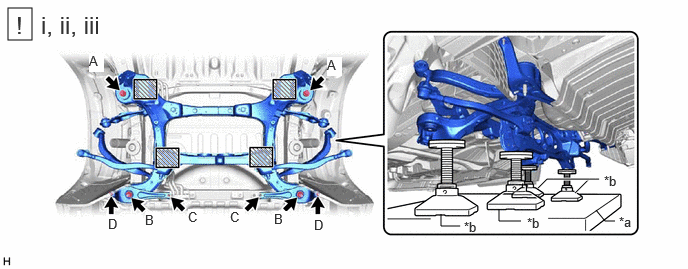

*a Engine Lifter *b Attachment Attachment and Wooden Block Placement Location - - - Using an engine lifter and 4 attachments or equivalent tools, support the rear suspension member sub-assembly as shown in the illustration.WARNING:

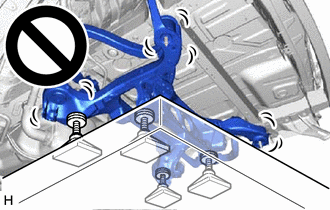

- The rear suspension member sub-assembly is a very heavy component. Make sure that it is supported securely.
- If the rear suspension member sub-assembly is not securely supported, it may drop, resulting in serious injury.
NOTE:- Use attachments or equivalent tools to keep the rear suspension member sub-assembly level.
- Keep supporting the rear suspension member sub-assembly until the installation has been completed.
- Raise the rear suspension member sub-assembly until there is no clearance between the rear suspension member sub-assembly and vehicle.
- Install the rear suspension member sub-assembly with the rear suspension member rear lower brace LH and rear suspension member rear lower brace RH, 2 bolts and 6 nuts.
Bolt A
Torque: 175 N.m (1785 kgf/cm, 129 ft.lbf)
Nut B
Torque: 175 N.m (1785 kgf/cm, 129 ft.lbf)
Nut C
Torque: 18 N.m (184 kgf/cm, 13 ft.lbf)
Nut D
Torque: 18 N.m (184 kgf/cm, 13 ft.lbf)
- Using an engine lifter and 4 attachments or equivalent tools, support the rear suspension member sub-assembly as shown in the illustration.
- INSTALL FRAME WIRE
Torque: 10 N.m (102 kgf/cm, 7 ft.lbf)
- TEMPORARILY INSTALL REAR NO. 2 SUSPENSION ARM ASSEMBLY LH
Refer to PROCEDURE - Step 2 - TEMPORARILY INSTALL REAR NO. 2 SUSPENSION ARM ASSEMBLY RH
- INSTALL REAR NO. 1 DIFFERENTIAL MOUNT CUSHION
Refer to PROCEDURE - Step 1 - INSTALL REAR STABILIZER BAR
Refer to PROCEDURE - Step 1 - INSTALL DIFFERENTIAL CARRIER ASSEMBLY
Refer to INSTALLATION [09/2023 - ]
- INSTALL REAR BUMPER SIDE SEAL LH
- INSTALL REAR BUMPER SIDE SEAL RH
- INSPECT AND ADJUST REAR WHEEL ALIGNMENT
Refer to ADJUSTMENT [09/2023 - 12/2023] , or refer to ADJUSTMENT [12/2023 - ]
- PERFORM INITIALIZATION
Parking Assist Monitor System Refer to CALIBRATION [09/2023 - ] Panoramic View Monitor System Refer to CALIBRATION [09/2023 - ] Advanced Park Refer to CALIBRATION [09/2023 - ] Lighting System (w/ Automatic Headlight Beam Level Control System) Refer to INITIALIZATION [09/2023 - ]
