Installation [09/2023 - ]: Procedure

TEMPORARILY INSTALL REAR NO. 1 SUSPENSION ARM ASSEMBLY

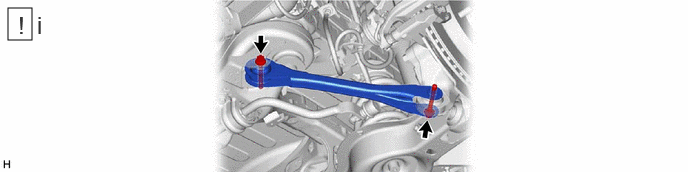

GTY1235148

Courtesy of © TOYOTA, LICENSE AGREEMENT TMS1002

Temporarily install the rear No. 1 suspension arm assembly to the rear axle carrier sub-assembly and rear suspension member sub-assembly with the bolts.

TEMPORARILY INSTALL REAR NO. 2 SUSPENSION ARM ASSEMBLY

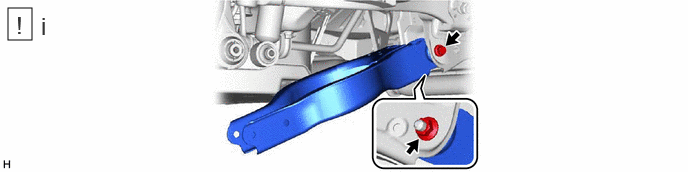

GTY1198099

Courtesy of © TOYOTA, LICENSE AGREEMENT TMS1002

Temporarily install the rear No. 2 suspension arm assembly to the rear suspension member sub-assembly with the bolt and nut.
NOTE:
- Because the nut has its own stopper, do not turn the nut. Tighten the bolt with the nut secured.
- Insert the bolt from the rear of the vehicle.

INSTALL REAR LOWER COIL SPRING INSULATOR
INSTALL REAR COIL SPRING
Refer to INSTALLATION [09/2023 - ]
INSTALL REAR NO. 1 SUSPENSION ARM ASSEMBLY
Torque: 50 N.m (510 kgf/cm, 37 ft.lbf)
INSTALL REAR WHEEL
Refer to INSTALLATION [09/2023 - ]
INSPECT AND ADJUST REAR WHEEL ALIGNMENT
Refer to ADJUSTMENT [09/2023 - 12/2023] , or refer to ADJUSTMENT [12/2023 - ]

PERFORM INITIALIZATION

Parking Assist Monitor System	Refer to CALIBRATION [09/2023 - ]
Panoramic View Monitor System	Refer to CALIBRATION [09/2023 - ]
Advanced Park	Refer to CALIBRATION [09/2023 - ]
Lighting System (w/ Automatic Headlight Beam Level Control System)	Refer to INITIALIZATION [09/2023 - ]
