Installation [09/2023 - ]: Procedure

1. Courtesy of © TOYOTA, LICENSE AGREEMENT TMS1002

   *a

   Identification Mark

   -

   -

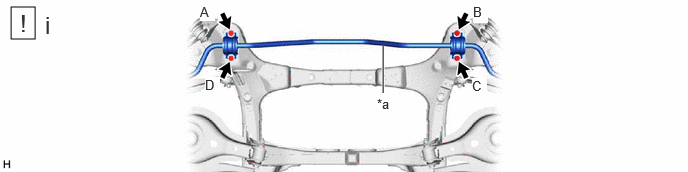

   1. Install the rear stabilizer bar to the rear suspension member sub-assembly with the 4 bolts.

      Torque: 80 N.m (816 kgf/cm, 59 ft.lbf)

      NOTE:

      Temporarily tighten the bolt (A) and then fully tighten the 4 bolts in the order of (B), (C), (D) and (A).

1. Courtesy of © TOYOTA, LICENSE AGREEMENT TMS1002

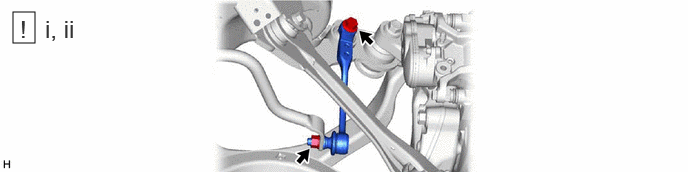

   1. Install the rear stabilizer link assembly LH to the rear upper control arm assembly LH and rear stabilizer bar with the bolt, nuts and rear No. 1 suspension arm washer.

      Bolt

      Torque: 90 N.m (918 kgf/cm, 66 ft.lbf)

      Nut

      Torque: 83 N.m (846 kgf/cm, 61 ft.lbf)

      HINT:

      If the stud bolt turns together with the nut, hold the stud bolt using a socket hexagon wrench (6 mm).

   2. Install the cap to the rear stabilizer link assembly LH.

Torque: 29 N.m (296 kgf/cm, 21 ft.lbf)

Refer to INSTALLATION [09/2023 - ]
