Removal [09/2023 - ]: Procedure

  1. REMOVE COOL AIR INTAKE DUCT SEAL

    Refer to PROCEDURE - Step 1

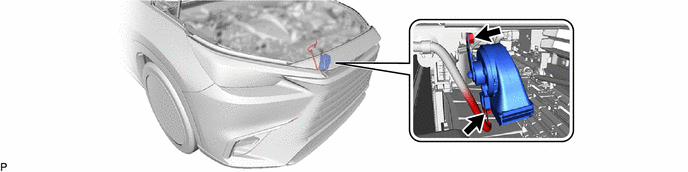

  2. REMOVE HIGH PITCHED HORN ASSEMBLY
    1. GTY1232804Courtesy of © TOYOTA, LICENSE AGREEMENT TMS1002

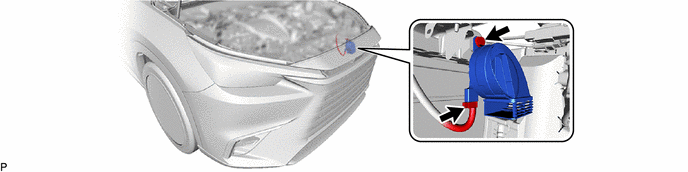

  3. REMOVE LOW PITCHED HORN ASSEMBLY
    1. GTY1232792Courtesy of © TOYOTA, LICENSE AGREEMENT TMS1002
