Removal [12/2023 - ]: Procedure

  1. REMOVE FRONT BUMPER ASSEMBLY
    1. except Sport Package:

      Refer to REMOVAL [09/2023 - ]

    2. for Sport Package:

      Refer to REMOVAL [09/2023 - ]

  2. REMOVE THERMISTOR ASSEMBLY

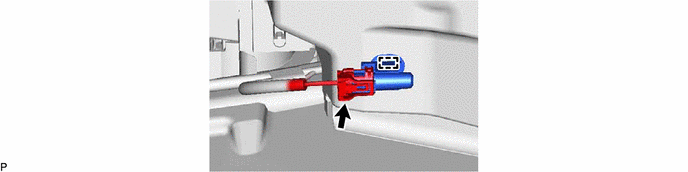

    1. except PHEV Model:
      GTY1239152Courtesy of © TOYOTA, LICENSE AGREEMENT TMS1002

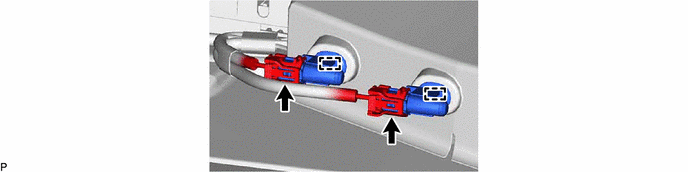

    2. for PHEV Model:
      GTY1241350Courtesy of © TOYOTA, LICENSE AGREEMENT TMS1002
