Removal [12/2023 - ]: Procedure
WARNING: This page is about a different car, the 2024 Lexus TX 550h+. However, it is still accessible from the selected car via links, so may be relevant.
- REMOVE FRONT WHEEL OPENING EXTENSION PAD LH
Refer to PROCEDURE - Step 7
- REMOVE FRONT WHEEL OPENING EXTENSION PAD RH
Refer to PROCEDURE - Step 8
- REMOVE NO. 1 ENGINE UNDER COVER
Refer to PROCEDURE - Step 9
- REMOVE SUSPENSION TOWER DAMPER

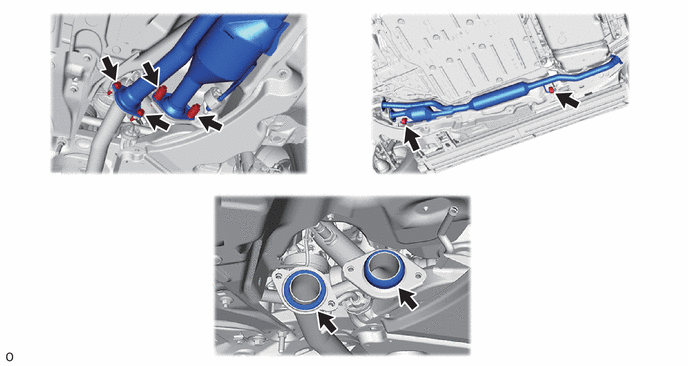

Refer to PROCEDURE - Step 4 - REMOVE TAIL EXHAUST PIPE ASSEMBLY WARNING:
To prevent burns, do not touch the engine, exhaust pipe or other high temperature components while the engine is hot.

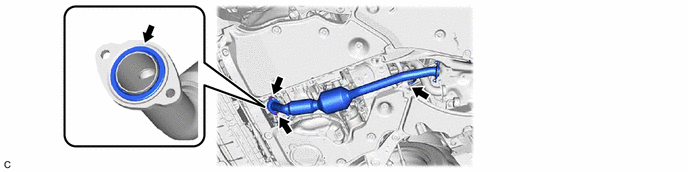

- REMOVE FRONT EXHAUST PIPE ASSEMBLY WARNING:
To prevent burns, do not touch the engine, exhaust pipe or other high temperature components while the engine is hot.
- REMOVE FRONT NO. 2 EXHAUST PIPE SUB-ASSEMBLY WARNING:
To prevent burns, do not touch the engine, exhaust pipe or other high temperature components while the engine is hot.
- REMOVE AIR FUEL RATIO SENSOR (for Bank 2 Sensor 2)
Refer to PROCEDURE - Step 7 - REMOVE FRONT EXHAUST PIPE SUB-ASSEMBLY WARNING:
To prevent burns, do not touch the engine, exhaust pipe or other high temperature components while the engine is hot.
- REMOVE AIR FUEL RATIO SENSOR (for Bank 1 Sensor 2)
Refer to PROCEDURE - Step 3
