Removal [09/2023 - ]: Procedure

  1. REMOVE MAP LIGHT ASSEMBLY

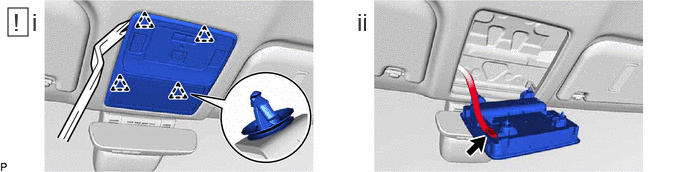

    1. GTY1230692Courtesy of © TOYOTA, LICENSE AGREEMENT TMS1002
      1. Using a moulding remover, disengage the 4 clips.
      2. Disconnect the connector to remove the map light assembly.
